Overview

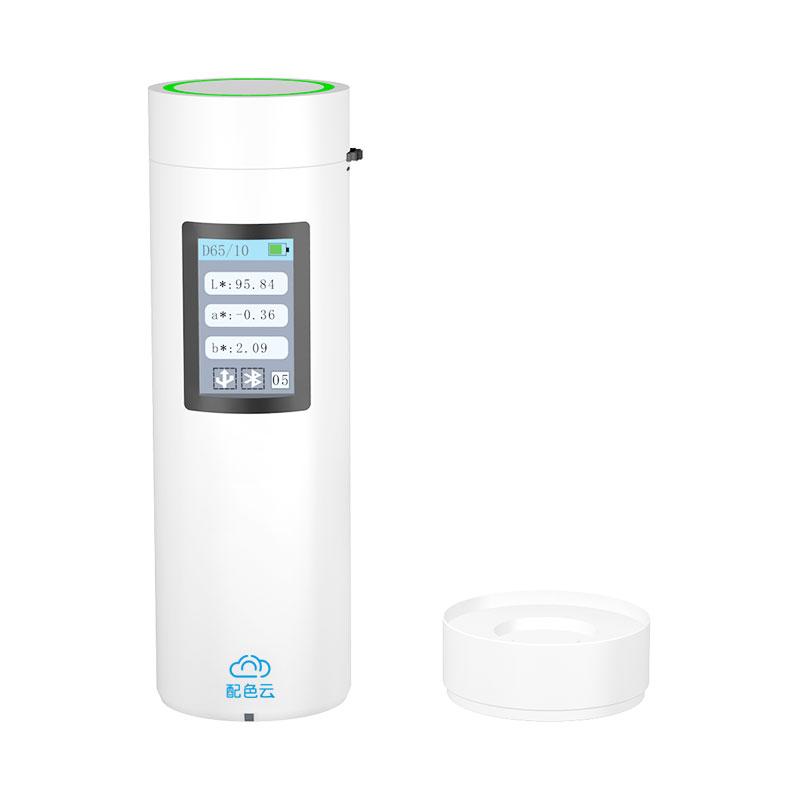

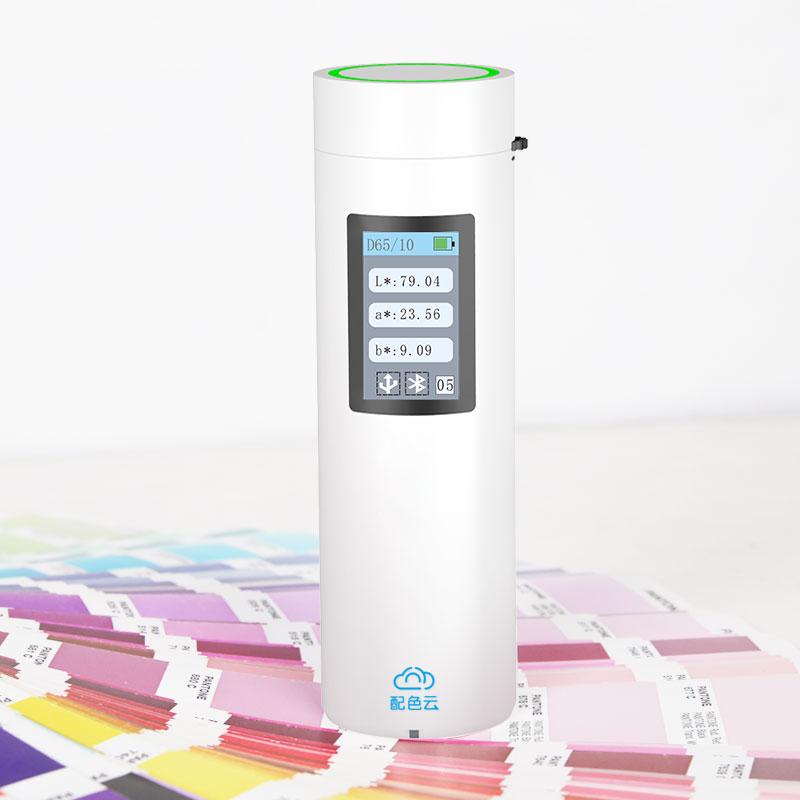

Color scheme cloud color difference treasure series is a PSY01 model product launched by the 3nh brand. It is developed by combining color Sensor with APP, WeChat Mini Program, etc., and has multi-function "smart buttons" and non-contact automatic whiteboard verification functions. It is not only a spectral color difference meter, but also a mobile phone color difference treasure. It is small and portable. It supports Color measurement, Color Chart recognition and search and a variety of function extensions through wireless connection to mobile devices. It is suitable for capturing color inspiration anytime, anywhere.
Features
1. Multifunctional "smart button" design, easy to operate.
2. Professional non-contact automatic whiteboard calibration to ensure measurement accuracy.
3. Compact and portable, easy to carry and use.
4. Wirelessly connect mobile devices to support a variety of functional extensions.
5. Integrated WeChat Mini Program and Cloud Colorschemer studio, suitable for beauty seam color scheme and other industries.
Principle
Color scheme Cloud color difference treasure adopts D/8 lighting mode, diffuse lighting, 8 ° direction reception, including mirror reflection light SCI. Through full light spectrum LED Illuminant and filter spectroscopy technology, combined with CMOS dual-path sensor, the measurement Wavelength range is 400~ 700nm, and the interval is 10nm, to achieve accurate collection and analysis of Color data.
Applications

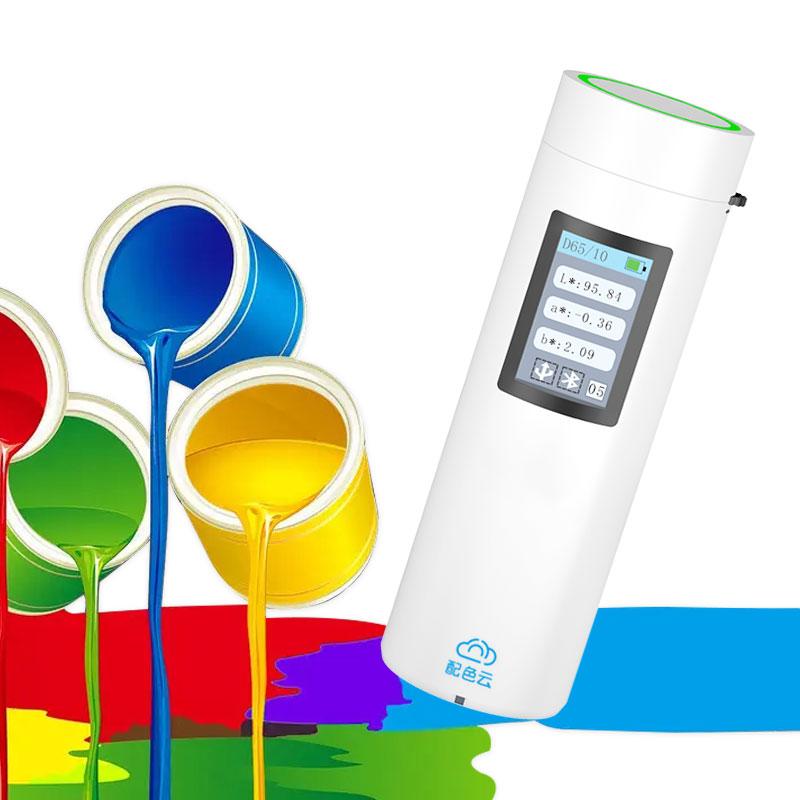

Plastic electronics, paints Coatings, Spinning & weaving garment printing and dyeing, ceramics, beautiful seam color scheme
Standards
CIE No.15、GB/T 3978
Steps
1. Connect the color difference treasure to the mobile phone device wirelessly through Bluetooth.
2. Use "smart buttons" for non-contact automatic whiteboard verification.

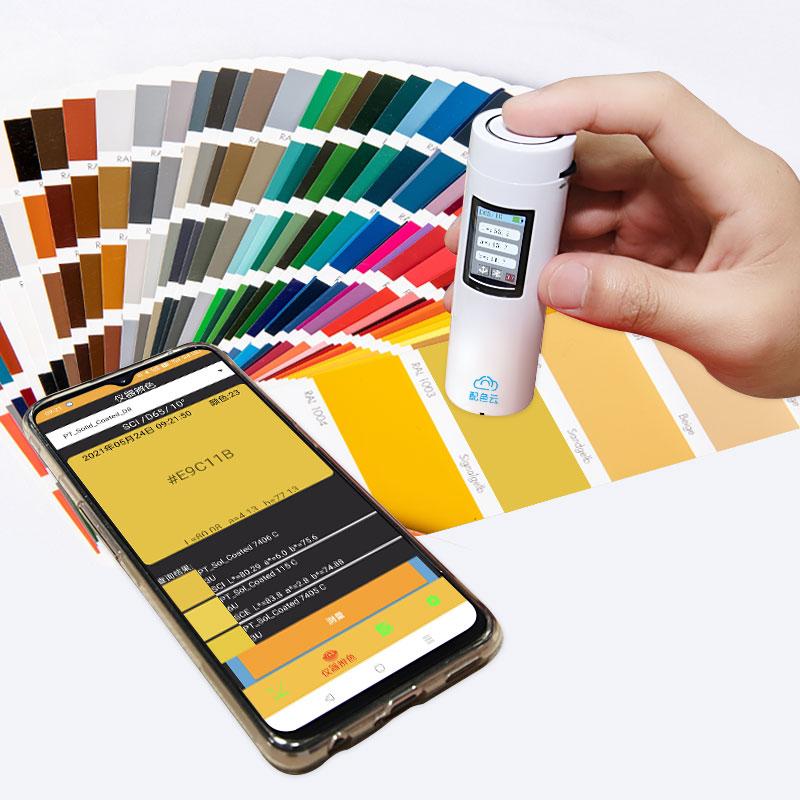

3. Select Measurement mode and align the sample for Color measurement.

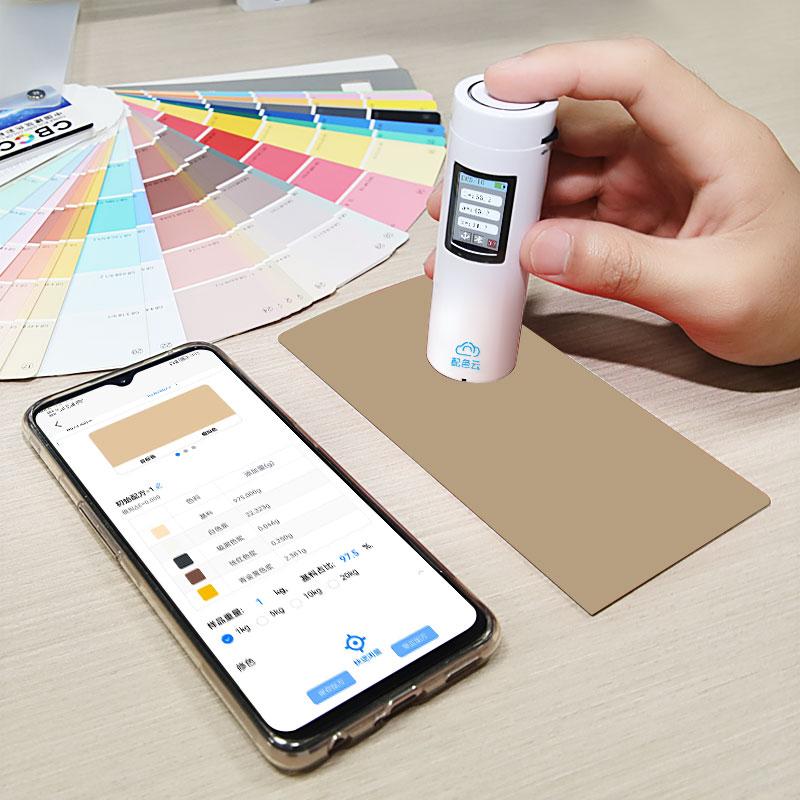

4. View chromatic values, color difference results and Color simulation through APP or WeChat Mini Program.
5. Expand functions as needed, such as Color Chart recognition or Data storage.
Notice
- The operating environment should be kept within the range of 0~ 40 ° C and 0~ 85% RH (no condensation).
Storage environment should avoid temperatures and Humidity conditions outside -20~ 50 ℃.
Make sure the battery is fully charged before use to support continuous testing.
- Regular whiteboard calibration to maintain measurement accuracy.
Avoid use at high altitudes (over 2000m) or in extreme conditions.
