Overview

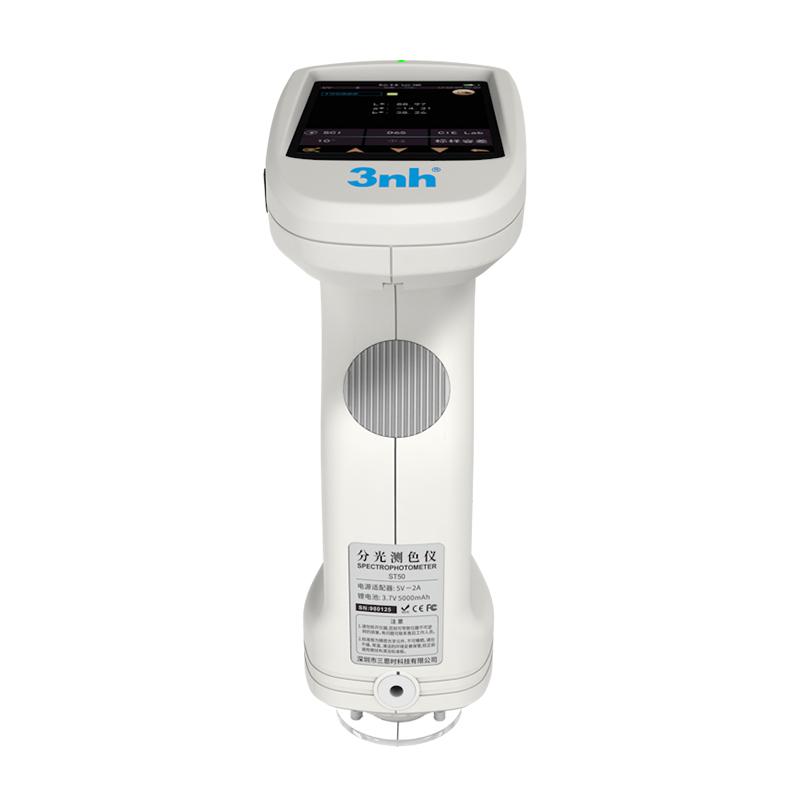

3NH Kutai ST50 (φ 4mm) Colorimeter is the twin sister product of Taishuang TS series. It inherits Taishuang's large-area array Sensor and grating spectroscopy core technology in the field of Color detection, and keenly analyzes the strong and weak rays of light in the 300-1100nm band. The instrument adopts built-in photodiode array (dual row 20 groups) sensors, imported whiteboards, and takes into account Measurement speed and convenience of operation. Repeatability Delta E * ab is easily controlled within 0.03, Inter-instrument Agreement Delta E * ab is controlled within 0.2.
Features
1. Using a large area silicon photodiode array (dual row 20 groups) sensor
2. Built-in photodiode array and imported whiteboard
3. Repeatability Delta E * ab controlled within 0.03
4. Inter-instrument Agreement Delta E * ab within 0.2
5. Single custom measurement caliber
6. Accurate measurement data and stable performance
7. Illuminant life 10 years greater than 1.50 million measurements
8. Battery life 8800 times within 8 hours
9. Support for Multiple Interfaces and Software platforms
Principle
The ST50 Colorimeter uses grating spectroscopy technology to perform Light spectrum analysis at 10nm intervals in the 400~ 700nm Wavelength range through planar grating spectroscopy. The instrument uses D/8 illumination (diffuse illumination, 8 ° direction reception) for SCI/SCE measurement, and simultaneously tests SCI/SCE. Accurate Color measurement is achieved by capturing reflected light signals through a large area silicon photodiode array sensor.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Preheating calibration instrument
2. Measurement mode (single measurement or average measurement 2~ 99 times)
3. Use camera positioning or stabilizer positioning to align the measurement sample
4. Color measurement
5. View the displayed Light spectrum graph/data, sample chromatic value, color difference value/graph, etc
6. Store measurement data or transfer data via interface
Notice
• Operating Ambient Temperature should be in the range of 0~ 40 ℃
• relative humidity should be controlled at 0~ 85% RH (no condensation)
• The use altitude should be less than 2000m
• Storage Ambient Temperature -20~ 50 ℃
Storage environment relative humidity of 0~ 85% RH (no condensation)
• Preheating correction is required before measurement
• Some functions need to be realized through the host computer/APP
