Overview
3NH Kutai ST50 (φ 8mm) Colorimeter is a High Accuracy Color Detection Equipment developed by Thai dual core technology. It adopts large area array Sensor and grating spectroscopy technology to keenly analyze the rays of light in the 300-1100nm band. The instrument has built-in photodiode array sensor and imported whiteboard. Repeatability Delta E * ab is controlled within 0.03, and Inter-instrument Agreement Delta E * ab is controlled within 0.2. Measurement speed and operation convenience are taken into account.
Features
1. Adopt a single custom 8mm measurement diameter
2. Large area silicon photodiode array (dual row 20 groups) inductors
3. Plane grating spectroscopy
4. Simultaneous testing of SCI/SCE
5. Repeatability Delta E * ab within 0.03
6. Inter-instrument Agreement Delta E * ab 0.2
7. Measurement time about 1.5 seconds
8. Combination full light spectrum LED Illuminant, life of 10 years more than 1.50 million measurements
9. TFT True Color 3.5 inch Capacitive Touchscreen
10. Support USB and Bluetooth ® 5.0 Interface
Principle
ST50 Colorimeter uses D/8 illumination mode (diffuse illumination, 8 ° direction reception), through the plane grating spectroscopy technology will ray of light analysis, using a large area silicon photodiode array sensor to receive the reflected light signal in the 400-700nm Wavelength range, while testing SCI and SCE data, accurate calculation of Color parameters.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Turn it on and warm up and correct it.
2. Measurement mode (single measurement or average measurement 2-99 times)

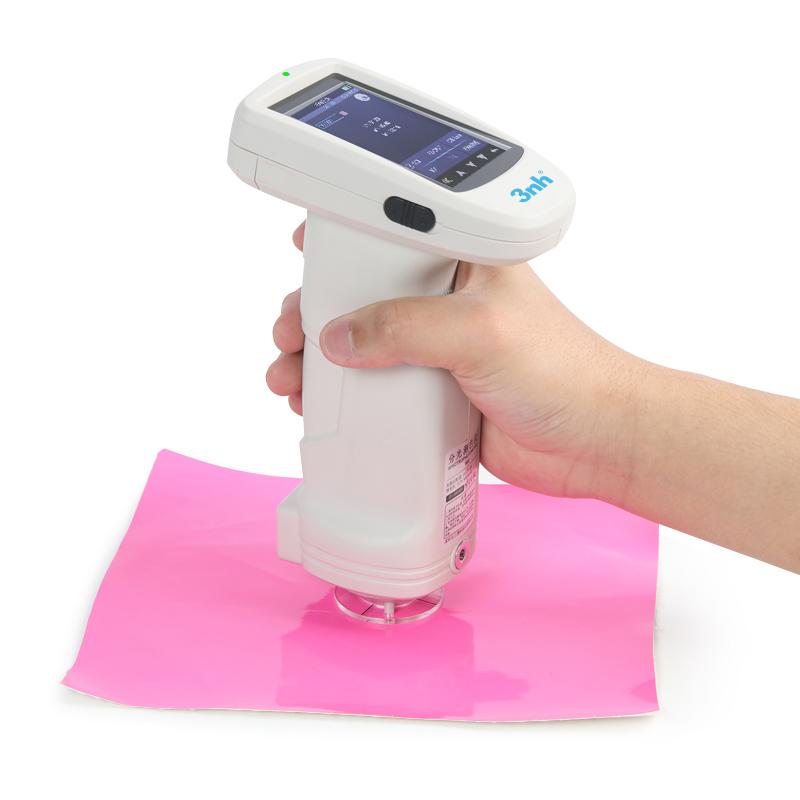

3. Use camera positioning or stabilizer positioning to align the tested sample
4. Trigger measurement, acquire data after about 1.5 seconds
5. View measurement results through Touchscreen
6. Data can be transferred to the supporting software via USB or Bluetooth
Notice
• Operating Ambient Temperature 0~ 40 ℃, relative humidity 0~ 85% RH (no condensation)
• Storage Ambient Temperature -20~ 50 ℃, relative humidity 0~ 85% RH (no condensation)
• The use altitude should be less than 2000m
• Preheating correction is required before measurement
• Some functions need to be realized through the host computer/APP

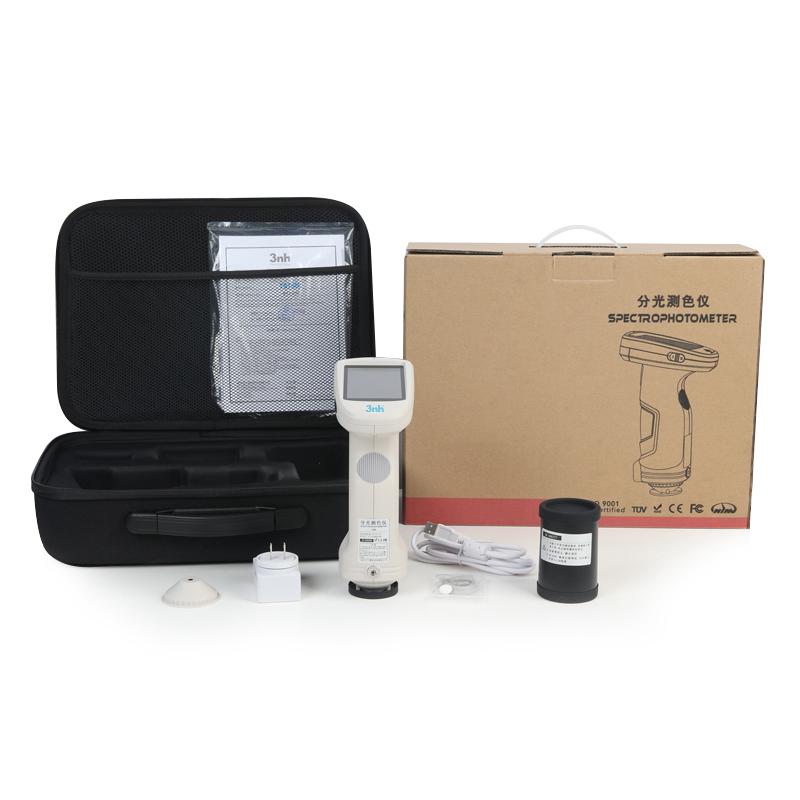

• Accessories such as micro printers and powder test boxes are available
