Overview

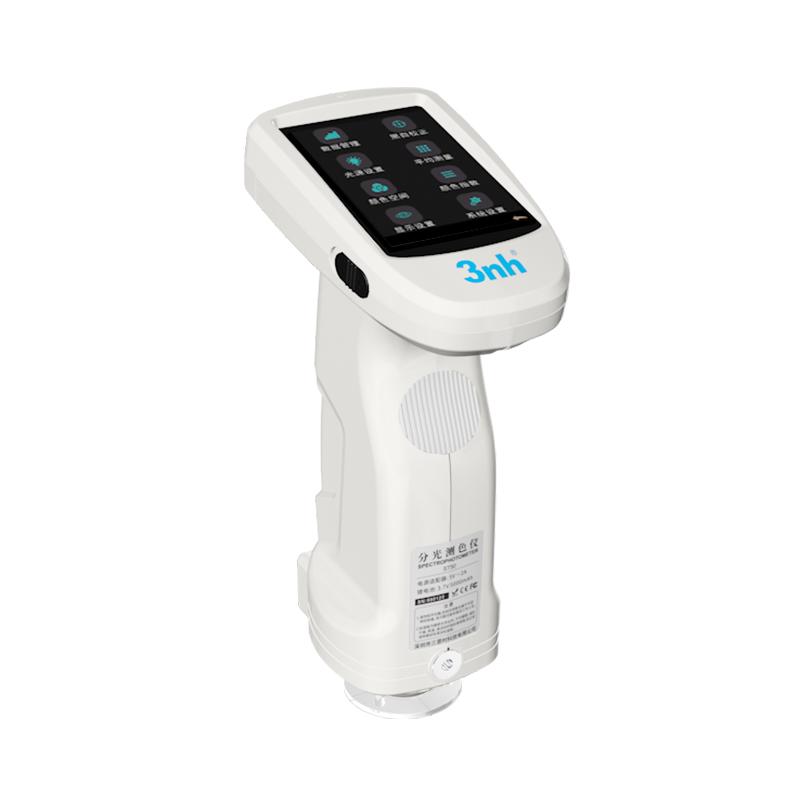

The 3nh ST60 Colorimeter is a High Accuracy Color detection device developed with Thai dual-core technology. It uses large-area array Sensor and grating spectroscopy technology to keenly analyze the rays of light in the 300-1100nm band. The instrument uses built-in photodiode array sensors and imported whiteboards. Repeatability Delta E * ab is controlled within 0.025, Inter-instrument Agreement Delta E * ab is controlled within 0.15, and the measurement data can be used for accurate analysis and transmission of laboratory Color.
Features
1. Using a large area silicon photodiode array (dual row 26 groups) sensor
2. Equipped with 4 measurement diameters (MAV: φ 8mm/φ 10mm; SAV: φ 4mm/φ 5mm)
3. Repeatability Delta E * ab controlled within 0.025
4. Inter-instrument Agreement Delta E * ab within 0.15
5. Simultaneous testing of SCI/SCE
6. Support multiple Color Spaces and Color difference formulas
7. Equipped with camera positioning and stabilizer positioning
8. Battery life 8800 measurements in 8 hours
9. Illuminant life 10 years greater than 1.50 million measurements
10. Support USB and Bluetooth ® 5.0 Interface
Principle
The ST60 Colorimeter uses planar grating spectroscopy to illuminate samples by combining full-spectrum LED Illuminant and UV Illuminant, and uses a large-area silicon photodiode array sensor to receive reflected light signals. Light spectrum analysis is performed at 10nm intervals in the 400~ 700nm Wavelength range to achieve accurate Color measurement.
Applications
Plastic electronics, paints inks, Spinning & weaving garment printing, printing, ceramics, fluorescent sample measurement
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Turn it on and warm up and correct it.
2. Select measurement aperture and Measurement mode
3. Use the camera or stabilizer for sample positioning
4. Single measurement or average measurement (2 to 99 times)
5. View measurement results and Data analysis
6. Transfer data via USB or Bluetooth
Notice
• Operating Ambient Temperature should be controlled within the range of 0~ 40 ℃
• relative humidity must not exceed 85% and no condensation
• The altitude of use should be less than 2000 meters
• Storage Ambient Temperature -20~ 50 ℃
• Avoid operating the instrument in a humid environment
• Periodic instrument calibration to ensure Measurement accuracy
