Overview

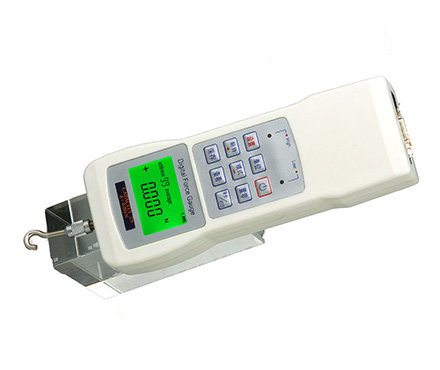

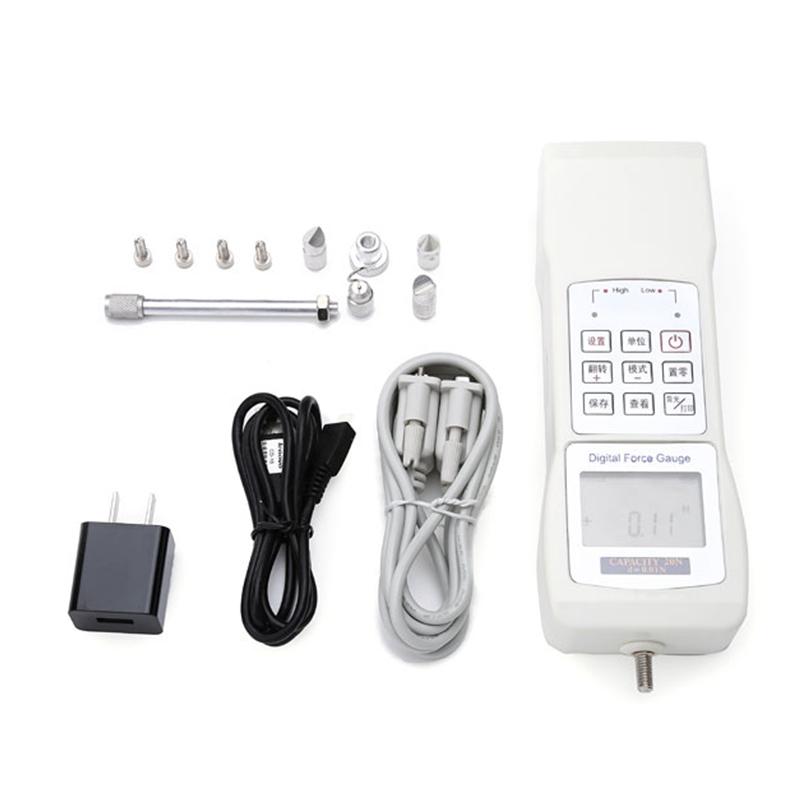

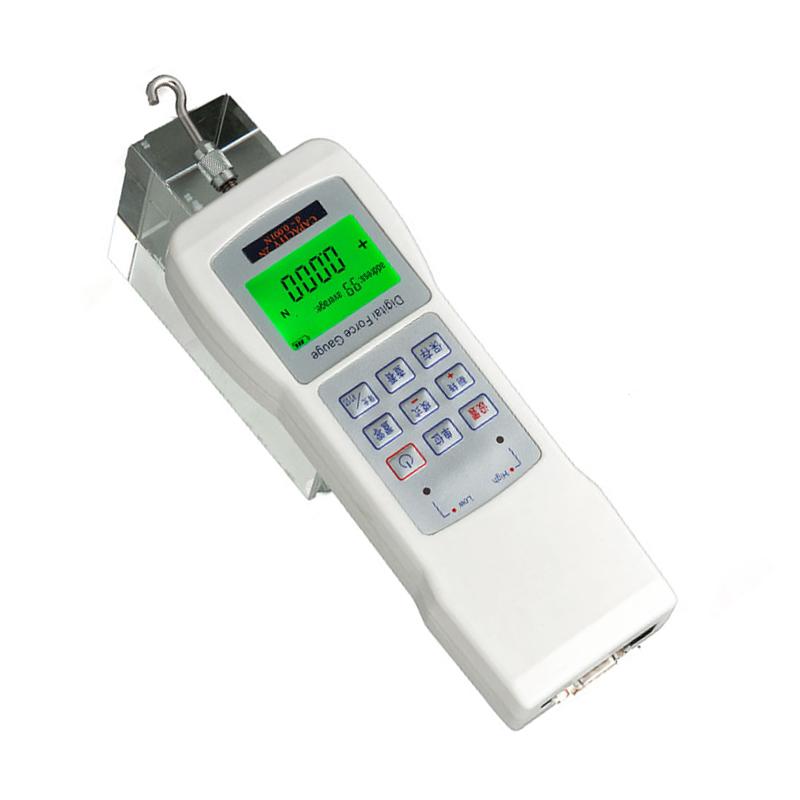

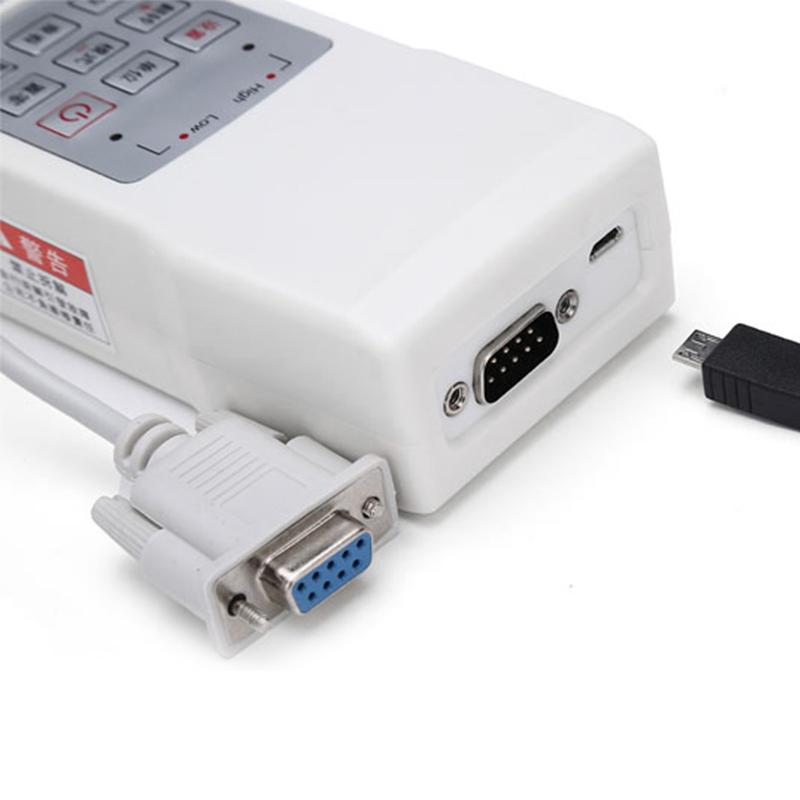

The HG-500 Portable Force Gauge is a general-purpose Portable push-pull load test instrument produced by HBO. It belongs to the HG series digital display Force Gauge, with a maximum measurement load of 500N. The product has the function of Data storage, which can store 99 sets of test data. Measurement accuracy is high and Stability is good. The sampling speed is up to 120Hz, and various units such as N, kgf, and lbf are automatically exchanged. In addition, this series of Force Gauge can be connected to a PC to transmit and store management test data.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120Hz

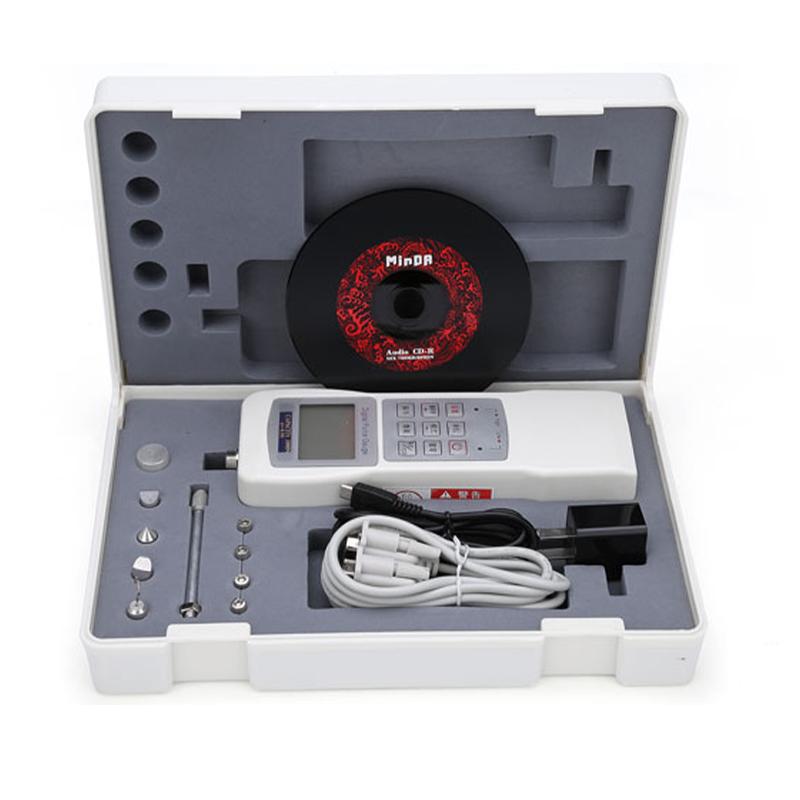

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry

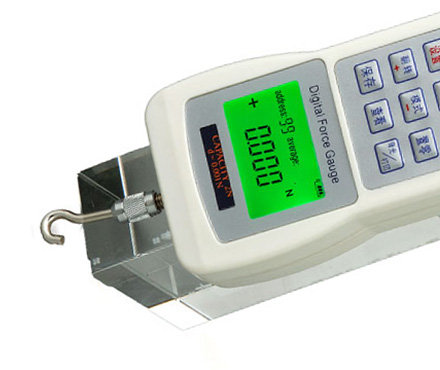

3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HG-500 Portable Force Gauge uses a built-in Sensor to detect push-pull loads and displays measurement results digitally. The instrument converts analog signals to digital signals through ADC conversion, and the sampling speed can reach 120Hz for High Accuracy measurement. Test data can be transferred, stored and managed by connecting to a PC.
Applications
Push-pull load test, insertion force test, failure test of various products
Steps
1. Connect the power supply or ensure that the battery is fully charged
2. Set the test mode as required (real-time force tracking mode, peak holding mode, first peak mode)
3. Set the unit (N, KN, Kgf, gf, lbf, tf)
4. Set the upper and lower limit comparison value, peak holding time, gravity acceleration value and other parameters
5. Carry out the push-pull force test, and the instrument automatically displays the measurement results
6. Test data is automatically stored and can be exported and managed via a PC connection
7. Charge in time after use to ensure next use
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15%~ 80% RH
• Operating Environment should be free of vibration and corrosion
• Pay attention to range protection to avoid overload use
Recharge regularly to extend Battery life
• Use specialized toolboxes for transportation and storage
• Ensure software compatibility when connecting to a PC
