Overview

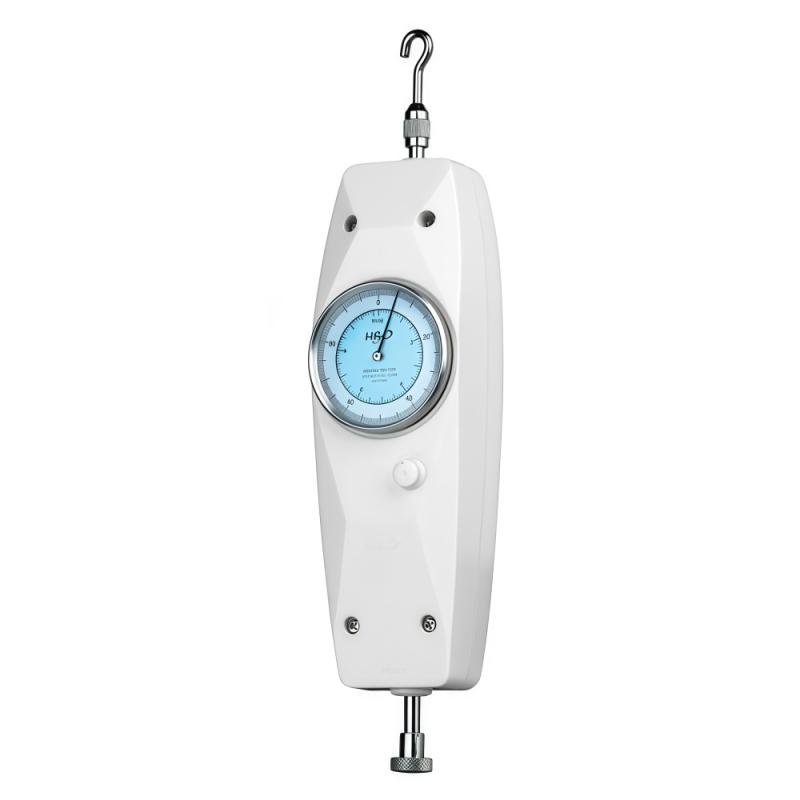

HBO NK-200 Dial Force Gauge is a small volume pressure tension measuring instrument with high Measurement accuracy and easy portability. The product is suitable for applications such as tension and compression load, insertion force test, Destructiveness test, etc. The structure is simple, the operation is convenient, and the maximum Measured value is 200N.
Features
1. Dual display of N and kgf units, no need to convert units
2. Dial Instruction, Easy, Accurate, High Accuracy

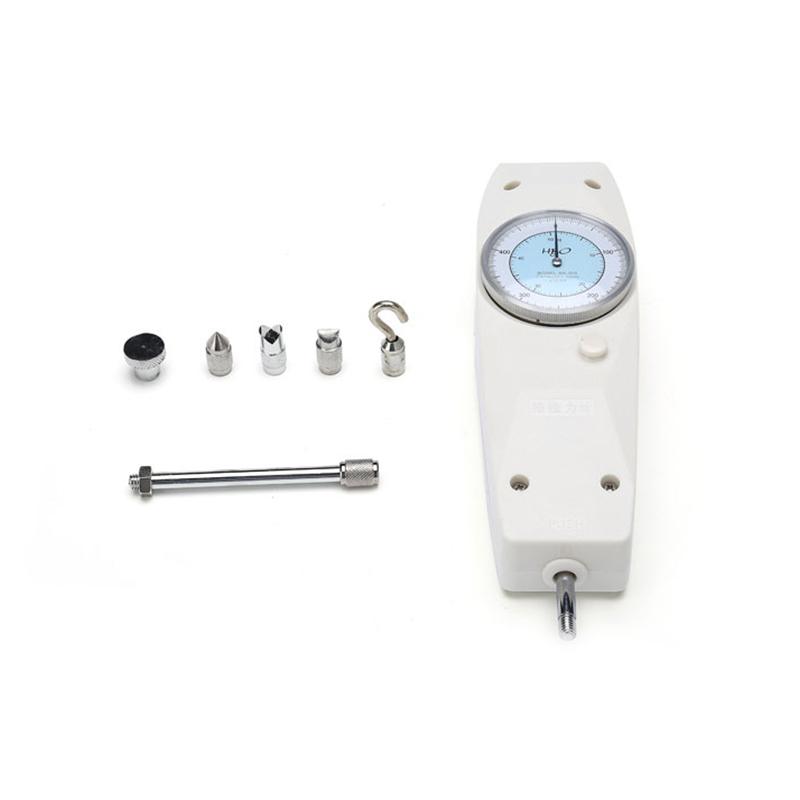

3. Handheld design, compact and easy to operate, can be installed and used on various workbenches, and can be adapted to various fixtures
4. Encasement is reliable and exquisite, easy to transport, easy to store and maintain
5. Freely switch peak hold and load real-time value indication, easy to use
Principle
Dial Force Gauge is a mechanical Force Gauge that indicates the load value through the pointer. When the toggle knob is placed on the continuous load value (TRACK), the pointer will move with the change of the load value; when the toggle knob is placed on the peak load value (PEAK), the pointer will stop at the position of the maximum load value, and the pointer can be reset to zero by pressing the toggle knob.
Steps
1. Install the NK-200 Dial Force Gauge on a suitable machine for measurement
2. When measuring, keep the measured object and Dial Force Gauge in line
3, measurement of load changes: when the switch knob is placed in the continuous load value (TRACK), the pointer changes with the load; when the switch knob is placed in the peak load (PEAK), the pointer stops at the maximum load value position, press the switch knob to return to zero
Notice
• When measuring, keep the measured object and Dial Force Gauge in line, otherwise the reading value is inaccurate
• Environmental requirements No source and corrosion medium around
• Operating temperature 20 ℃ +/- 10 ℃, relative humidity 15%~ 80% RH
