Overview

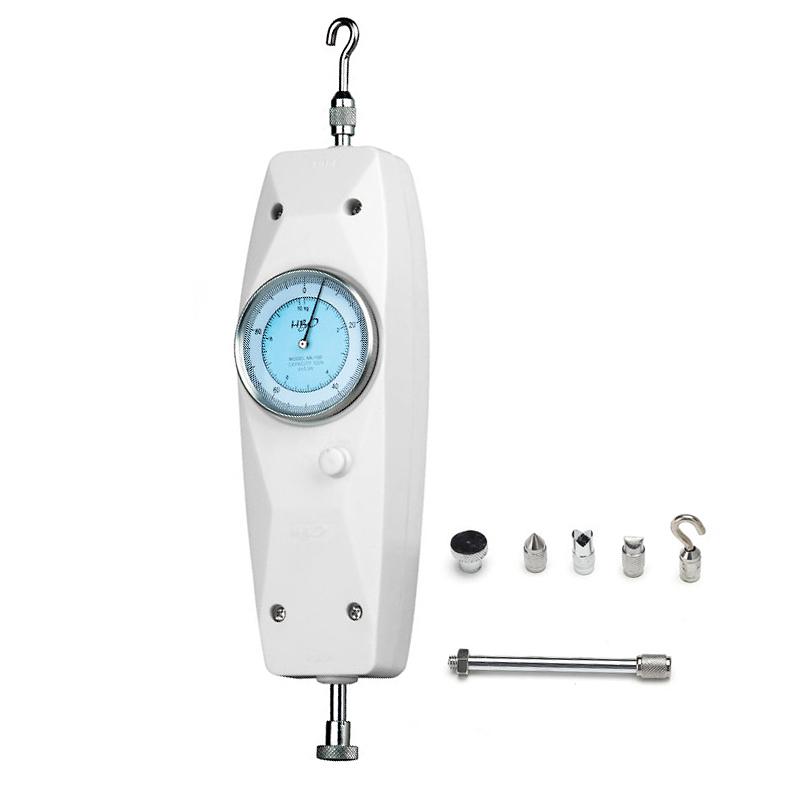

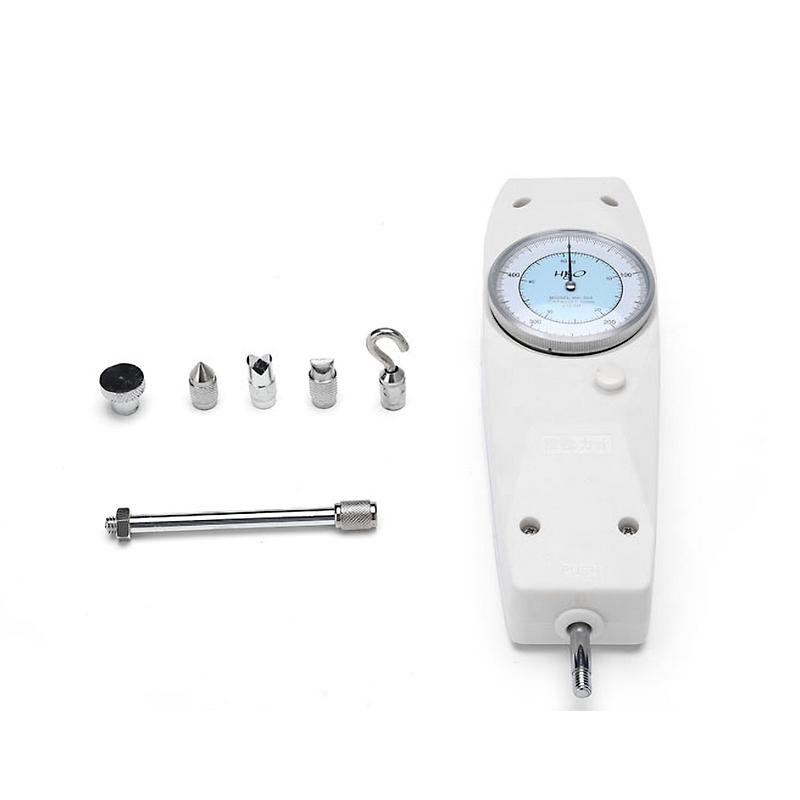

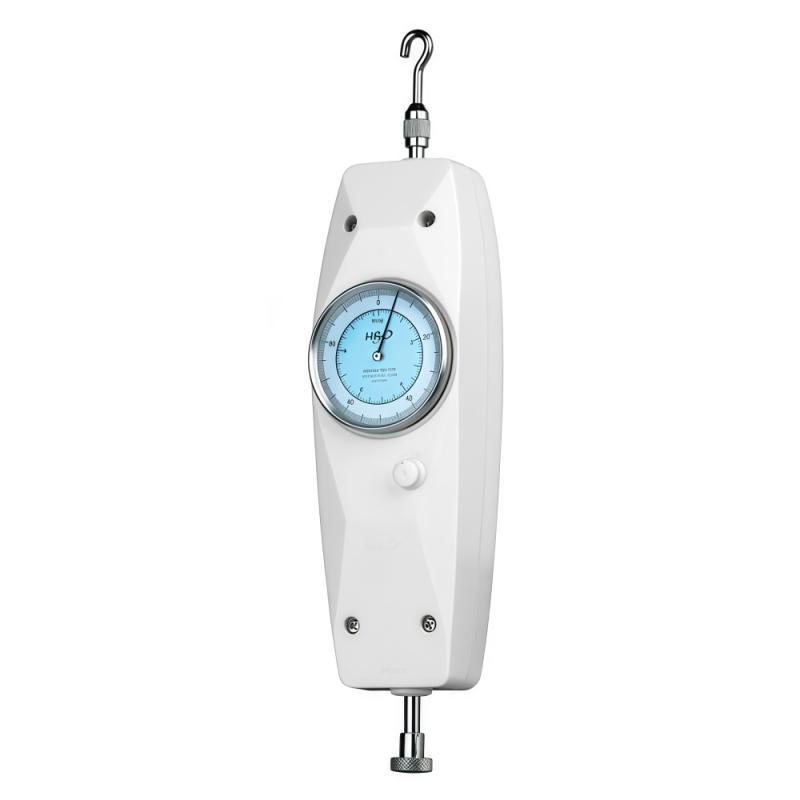

The HBO NK-500 Dial Force Gauge is a small volume pressure tension measuring instrument with high Measurement accuracy and easy portability. The product is suitable for applications such as tension and compression loads, plug-in force testing, Destructiveness testing, etc. The structure is simple, the operation is convenient, and the maximum Measured value is 500N.
Features
1. It can double display N and kgf units without the need to convert units
2. Dial indication, convenient, accurate reading, High Accuracy
3. Handheld design, compact and easy to operate, can be installed and used on various workbenches, and can be adapted to various fixtures

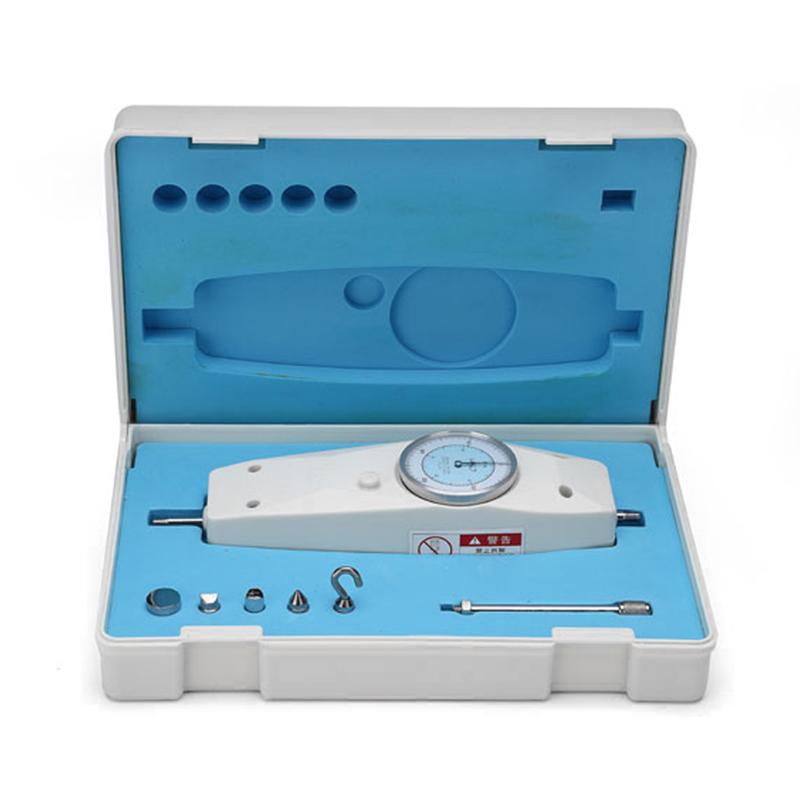

4. Encasement is reliable and exquisite, easy to transport, easy to store and maintain
5. Freely switch peak hold and load real-time value indication, easy to use
Principle
Dial Force Gauge is a mechanical Force Gauge that indicates the Measured value through the pointer. When the toggle knob is placed on the continuous load value (TRACK), the pointer will move with the change of the load value; when the toggle knob is placed on the peak load value (PEAK), the pointer will stop at the maximum load value position, and the pointer can be reset to zero by pressing the toggle knob.
Applications
Tensile and Compressive Load Test, Insertion Force Test, Destructiveness Test
Steps
1. Install the Dial Force Gauge on the appropriate machine for measurement
2. When measuring, keep the measured object and Dial Force Gauge in line
3, measurement load change: switch knob placed in continuous load value (TRACK) when the pointer changes with the load; switch knob placed in peak load (PEAK) when the pointer stops at the maximum load value position, by pressing the switch knob to zero
Notice
• When measuring, keep the measured object and Dial Force Gauge in line, otherwise the reading value is inaccurate
• Environmental requirements No source and corrosion medium around
• Operating temperature 20 ℃ +/- 10 ℃
• relative humidity range of 15%~ 80% RH
