Overview

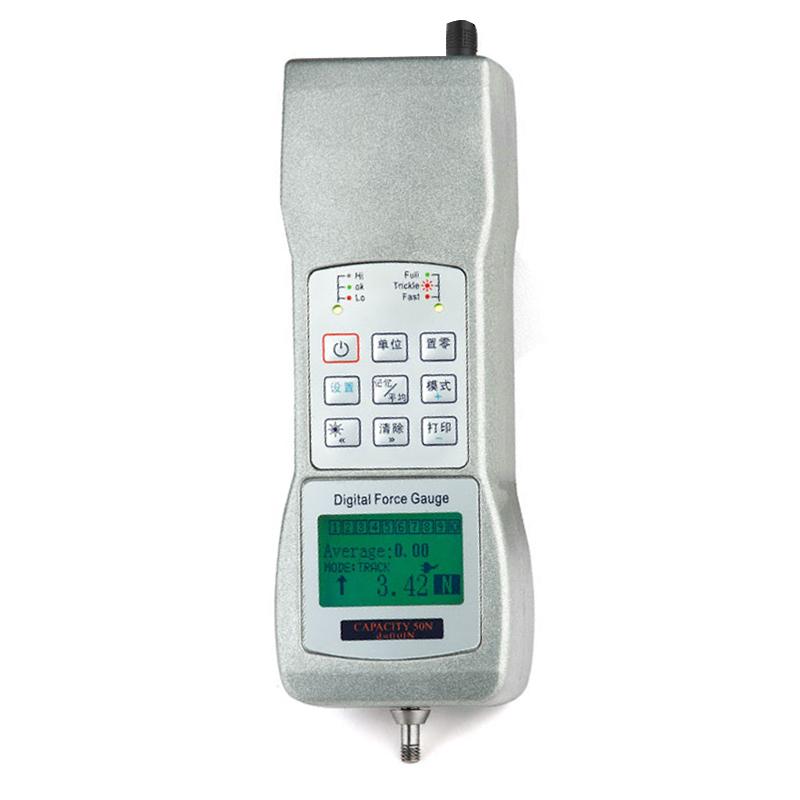

The HBO HF-50 digital tension gauge is an upgrade of the HF series, with a larger data storage capacity of up to 200 sets, and has the function of key action force and rebound test and first peak hold. The product is a Force Gauge with built-in Sensor type, with a maximum Measured value of 50N, which is small in size and easy to carry. As a general-purpose Portable tensile pressure measuring instrument, it adopts electronic Sensor technology, which is suitable for tensile pressure load test, insertion force test, failure test, etc. of various products. It can be combined with machine and fixture to form a small testing machine. It has the advantages of high accuracy, easy operation, high Sensitivity, reliable data, etc., and conforms to the national Measurement verification regulations of JJG working dynamometer. It is widely used in mass detection, physical experiment, engineering test and other fields. It is equipped with special host computer software to connect to the computer to realize data storage, analysis, export, query and printing functions.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees, which is convenient for multi-angle observation
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

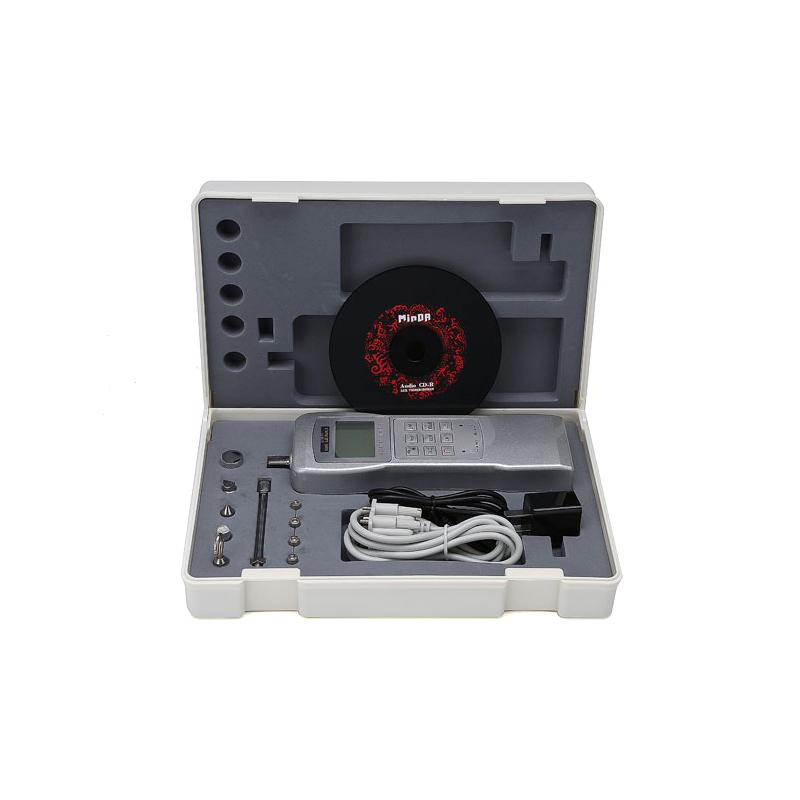

14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging, Safe Charging, Extend Battery life
16. With the company's electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: In addition to automatically obtaining the test results, qualified judgment and batch testing pass rate can be made according to the qualified range of the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
HBO HF-50 digital display tension meter adopts electronic Sensor technology for tensile pressure measurement, detects the applied force value through the built-in Sensor, and processes and displays the data in real time. Combined with the host computer software, it can realize Data storage, analysis and export, and supports a variety of test modes such as real-time tracking, peak holding, etc., to ensure Measurement accuracy and Reliability.
Applications
Push-pull failure test, push-pull load test, insertion force test
Standards
JJG work dynamometer National Measurement verification regulations
Steps

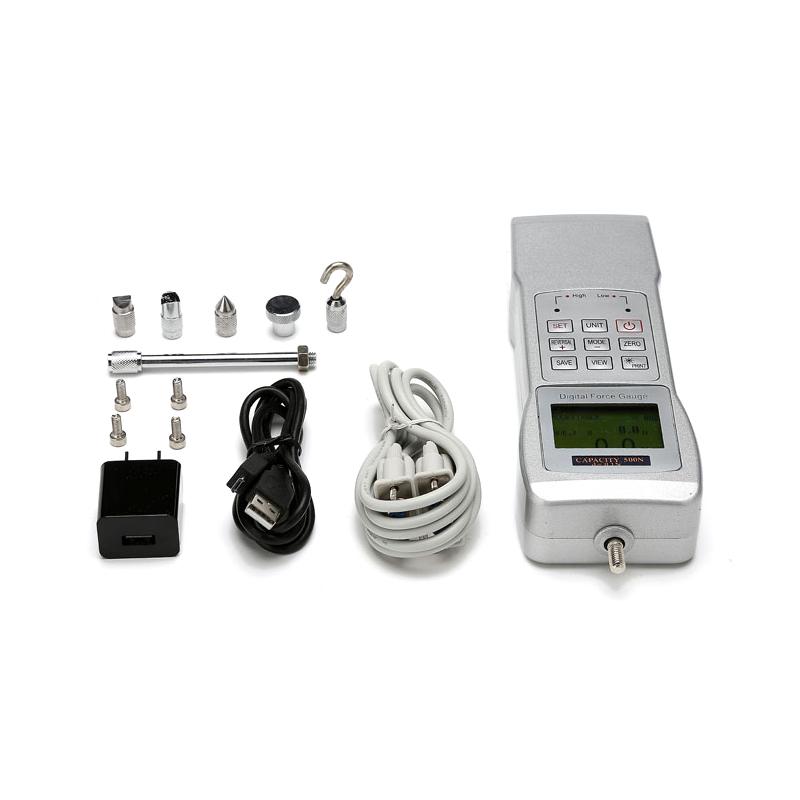

1. Connecting contacts Connecting rods and test fixtures
2. Turn on the power and select the display language and unit
3. Set the test mode as required (e.g. real-time force tracking, peak hold, etc.)
4. Set the upper and lower limit comparison value, peak holding time, gravity acceleration and other parameters
5. Start the test and observe the change of the force value of the display window
6. After the test is completed, the data is automatically stored or exported through the Communication interface
7. Data analysis, query and report generation using PC software
8. After the test, turn off the power and store the instrument properly
Notice
Make sure the instrument has sufficient power before use and avoid operating under low power
* Test environment should be free of vibration and corrosion medium, temperature in the range of 0~ 40 ℃
* Avoid over-range use to prevent damage to Sensors and instruments
* Use the original charger when charging, AC input 220V/50HZ, DC output 5V/1A
* Storage temperature should be kept at -20~ 70 ℃, relative humidity 15%~ 80%
* Periodically calibrate instruments to ensure Measurement accuracy to JJG standards
* Pay attention to mechanical limit protection during operation to prevent accidental overload
Use a dedicated toolbox for transportation and storage to prevent collisions and vibrations
* Communication interface is stable when connecting the computer to avoid data loss
* Set automatic shutdown time to save power and extend Battery life
