Overview

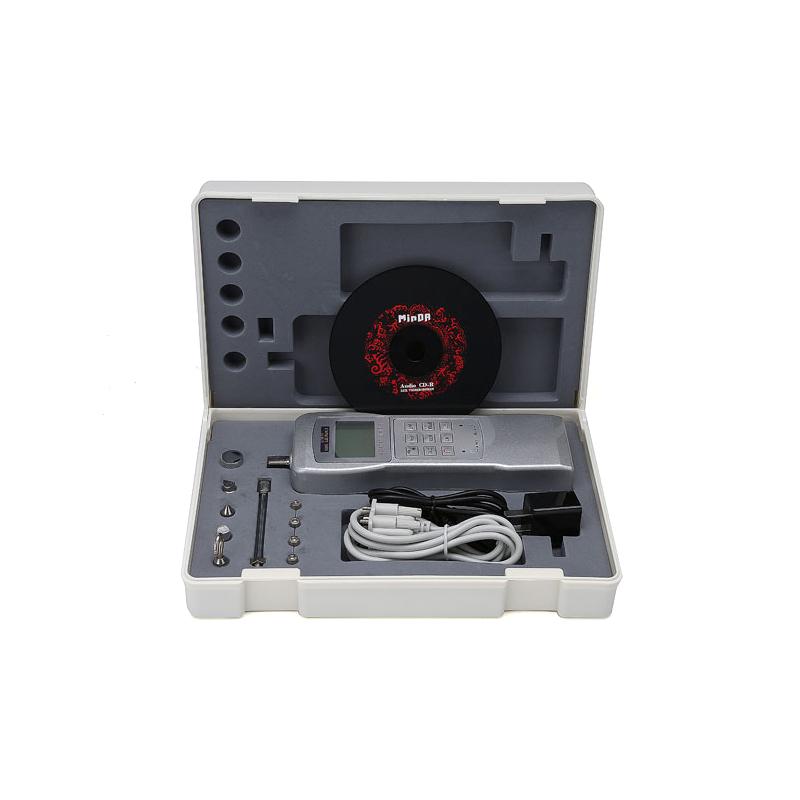

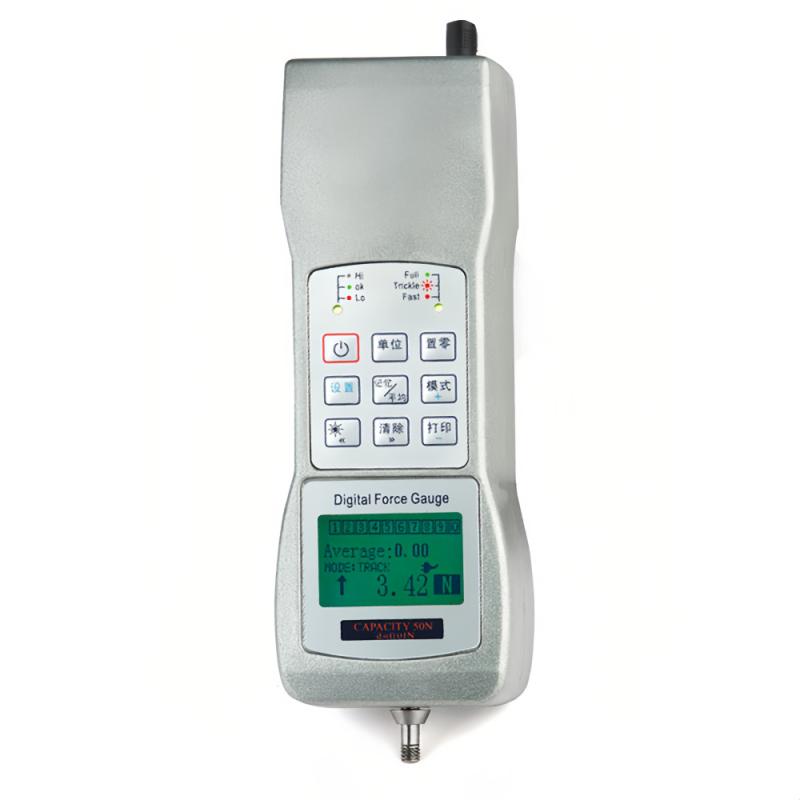

HBO HF-5 digital tension meter is an HF series product. As an upgrade of the HG series, it has a larger data storage capacity of up to 200 sets, and supports key action force and rebound force testing and first peak hold function. The tension meter has a built-in Sensor, the maximum measurement load value is 5N, and the size is small and easy to carry.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 960HZ
2. Support button pressure and resilience test
3. Operating interface Chinese and English optional, display content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking, peak holding, first peak, button pressure-rebound mode
8. Can set the upper and lower limit comparison value for data qualification judgment, support sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: over-range sound alarm and mechanical two-level limit protection

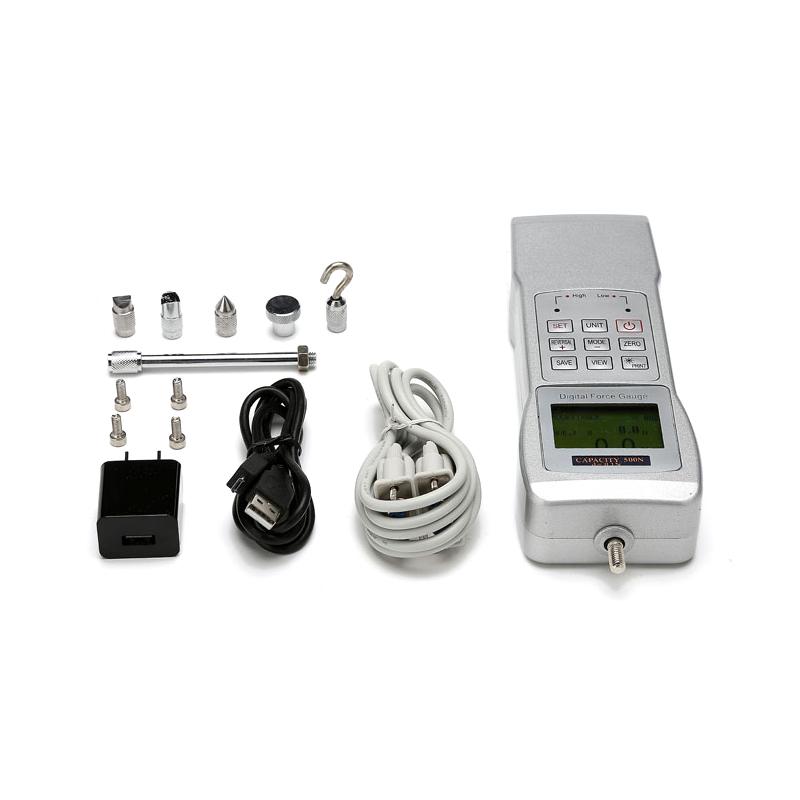

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging, Safely Extend Battery life
16. Cooperate with the electric testing device to realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. Linear dispersion display of test results: real-time force value-time, peak force value-number, first peak-number
19. Qualification judgment: Automatically judge the qualification rate according to the preset Standard value
20. Automatic storage of test data and Linear dispersion to computer, unlimited quantity
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
The HF-5 digital display tension meter detects the push and pull force through the built-in Sensor, converts the force value into an electrical signal, and displays it in real time on the display screen after processing. It supports a variety of test modes, including real-time tracking, peak holding and first peak mode, combined with upper and lower limit setting and alarm functions to ensure test accuracy and safety.
Applications
Push-pull failure test, push-pull load test, insertion force test
Steps
1. Connecting contacts Connecting rods and test objects
2. Turn on the power, select the Operating interface language and display angle
3. Set the test unit, mode and upper and lower limit comparison values
4. Start the test and observe the real-time force value or peak display
5. After the test is completed, the data is automatically stored and can be exported
6. Data analysis and report generation using PC software
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Avoid over-range use to prevent damage to the Sensor
• Charge regularly to extend Battery life, use matching charger
• Use a special toolbox for transportation and storage to ensure shock resistance
• Check whether the limit protection function is normal before the test
