Overview

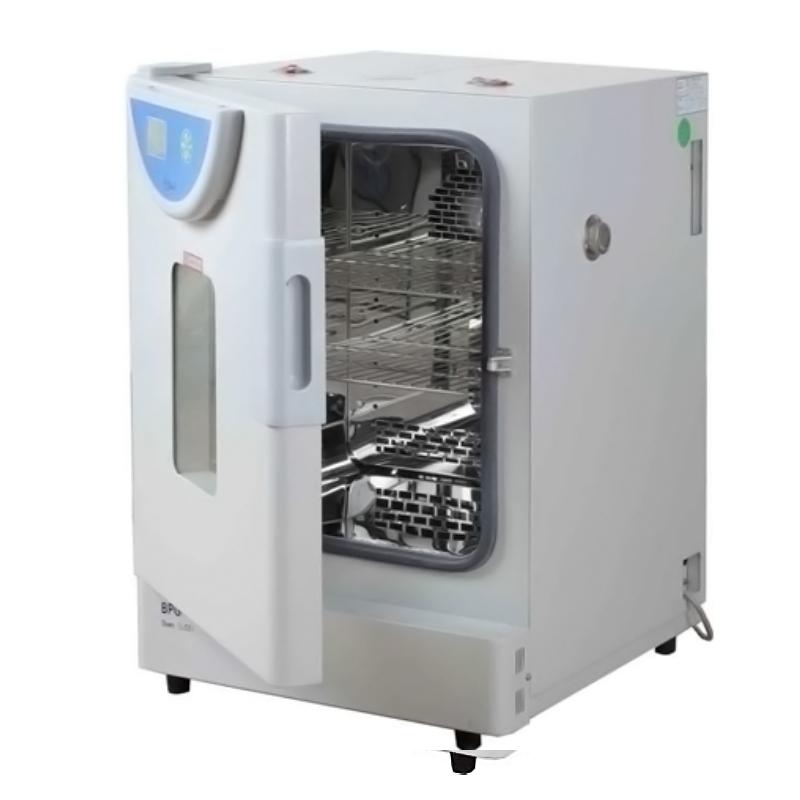

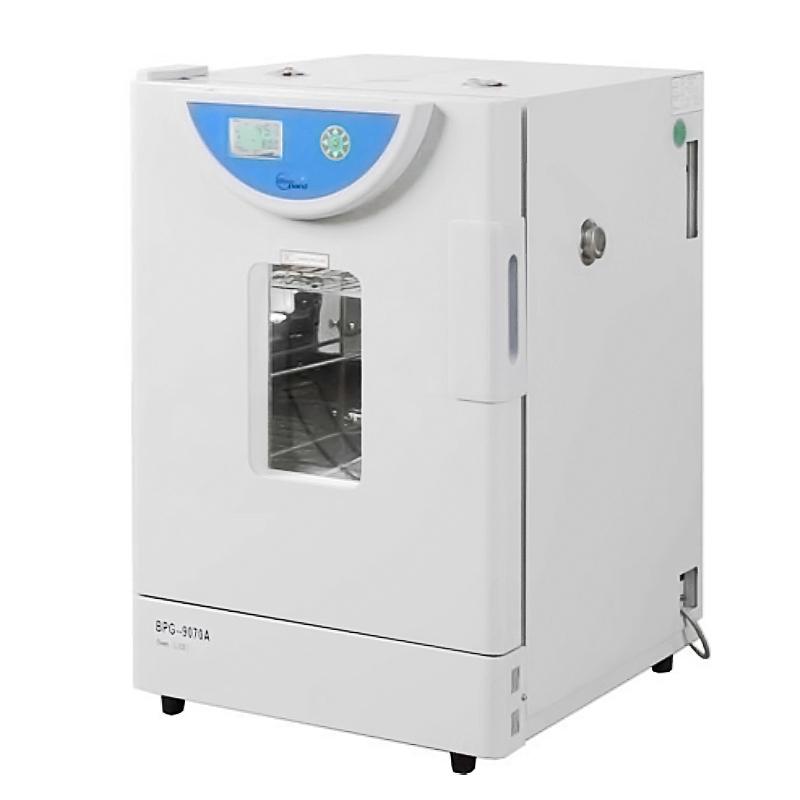

YIHENG BPG-9070A precision blast drying oven is a large LCD screen precision blast drying oven. Temperature range is 10~ 200 degrees Celsius, Temperature resolution is 0.1 degrees Celsius. Input Power is 1100W, volume is 80L.
Features
1. Humanized design: large-screen LCD screen displays multiple sets of data on one screen, the menu-type Operating interface is simple and easy to understand; mirror stainless steel liner four corners and half arc transition, shelf bracket free loading and unloading for easy cleaning; the left side of the box is equipped with a diameter of 25mm test hole arbitrary wiring.
2. Self-diagnosis function: when a fault occurs, the LCD screen has fault information, and the running fault point is clear at a glance.
3. Multi-stage programmable controller (optional): The microcomputer program controller can preset 7 sections and 63 steps to program, each setting time is 1 to 99 hours and 59 minutes, and the boot and shutdown time can be preset. Rotation speed of the circulating fan is adjustable, which simplifies the complex experimental process to achieve automatic control.
4. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface, use the computer and printer to record the temperature and time Linear dispersion, provide data storage and playback guarantee.
5. Safety function: independent temperature limit alarm system sound and light alarm prompt (optional); high or low temperature and over-temperature alarm.
Principle
BPG-9070A precision blast drying oven realizes heating drying through precision temperature control system, adopts blast mode to ensure uniform temperature distribution, and can be equipped with multi-stage programmable controller to automatically control heating rate and time, and quickly carry out heating drying test.
Applications
Laboratory, industry, scientific research, education, medical care, electronics, chemicals, materials, food, pharmaceuticals
Steps
1. Connect the power supply and turn on the device.
2. Set parameters such as temperature and time through the large-screen LCD display.
3. Optional multi-stage programmable controller preset program steps.
4. Start operation, monitor temperature Linear dispersion and alarm information.
5. After the experiment, turn off the equipment and clean the studio.
Notice
• Power supply voltage is AC 220V 50Hz.
• Check whether the independent temperature limit alarm system is normal before operation (optional).
• Avoid over-temperature operation and pay attention to temperature fluctuations and uniformity indicators.
• Utilize removable shelves when cleaning the studio.
• Use the test hole on the left side of the box when wiring.
• Check the LCD screen prompt information when the fault occurs.
• Connect the interface correctly when selecting the data processing function.
