Overview

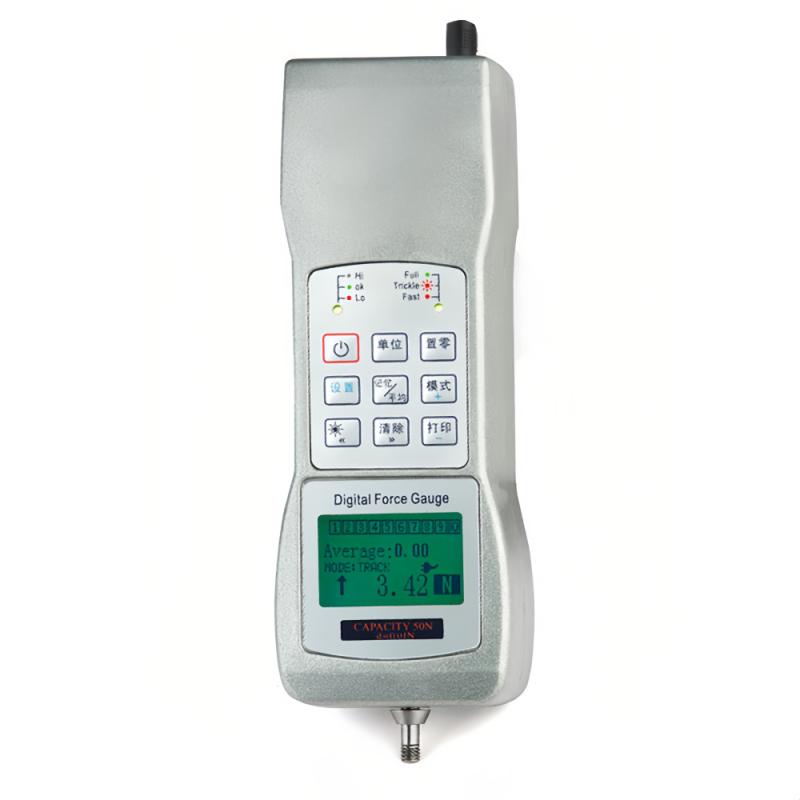

HBO HF-20 digital tension meter is an upgraded version of HF series, with built-in Sensor, maximum Measured value 20N, small size and convenient portability. Using electronic Sensor technology, it is suitable for tensile pressure load test, plug-in force test, failure test, etc., and can be combined with machine and fixture to form a small testing machine. It has the advantages of high accuracy, easy operation and reliable data. It conforms to the national Measurement verification regulations of JJG working force meter and is widely used in mass detection, physical experiment, engineering test and other fields.
Features
1. High Accuracy High resolution, Stability, sampling speed 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English optional, display content 180 degrees flip
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking, peak holding, first peak, button pressure-resilience
8. Can set the upper and lower limit comparison value, sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum, MIN Minimum
10. Peak hold time can be set from 0 to 99 seconds
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set for 0~ 99 minutes
13. Limit protection: over-range sound alarm and mechanical two-level limit
14. Special Instrument Toolbox, EVA Shockproof Encasement
15. Smart Charging, Extend Battery life
16. Cooperate with the electric testing device to realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. Linear dispersion of test results
19. Qualification judgment function, batch inspection pass rate
20. Automatic storage of test data and Linear dispersion, unlimited quantity
21. Data can be queried and exported in excel format
22. Test reports can be prepared and printed in user format
Principle
The HF-20 digital display tension meter adopts built-in electronic Sensor technology to track or maintain peak data in real time by measuring the change of force value during the push-pull process. Combined with the machine and fixture, accurate load test and failure test can be carried out. The data is processed by the display window and the upper computer software.
Applications
Push-pull failure test, push-pull load test, insertion force test
Standards
JJG work dynamometer National Measurement verification regulations
Steps
1. Connecting contacts Connecting rods and test heads
2. Turn on the power and select the Operating interface language
3. Set test mode, unit, upper and lower limits and other parameters
4. Perform a push-pull test and observe the display window data
5. Use keystrokes to record or hold peaks
6. Communication interface to the computer. Data storage, analysis and export using PC software
7. After the test is completed, turn off the power and store it properly
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• The working environment requires no vibration and corrosion medium
• Avoid over-range use to prevent damage to the Sensor
Recharge regularly to extend Battery life
• Use a special charger, input 220V/50HZ, output 5V/1A

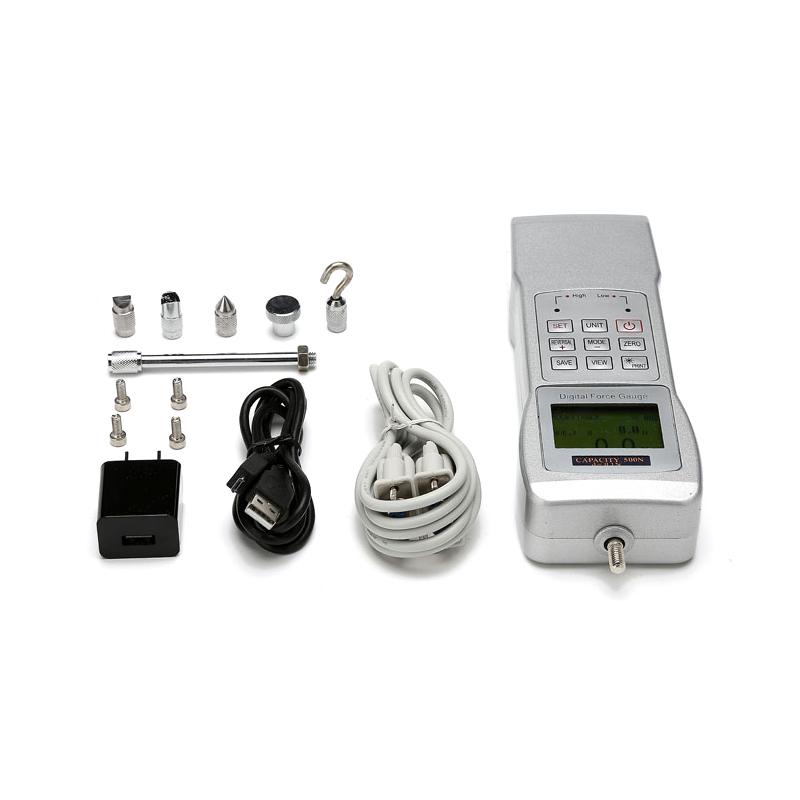

• Special Toolbox and EVA Shockproof Encasement for Transportation and Storage
• When installing, pay attention to the screw hole size of 4-M4 (meter)
