Overview

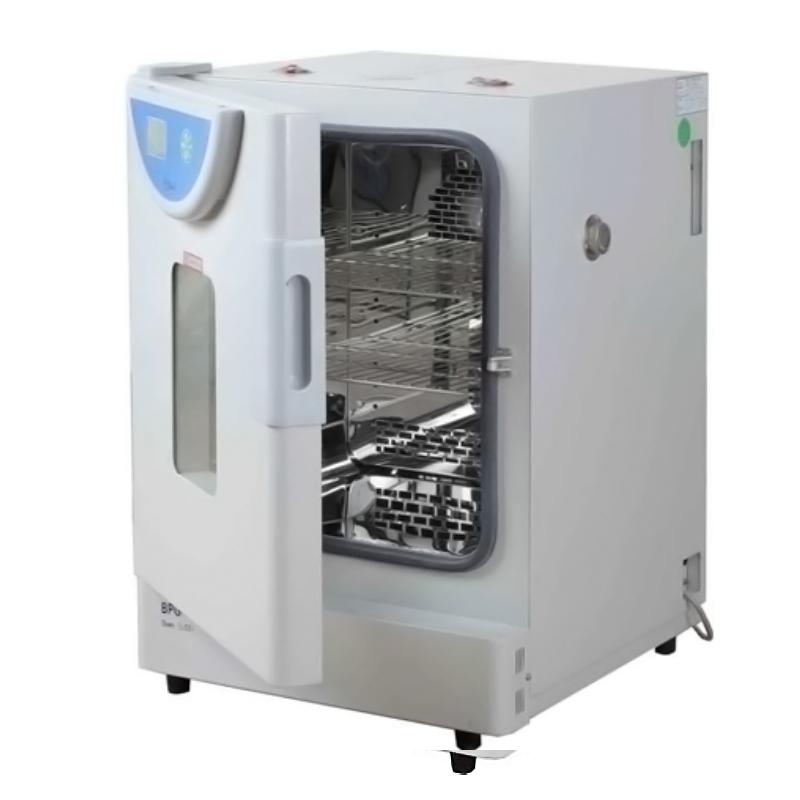

YIHENG BPG-9140A blast drying oven is a drying equipment with a Temperature range of 10~ 250 ℃, using LCD screen for easy observation and operation. The product adopts mirror stainless steel liner, equipped with 3 shelves, input Power is 1550W, and the volume is 150L.
Features
1. Humanized design: large-screen LCD display with multiple sets of data displayed on one screen, the menu-type Operating interface is simple and easy to understand; mirror stainless steel liner four corners and half arc transition, shelf bracket free loading and unloading for easy cleaning; the left side of the box is equipped with 25mm test holes for arbitrary wiring.
2. Self-diagnosis function: when a fault occurs, the LCD screen has fault information, and the running fault point is clear at a glance.
3, multi-stage programmable controller (optional): microcomputer program controller can preset 7 sections 63 steps programmable, each setting time 1~ 99 hours 59 minutes, can preset the start and shut down time, circulating fan Rotation speed adjustable, automatic control.
4. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface, use the computer and printer to record the temperature and time Linear dispersion, provide data storage and playback.
5. Safety function: independent temperature limit alarm system sound and light alarm prompt (optional); high or low temperature and over-temperature alarm.
Principle
The blast drying oven precisely controls the temperature through a microcomputer program controller, uses a circulating fan to achieve uniform heating, and conducts heating drying tests at an extremely fast speed.
Applications
Laboratory, scientific research, industrial drying, material handling
Steps
1. Connect the power supply and turn on the device.
2. Set the temperature and time parameters through the LCD display.
3. Select the multi-stage programmable controller preset program (optional) as required.
4. Start operation, monitor temperature and time Linear dispersion.
5. Turn off the equipment after the experiment is completed.
Notice
● Power supply voltage is AC 220V 50Hz before use.
Pay attention to the temperature setting during operation to avoid overheating.
Regularly clean the studio to maintain equipment hygiene.
● Check the fault information of the LCD screen in time when a failure occurs.
Optional features require additional installation and configuration.
