Overview

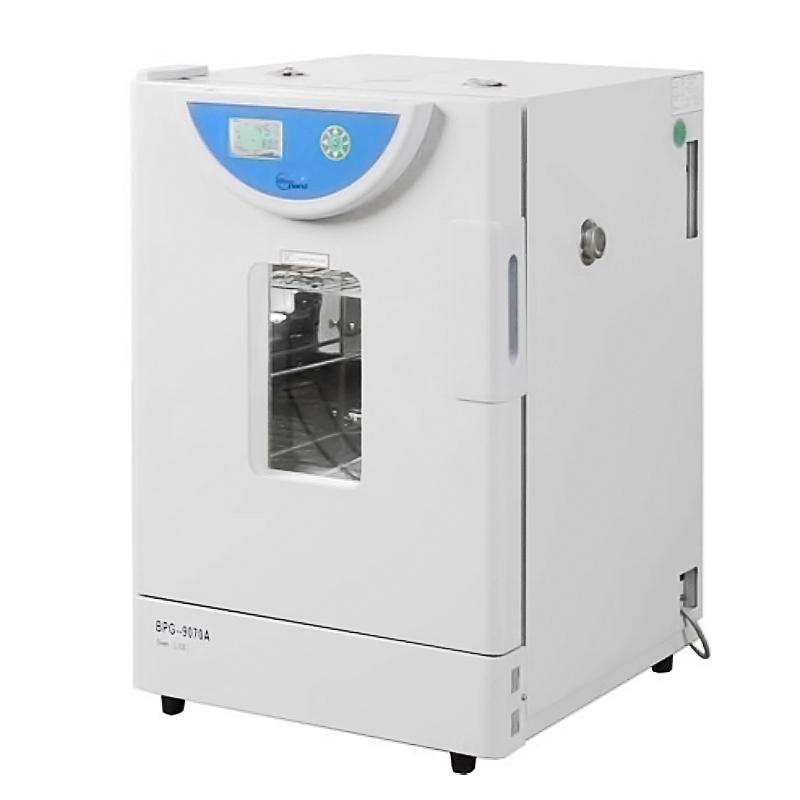

YIHENG BPG-9240A Benchtop precision blast drying oven is an intelligent LCD screen precision blast drying oven with mirror stainless steel liner, over four corners and half arcs, input Power is 2050W, Temperature resolution is 0.1 degrees Celsius. This product is a new generation of YIHENG precision blast drying oven with advanced features such as user-friendly design, self-diagnosis function, and optional multi-stage programmable controller.
Features

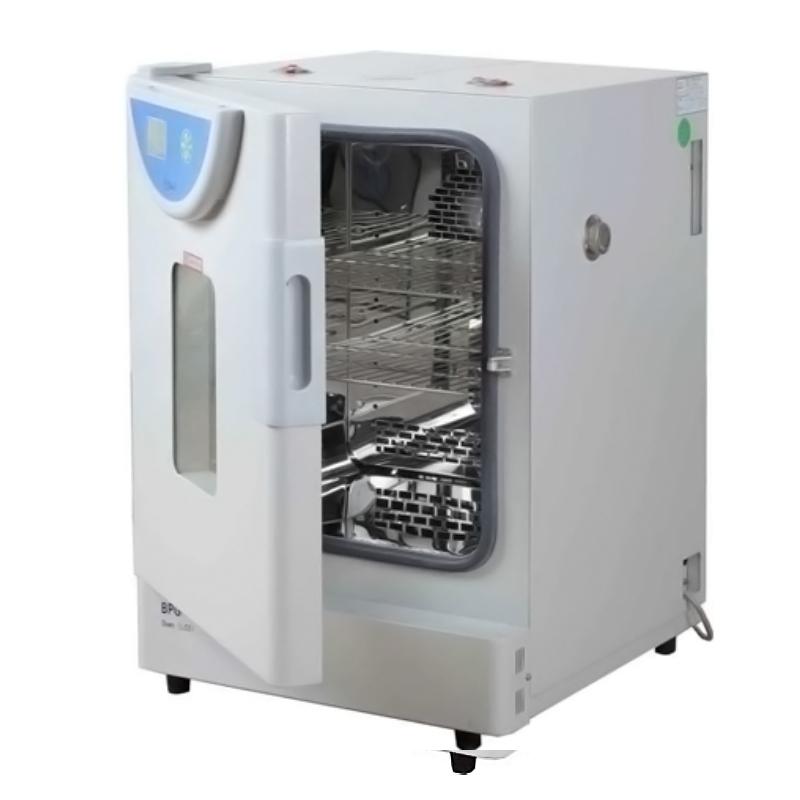

1. Humanized design: large-screen LCD screen displays multiple sets of data on one screen, the menu-type Operating interface is simple and easy to understand; mirror stainless steel liner four corners and half arc transition, shelf bracket free loading and unloading for easy cleaning; the left side of the box is equipped with 25mm test hole can be arbitrarily wired.
2. Self-diagnosis function: when a fault occurs, the LCD screen has fault information, and the running fault point is clear at a glance.
3, multi-stage programmable controller (optional): microcomputer program controller can preset 7 sections 63 steps programmable, each setting time 1~ 99 hours 59 minutes, can preset the switch time, circulating fan Rotation speed adjustable, simplify the complex experimental process to achieve automatic control.
4. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface, use the computer and printer to record the temperature and time Linear dispersion, provide data storage and playback guarantee.
5. Safety function: independent temperature limit alarm system sound and light alarm prompt (optional), high or low temperature and over-temperature alarm.
Principle
The drying oven circulates the heating air through the blower system, and uses a microcomputer program controller to precisely control the temperature and time to achieve rapid heating drying. Optional multi-stage programming function can preset complex heating programs, and the circulating fan Rotation speed can be adjusted to ensure uniform temperature distribution.
Applications
Laboratory drying, material heat treatment, sample drying, industrial preheating
Steps
1. Connect the power supply and turn on the device switch
2. Set the required temperature and time parameters through the LCD menu
3. If complex programs are required, multi-stage programmable control can be preset
4. Place the sample and start the operation
5. Monitor display data and alarm prompts
6. After the run, remove the sample and turn off the equipment
Notice
● Power supply voltage meets AC 220V 50Hz requirements before use
● Note that the temperature setting range is between RT + 10~ 200 ° C or RT + 10~ 250 ° C
● Regularly clean mirror stainless steel liner and shelf bracket
● Check the LCD screen fault information in case of failure and deal with it in time
● Pay attention to the use of independent temperature limit alarm system when selecting safety functions
● Net weight 104kg should be properly handled when moving equipment
