Overview

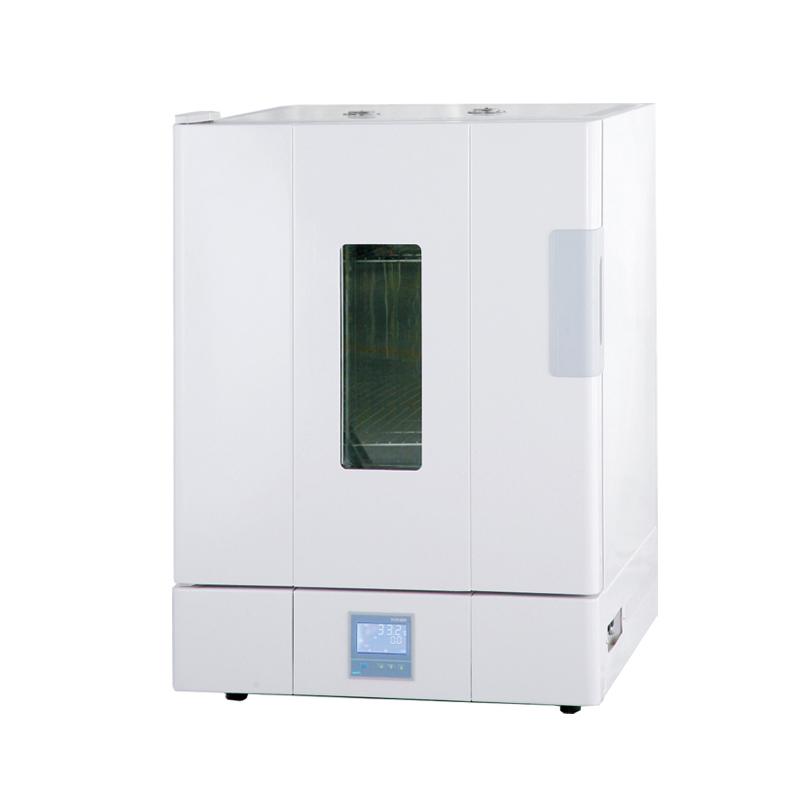

YIHENG BPG-9106A precision blast drying oven is a precision blast drying oven with a large screen LCD screen. It adopts a menu-type Operating interface, which is simple and easy to understand. The thickened box wall door design makes the outer surface temperature of the box low and safer to use. The drying oven input Power is 1300W and the volume is 100L.
Features
1. Humanized design: large screen LCD screen, multiple sets of data one screen display, menu Operating interface; Mirror stainless steel liner, four corners and half arc transition, shelf bracket can be freely loaded and unloaded.
2. Multi-stage programmable controller (optional): multi-stage LCD programmable controller, a variety of parameters can be displayed on one screen; parameters such as temperature, circulating wind speed, time and heating rate can be set; 7 sections of 63 steps can be programmed, 9 steps per section, and the setting time for each section is 1 to 99 hours and 59 minutes.
3. Self-diagnosis function: When a fault occurs, the LCD screen displays fault information.
4. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface, record temperature and time Linear dispersion.
5. Safety function: The thickened design of the box wall and door ensures that the outer surface temperature is low; the independent temperature limit alarm system (optional) sound and light alarm; the temperature is high or low and over-temperature alarm.
6. Good energy saving design: comprehensive safety performance design to prevent high energy consumption; sealing strip adopts new synthetic silicon sealing strip to effectively prevent heat loss and reduce Thermal Power by more than 25%.
Principle
BPG-9106A precision blast drying oven circulates hot air through the blast system to achieve uniform heating and drying; programmable controller is used to automatically control parameters such as temperature, time and wind speed to ensure accurate temperature control.
Applications
Laboratory, scientific research, industrial drying, material handling, sample prepative
Steps
1. Connect the power supply and turn on the power switch of the device.
2. Set parameters such as temperature and time through the large-screen LCD display.
3. Optional multi-stage programmable controller, preset program steps.
4. Start the drying program and monitor the running status.
5. After the procedure, turn off the power and remove the sample.
Notice
● Power supply voltage check before use meets AC 220V 50Hz requirements.
● Ensure that the sealing strip of the box is intact to prevent heat loss.
● Pay attention to the outer surface temperature of the box during operation to avoid burns.
When a failure occurs, check the LCD screen fault information and deal with it in a timely manner.
Optional independent temperature limit alarm system to enhance safe operation.
Regularly clean the studio to maintain equipment hygiene.
