Overview

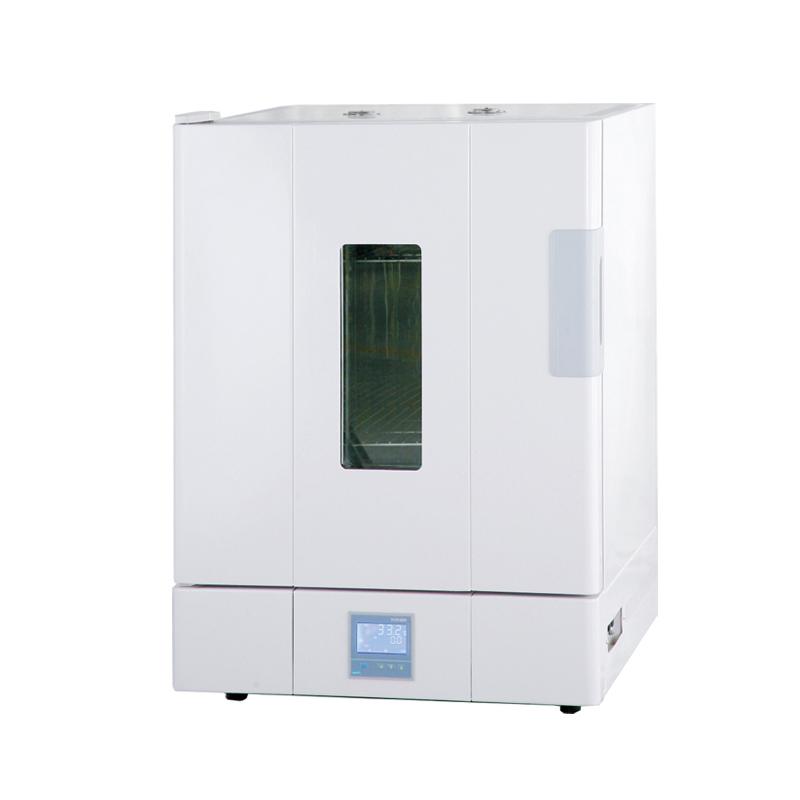

YIHENG BPG-9156A laboratory blast drying oven is a Benchtop precision blast drying oven, equipped with a large LCD screen, one screen displays multiple sets of data, intuitive and clear. Using stainless steel mirror liner, longer service life. Input Power is 1650W, volume is 175L, Temperature range is 10~ 200 ℃.
Features
1. Humanized design: large-screen LCD display with multiple sets of data displayed on one screen, menu-type Operating interface is simple and easy to understand; mirror stainless steel liner four corners and half arc transition, shelf bracket free loading and unloading for easy cleaning.
2. Multi-stage programmable controller (optional): Multi-stage liquid crystal programmable controller simplifies the complex test process and realizes automatic control; can set parameters such as temperature, circulating wind speed, time and heating rate, support layer control and preset automatic switch function; preset 7-stage 63-step program, each setting time is 1 to 99 hours and 59 minutes.
3. Self-diagnosis function: When a fault occurs, the LCD screen displays fault information, and the running fault point is clear at a glance.
4. Convenient data processing (optional): can be connected to the printer, 485 Communication interface or USB data transfer interface, record temperature and time Linear dispersion, support data storage and playback.
5. Safety function: the thickened design of the box wall and door reduces the surface temperature; the independent temperature limit alarm system sound and light prompt (optional); the temperature is high, low and over-temperature alarm.
6. Good energy-saving design: comprehensive safety performance design to prevent high energy consumption; new synthetic silicon sealing strip effectively prevents heat loss, prolongs the life of heating components, and reduces thermal Power by more than 25%.
Principle
The drying oven circulates hot air through the blast system to achieve uniform heating and drying. Using a precision temperature Control system, programmable multi-stage parameters can automatically adjust the temperature, time and wind speed to ensure stable operation.
Applications
Laboratory, scientific research, industrial drying
Steps
1. Connect the power supply and turn on the device.
2. Set parameters such as temperature and time through the LCD screen.
3. Optional multi-stage programmable controller as required, preset program steps.
4. Start running and monitor the display data.
5. Turn off the equipment after operation and clean the liner.
Notice
● Power supply voltage check before use meets AC 220V 50Hz requirements.
Avoid over-temperature operation and pay attention to temperature alarm prompts.
● Make sure the equipment is powered off when cleaning the liner, and be careful when loading and unloading shelf brackets.
● Optional functions such as multi-stage programming, independent temperature limiting, etc. need to be operated according to the instructions.
● Regularly check the sealing strip to prevent heat loss.
