Overview

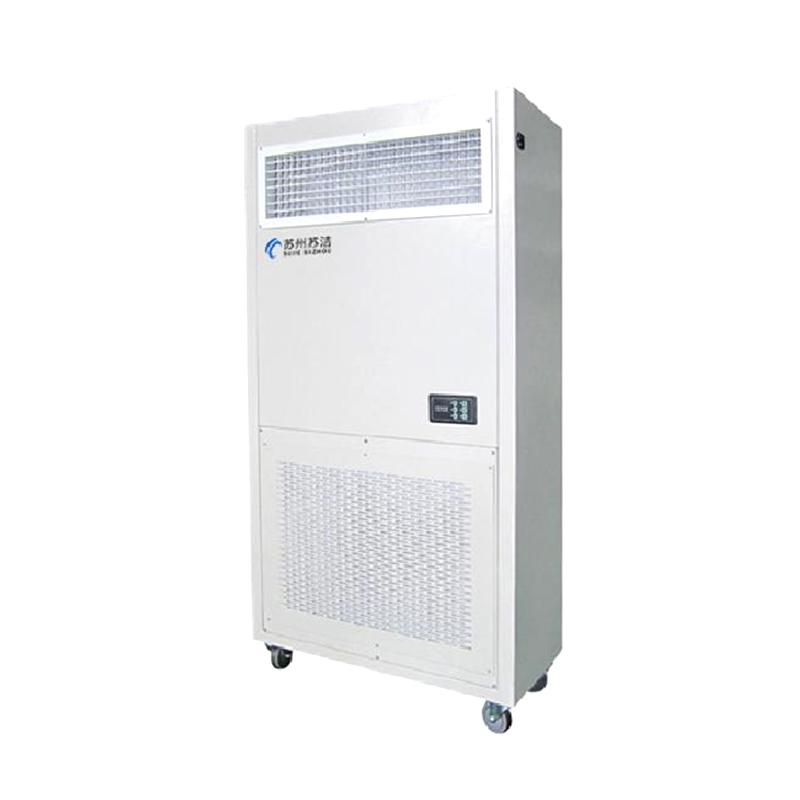

ZJ-900 mobile air self-purifier is an air purification equipment that provides a local clean working environment. It is composed of primary air Filter, fan, effective air Filter and box. The shell is made of Cold rolled steel plate and the surface is painted. The structure is simple, the use is convenient, and the indoor air circulation can be carried out after installation. It is suitable for applications where the working position is often changed in a low cleanliness environment of 10,000 to 100,000 levels.
Features
1. Cold rolled steel plate coating, simple and durable structure
2. Bring your own fan, initial effect filtrate net, air supply static pressure box, effective Filter and flow sharing plate
3. Equipped with a wind speed adjuster, the wind speed can be adjusted according to the actual situation
4. The purification level is high, the trend can reach 1000, and the work surface can reach 10,000 clean levels
5. The lower part is equipped with a mobile runner and an adjustable jack, which can be moved flexibly and fixed in position
6. Adopt variable air volume fan system, multi-speed regulation to ensure stable wind speed in local working areas
7.Filtrate efficiency ≥ 99.97% @≥ 0.5μm, rated air volume 1000-1200m ³/h
Principle
The equipment uses a system composed of primary air Filter, fan and effective air Filter to purify the air in multiple stages. During operation, the fan drives the air flow, removes the larger particulate matter (PM) through the primary effect filtrate net, and then efficiently filters ≥ 0.5 μm particulate matter (PM) through the effective Filter, and finally sends clean air evenly through the flow sharing plate to form a local clean working environment.
Applications
Aseptic room, laboratory, pure water filling room, filling water plant, beverage factory, dairy factory, food factory, winery
Standards
Food factory Qs certification
Steps
1. Move the device to the desired working location
2. Adjust the position of the jack fixing equipment
3. Connect AC 220V/50Hz power supply
4. Adjust the wind speed gear according to actual needs
5. Start the equipment to start the air purification work
Notice
• Equipment suitable for 10000~ 100000 level cleanliness environment
• The cleanliness level of the countertop is 10,000 (about 10,000 particles ≥ 0.5um in the air of 1ft ³)
• Average wind speed range of 1.2~ 2m/s +/- 20%
• Device power ≤ 350W, noise ≤ 62dB (A)
• Power supply voltage AC 220V/50Hz before use
• Regularly check and replace the Filter to ensure the purification effect
