Overview

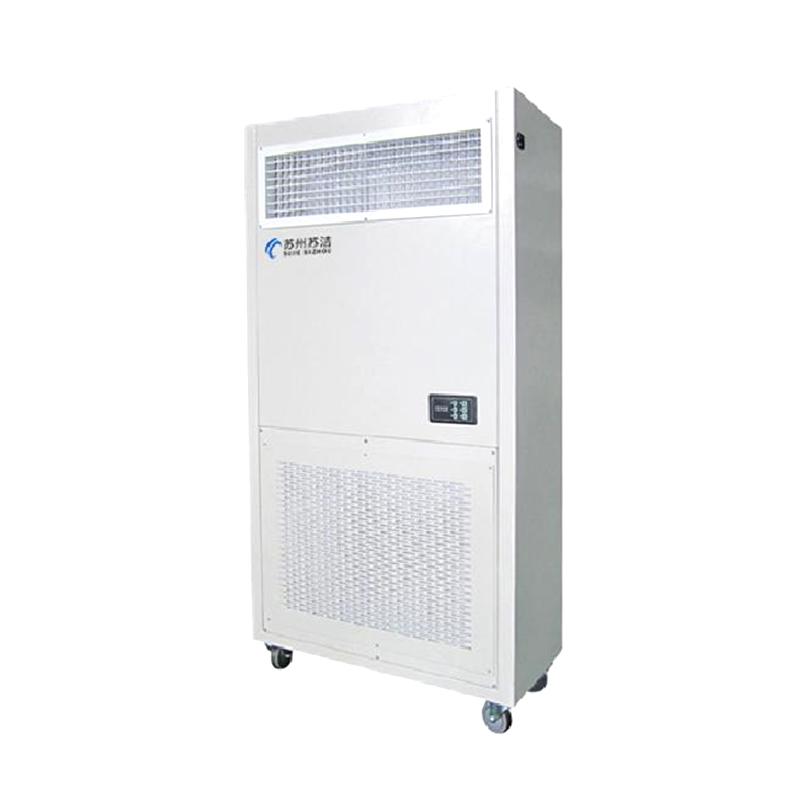

ZJ-1200 mobile air self-purifier is an air purification equipment that provides a local clean working environment under the SUJIE brand. It is composed of primary air Filter, fan, effective air Filter and box. The shell is made of Cold rolled steel plate and the surface is painted. The structure is simple and easy to use. After installation, it can circulate indoor air. It is suitable for applications where the working position is often changed in a low cleanliness environment of 10,000 to 100,000 levels.
Features
1. Cold rolled steel plate paint treatment, simple structure, easy to use
2. Bring your own fan, initial effect filtrate net, air supply static pressure box, effective Filter and flow sharing plate
3. With wind speed adjustable device, the wind speed can be adjusted according to the actual situation
4. The trend of purification level can reach 1000 level, and the work surface can reach 10,000 level of cleanliness
5. The lower part is equipped with a mobile runner and an adjustable jack, which can be moved to the desired position as required and then fixed
6. Adopt variable air volume fan system, multi-speed regulation, gear selection
7.Filtrate efficiency ≥ 99.97% @≥ 0.5μm, rated air volume 1000m ³/h/1200m ³/h
Principle
The equipment filters and purifies the air through a purification system composed of primary air filter, fan and effective air filter. Multi-speed regulation of variable air volume fan system is adopted to ensure that the wind speed in the local working area is in an ideal state and realize air circulation purification.
Applications
Aseptic room, laboratory, pure water filling room, filling water plant filling room, beverage factory, dairy factory, food factory, winery
Standards
Food factory Qs certification
Steps
1. Move the device to the desired working location
2. Use adjustable jack fixtures
3. Connect AC 220V/50Hz power supply
4. Adjust the wind speed gear according to the actual situation
5. Start the equipment for air purification
Notice
• Equipment suitable for 10000~ 100000 level cleanliness environment
• The working position can be changed frequently, making it flexible and convenient to use
• Make sure the power supply is AC 220V/50Hz
• Wind speed can be adjusted according to actual needs
• Equipment noise ≤ 62dB (A)
• Power ≤ 350W
