Overview

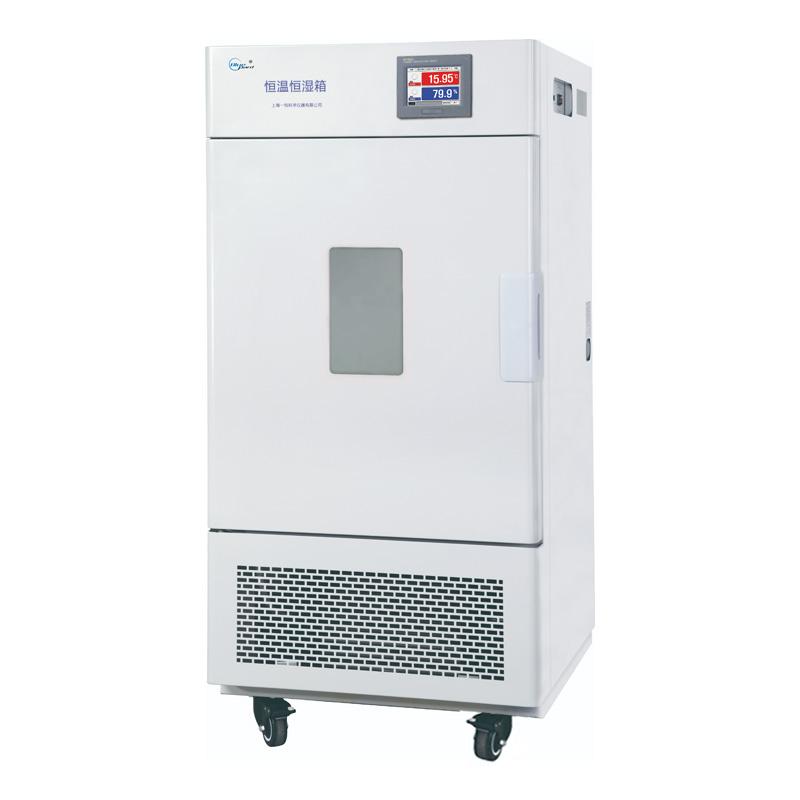

YIHENG BPS-50CH humidity chamber is a fully fluorine-free design, multi-stage programmable PID control smart Constant Temperature and Humidity Chamber. Its Temperature range is RT + 10~ 85 ℃, Temperature Fluctuation is +/- 1 ℃, Input Power is 1450W, no cooling function, independent temperature limit alarm system, overtemperature can automatically interrupt operation to ensure safety.
Features
1. Humanized design: Fluorine-free design, multi-stage programmable PID controller to achieve precise temperature Humidity control, imported 304 mirror stainless steel liner for easy cleaning.
2. Quality assurance: parameters are automatically stored and restored after power failure, brand Compressor and circulating fan are energy-saving and efficient, and unique air duct system ensures uniform temperature and Humidity.
3. Safety function: independent temperature limit alarm system, multiple protection including temperature alarm and Compressor overheating protection.
4. Convenient data processing: Optional printer or Communication interface for data recording and Linear dispersion printing.
5. Programmable Touchscreen controller: large screen touch operation, Chinese and English interface, 100 sets of program capacity, PID automatic calculation precision control.
Principle
Multi-stage programmable PID controller and TMHM equilibrate conditioning method are adopted to ensure uniform Humidity of working room temperature through unique air duct circulation system, and accurate Temperature and Humidity control is realized.
Applications
Constant temperature and humidity test, environment simulation test
Steps
1. Set Temperature and Humidity Parameters and Procedures.
2. Start the equipment operation test.
3. Monitor operating status and Linear dispersion display.
4. Automatic stop or manual interruption at the end of the test.
Notice
• Ensure that the Working Ambient Temperature is within the range of 5~ 30 ° C.
• Power supply voltage is AC220V 50HZ before use.
• Avoid touching the controller screen artificially to prevent unplanned downtime.
• Regularly clean the liner and check the protection function.
• When the temperature exceeds, the equipment will automatically interrupt and alarm, which needs to be dealt with in time.
