Overview

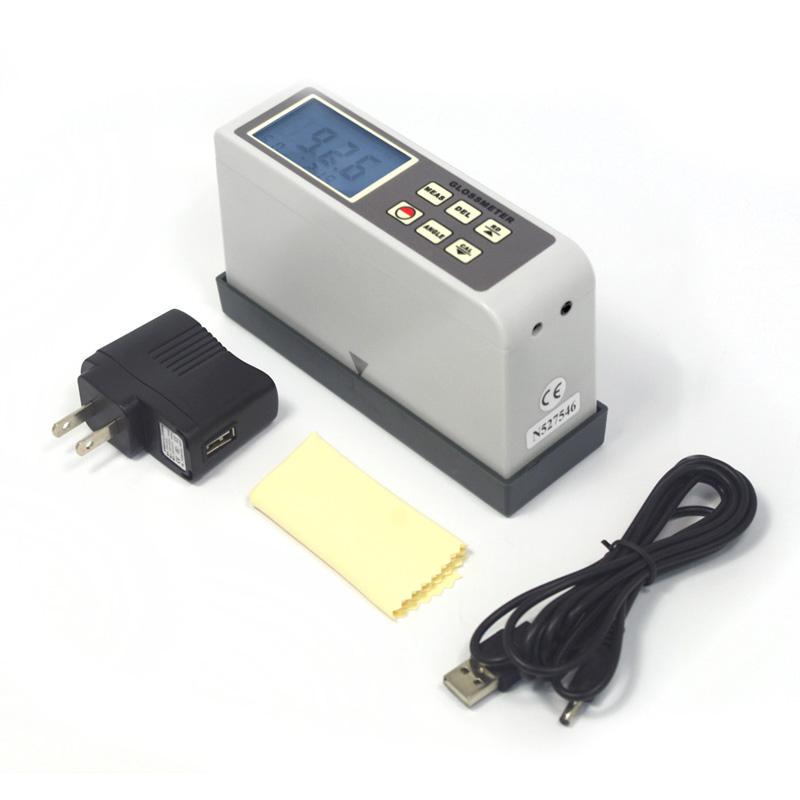

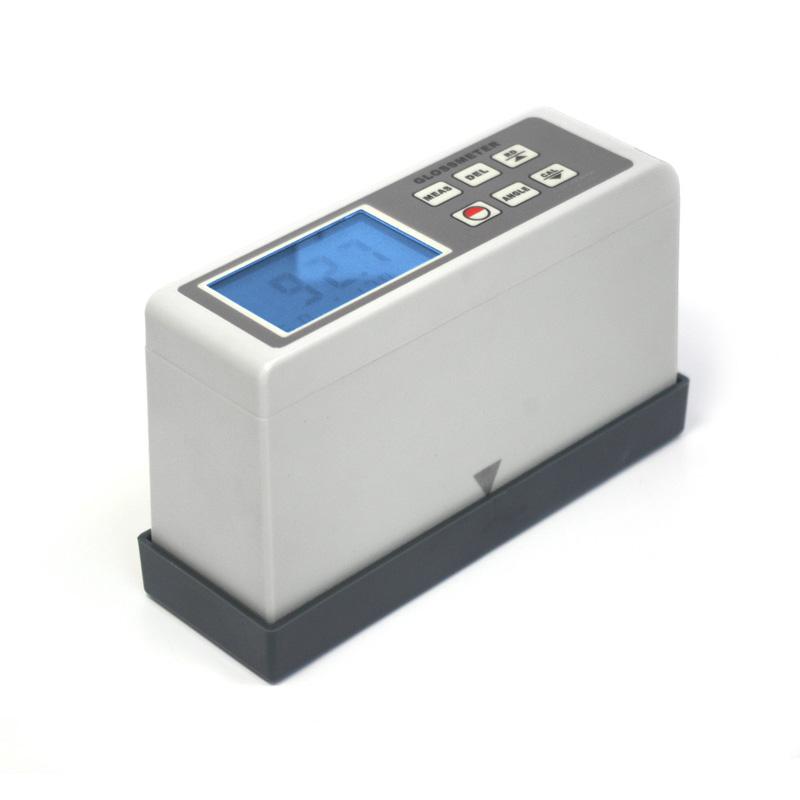

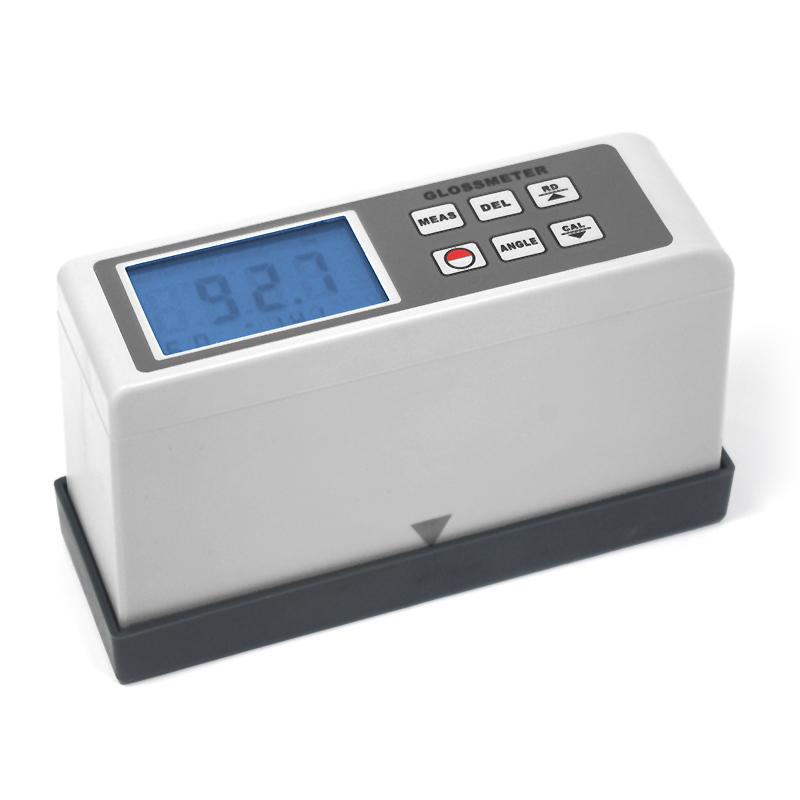

The AMITTARI AG-1268B integral glossmeter is a precision measuring instrument that can measure Gloss through three projection angles of 20 °, 60 ° and 85 °. Stability is 0.4GU, Repeatability is 0.5GU, Measurement range covers 0~ 200GU, suitable for Glossiness testing on the surface of inks, paints, coatings and other materials.
Features
1. Accurate measurement, Repeatability.
2. With power undervoltage indication function.
3. Fully intelligent design, fast measurement.
4. There is a beep prompt during operation and use.
254 new sets of measurement data can be stored.
6. Precision, lightweight shape, easy to carry Automatic calibration, no need for manual adjustment.
Principle
The glossmeter performs Gloss measurement on the surface of the material through three projection angles of 20 °, 60 ° and 85 °, and uses the built-in Optical inspection system to detect the reflected light intensity to achieve accurate measurement in the range of 0~ 200GU.
Applications
Inks, paints, paints, coatings, wood products, building decoration materials: Glossiness testing of surfaces of marble, granite, vitrified polished tiles, ceramic tiles, plastics, paper and Miscellaneous Non-metallic materials.
Standards
ASTM D-523、ASTM D1455、ASTM C346、ASTM C584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB 8807、JJG 696-2002。
Steps
1. Power Supply button to turn on.
2. Select the Measurement Angles (20 °/60 °/85 °) through the angle conversion key.
3. Automatic calibration by calibrating.
4. Align the measurement port to the surface of the sample and press the measurement button to test.
5. View the data through the read key, and the delete key can delete the record.
6. Use Interface (USB, RS-232, Bluetooth) to transfer or store data.
Notice
* Operating temperature range is 0~ 40 ℃, relative humidity ≤ 85%.
* Measuring Area is 7 * 14mm elliptical shape, to ensure that the surface of the sample is flat.
* Built-in 3.7v lithium battery, pay attention to the power undervoltage indication.
* Avoid use in extreme environment conditions to maintain Measurement accuracy.
