$ 10447.00Ex works
100L/min Sampling flow rate and six particle size channel detection, equipped with long life laser Illuminant and imported air pump, support Touchscreen operation and USB data export function.
Category : Gas Detector
Brand : SuJie
SKU : NB039234
Service :The delivery and service By NBCLab.Com

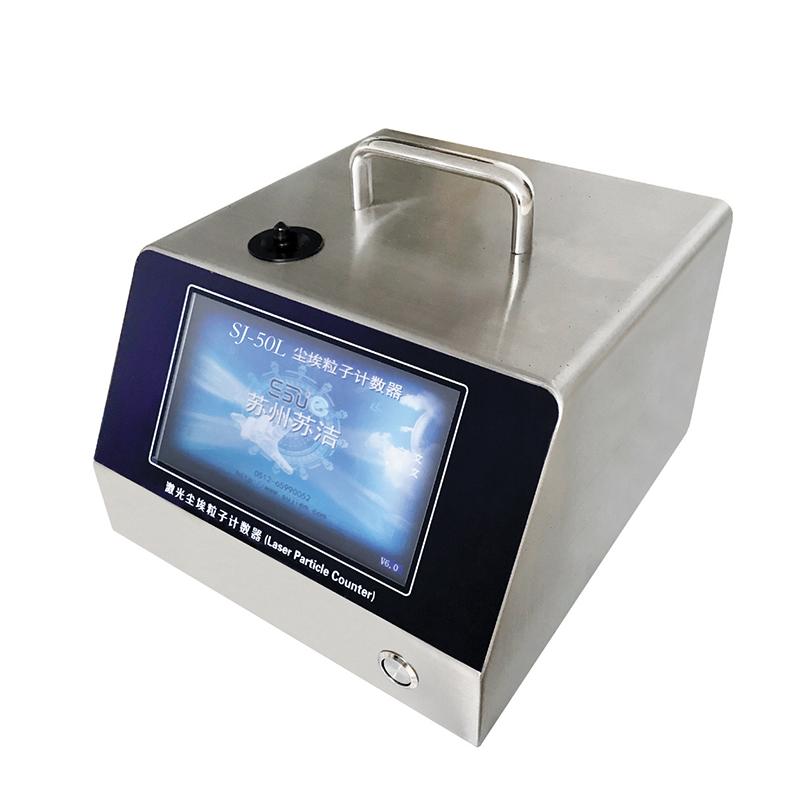

Dust Particle Counter is an instrument for measuring the number of dust particles and Particle size distribution per unit volume in a clean environment. SJ-100L Air Particle Counter is further innovated on the basis of the introduction of existing mature technology. It has the characteristics of high Measurement accuracy, stable performance, strong function, small size, simple and convenient operation.
1. Sampling flow rate 100L/min +/- 5%, particle size channels include 0.3um, 0.5um, 1um, 3um, 5um, 10um 2. Using Long Life Laser Diode Illuminant, Service Life Up to 10 Years 3. Equipped with imported air pump, continuous operation is stable, energy saving and environmental protection 4. Color 8 inch Touchscreen Operating interface 5. Built-in thermal printer 6. Built-in lithium battery supports continuous test time of about 4 hours 7. data storage capacity 1-5000 sets of measurement data 8. USB Data Communication interface 9. SUS304 stainless steel material, weight 8.5Kg
The basic principle of SJ-100L Air Particle Counter is that the detection laser of the Optical inspection Sensor is received by the photosensitive element after being scattered by dust particles and generates a pulse signal. The pulse signal is output and amplified for digital signal processing. By comparing with the standard particle signal, the comparison result is expressed by different parameters. Measurement parameter setting, measurement result display, buttons, timing, printing, time, date, Data storage, etc. of the instrument are controlled and realized by the built-in microcomputer (MCU) and Touchscreen.
Provincial and municipal drug inspection institutes, blood centers, disease control centers, mass supervision institutes and other inspection institutions, electronic industry, workshop, semiconductor, Optical inspection or precision machining, plastic, painting, environmental protection, inspection institutes and other production enterprises and scientific research departments
GB/T6167-2007, JJF1190-2008, ISO14644-1, GMP static, GMP dynamic
1. Set Sampling time (5-9999 seconds) 2. Set sampling delay (1-100 seconds) 3. Set the number of UCL samples (2-50 times) 4. Set the number of UCL sampling points (2-50) 5. Start sampling measurements 6. Data can be stored in the built-in flash memory 7. Export data to the host computer software through the USB interface
• Maximum sampling concentration of 35,000 pcs/L • Self-cleaning time ≤ 10 minutes (3 consecutive counts of zero in 10 minutes, 95% confidence level) • Operating Environment Temperature 0-40 ℃, relative humidity 10-90% • Storage Ambient Temperature -30 ℃ -45 ℃, relative humidity 0-90% • Charging time about 6 hours • Sampling interval can be set from 1 to 1800 seconds
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
