Overview

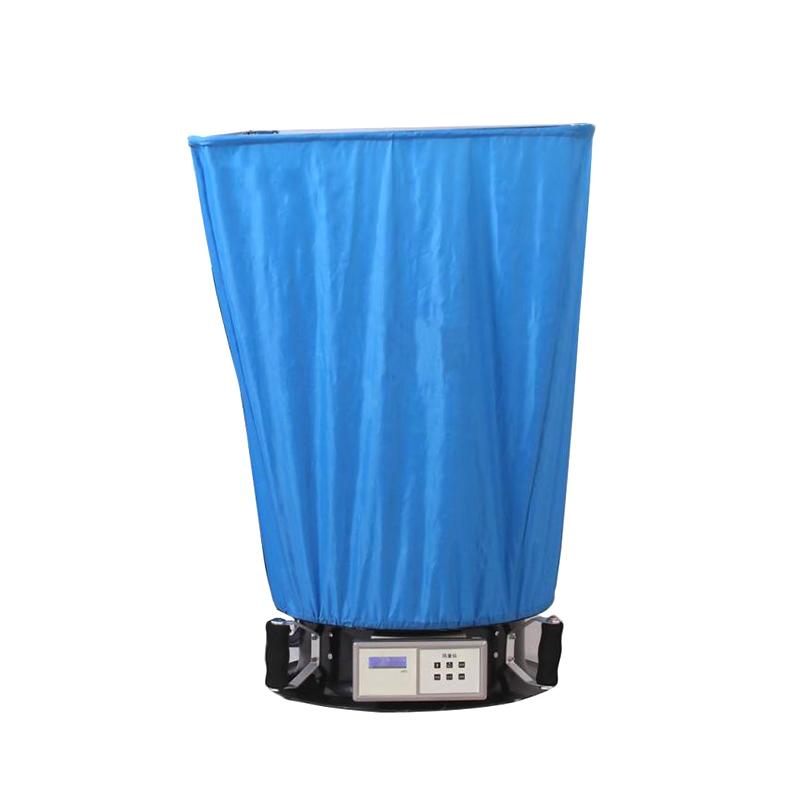

The FLY-1 air meter adopts the pitot tube principle to automatically detect the wind pressure at multiple points and multiple times, and automatically calculate the air volume. It can be directly used to measure the trend and pipeline air volume. The measurement is fast and easy, and is widely used in HVAC, purification technology and other industries. Equipped with a mobile bracket, it can rise up to 2.2m, and the whole can rise to 3.2m (including the air meter body 1m). Through a strict 0.5-level standard wind tunnel calibration device, multi-point air volume correction provides reliable mass assurance for users to accurately measure air volume.
Features
1. Using the pitot tube principle, multi-point, multiple automatic detection of wind pressure, automatic calculation of air volume
2. Equipped with a mobile bracket, it can rise up to 2.2m and the whole can rise to 3.2m (including 1m of the air gauge body)
3. LCD display with print interface
4. The built-in battery can work continuously for up to 30 hours, and no data will be lost within 4 hours after power failure
5. Automatically store 1000 trending wind values
6. Multi-point air volume correction through strict 0.5-level standard wind tunnel calibration device
Principle
The FLY-1 air meter adopts the pitot tube principle to automatically detect the wind pressure at multiple points and automatically calculate the air volume.
Applications
HVAC, purification technology
Standards
Level 0.5 standard wind tunnel calibration device
Steps
1. Place the air meter at the trend or pipe to be measured
2. Use the mobile bracket to adjust the height to the appropriate position (up to 3.2m).
3. Turn on the device for multi-point and multiple automatic detection of wind pressure
4. The device automatically calculates and displays the air volume value
5. The measurement results can be output through the print interface
6. Automatic measurement data storage (up to 1000 trend values)
Notice
• The ambient temperature range is 5~ 35 ℃
• Operating Environment relative humidity range is 15%~ 70% RH
• Measurement range of 100~ 3500m ³/h
• relative error ≤ +/- 5% FS
• Self-resistance ≤ 5pa
• Built-in battery can last up to 30 hours
• Data will not be lost within 4 hours after power failure
• Optional tray and external printer
