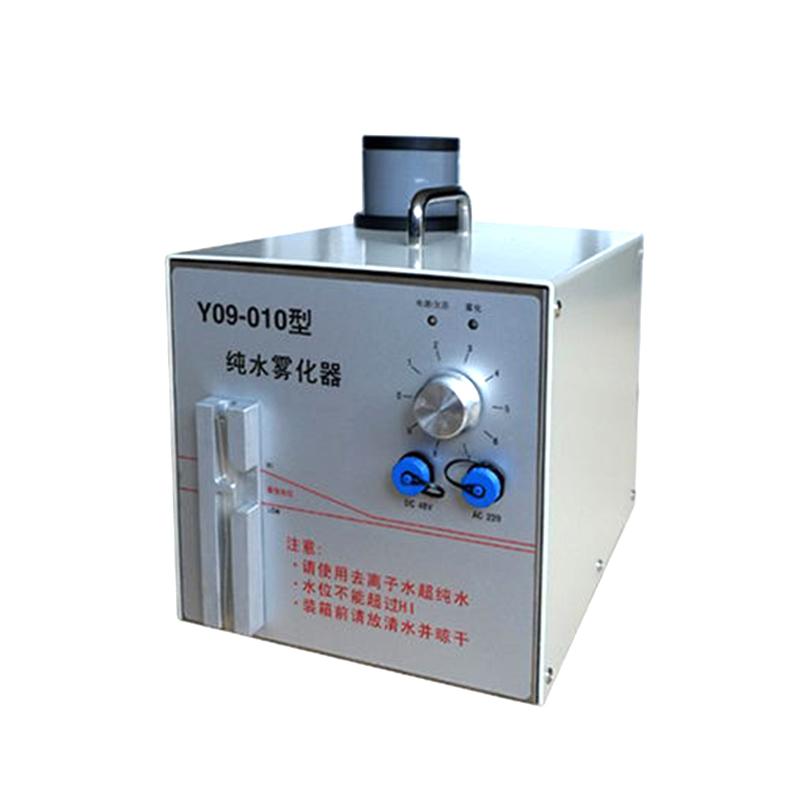

SUJIE Y09-010 Smoke generator, clean room laminar flow test to visualize airflow direction

Name: SUJIE Y09-010 Smoke generator, clean room laminar flow test to visualize airflow direction
Brand: SuJie
SKU: NB039238
Price: 1682.0 USD
Availability: InStock

$ 1682.00Ex works

Flow rate of spray 0-80CFM adjustable, spray distance 3-4 feet, visualize airflow direction and speed, support 30 minutes of continuous spray, easy flow and pressure equilibrate test.

Model

Y09-010

Get Quote

Category : Other Instruments

Brand : SuJie

SKU : NB039238

Service :The delivery and service By NBCLab.Com

Overview

SUJIE Y09-010 Smoke Generator is a professional equipment for testing clean room laminar flow, which can test clean room laminar flow greater than or equal to 100 levels. The product has an adjustable spray flow rate of 0-80CFM and a spray time of 30 minutes. The spray distance is 3-4 feet (according to Ambient Temperature and Wind Speed changes).

Features

1.0-80CFM Spray Flow rate adjustable 2.30 minutes spray time 3.3-4 feet spray distance (depending on Ambient Temperature and Wind Speed) 4. Storage water level display 5. Switch spray function 6. Easy-to-use tank mouth (specify DI water or other ultrapure water) 7. Visualize airflow direction and airflow velocity 8. Perfect equilibrating of air flow and pressure 9. The shell is made of all stainless steel or sprayed with plastic

Principle

Smoke generator generates smoke inside the device by using 2-64M deionized water or pure water as the fogging medium, and achieves visual airflow direction and airflow speed testing through adjustable spray Flow rate output, helping users observe and analyze the laminar flow in the clean room.

Applications

Cleanroom laminar flow testing

Steps

Add 2-64M deionized water or pure water to the liquid tank 2. Connect 48VDC/3A or AC 36V/4A power supply 3. Adjust spray Flow rate to desired value (0-80CFM) 4. Turn on the switch spray function 5. Observe the storage water level display 6. Conduct clean room laminar flow testing

Notice

• Use only 2-64M deionized water or other ultrapure water as the fogging medium • Spray Distance varies with Ambient Temperature and Wind Speed • Pay attention to observe the water storage level and replenish the liquid in time • Device weight is 8 kg (without water), please pay attention to safety when handling • Power consumption is 320w, please make sure the power supply matches

Shell and surface preparation
All stainless steel or plastic sprayed
output
0-80 cubic feet per minute adjustable
power consumption
320w
power supply
48VDC/3A or 36V/4A AC
Liquid tank capacity
3000 ml
fogging medium
2-64M deionized water or pure water
consume
30Ml/min
weight
8 kg (without water)
Size
180mm*215mm*280mm
