Overview

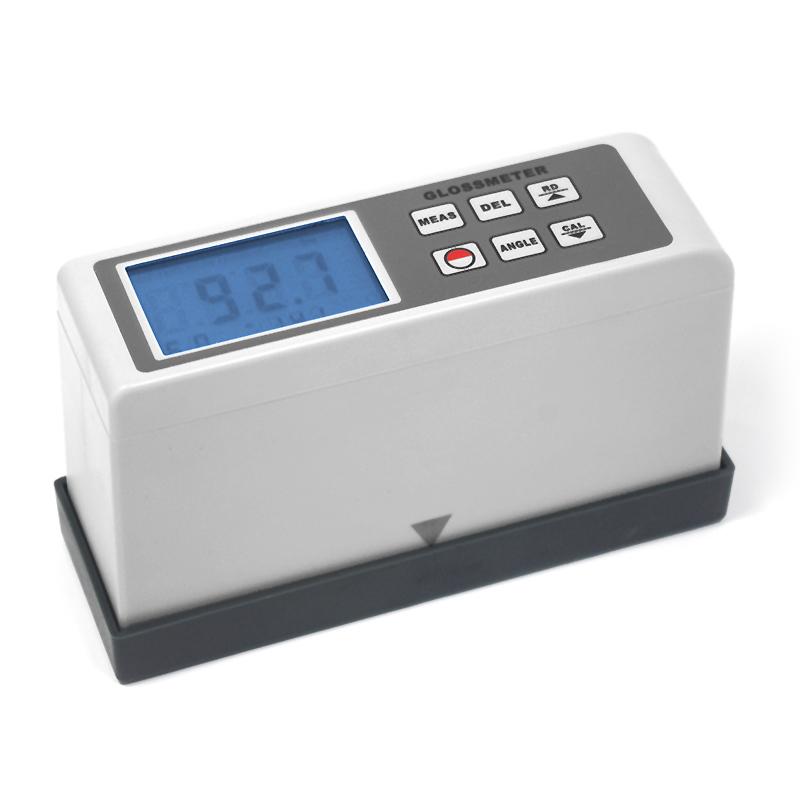

AMITTARI AG-126B Portable glossmeter is a dual-angle glossmeter for measurement of 20 ° and 60 °, Stability less than +/- 0.4GU/30Min, Repeatability 0.5GU, suitable for measurement of 0~ 200GU Coatings, paints surface Gloss.
Features
1. Accurate measurement, Repeatability
2. With power undervoltage indication function
3. Intelligent design, fast measurement
4. There is a beep prompt during operation and use
254 new sets of measurement data can be stored
6. Precision, lightweight shape, easy to carry Automatic calibration, no need for manual adjustment
Principle
The AMITTARI AG-126B glossmeter assesses glossiness by measuring the reflected light intensity of the material surface at two angles of 20 ° and 60 °, with an intelligent design for fast measurement and Automatic calibration.
Applications
Inks, paints, paints, coatings, wood products, building decoration materials: Glossiness testing of surfaces of marble, granite, vitrified polished tiles, ceramic tiles, plastics, paper and Miscellaneous Non-metallic materials
Standards
ASTM D-523、ASTM D1455、ASTM C346、ASTM C584、ASTM D2457、DIN67530、ENISO7668、JISZ8741、MFT30064、TAPPIT480、Gb9754、GB/T13891、GB7706、GB 8807、JJG 696-2002
Steps
1. Press the power button to turn it on.
2. Use the Angle Shift key to select Measurement Angles
3. Align the measurement port with the measured surface
4. Press the measurement button for measurement
5. Press the read key to view the stored data
6. Press the delete key to delete unwanted data
7. Press the calibrate button to calibrate the instrument
Notice
* Operating temperature range is 0~ 40 ℃
* relative humidity should be ≤ 85%
* Measuring Area size is 7 * 14mm, measurement port shape is elliptical
* The instrument has the function of power undervoltage indication, pay attention to timely charging
Make sure the instrument is calibrated before measurement
* Avoid use in bright light environment
