Overview

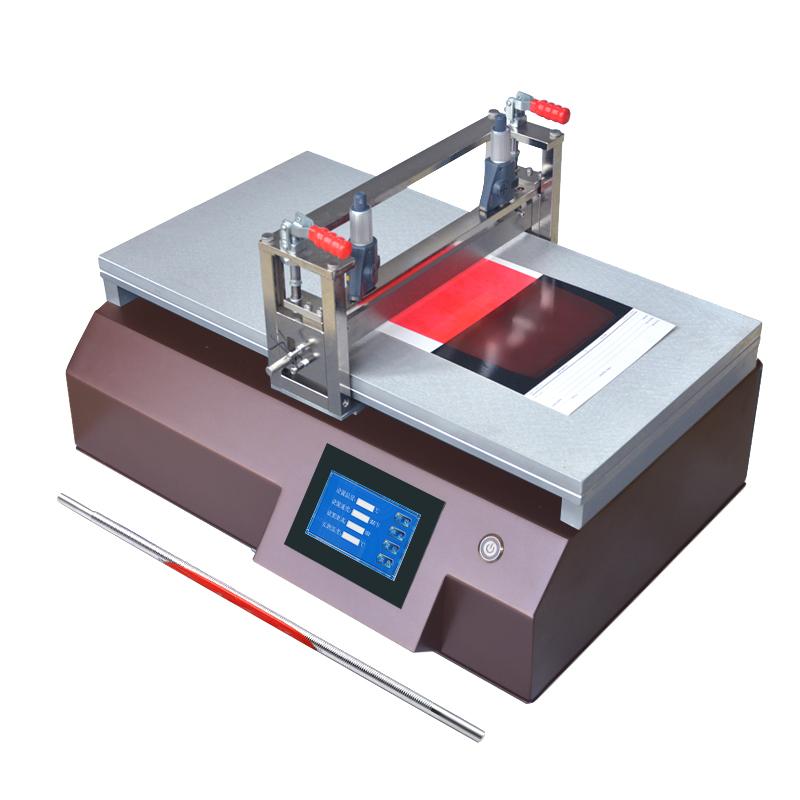

TBJ-X3-DJ3 Automatic Film Applicator is a customized experimental small Coater with a larger Spreader size of 300 * 500mm. The equipment adopts imported accessories to ensure the uniformity and smoothness of Spreader coating by controlling speed and stable pressure. It solves the problem of artificial film inconsistency and significantly improves film reproducibility. One China and one imported bar are standard.
Features
1. Using imported accessories, the price is good and cheap
2. Spreader size up to 300 * 500mm, support customization
3. Control Spreader Speed and Pressure to Ensure Uniformity and Stability
4. Standard China bar and accuracy 1μm import bar
5. Support bar and drawdown blade two coating methods
6. Adjustable coating speed 5~ 200mm/s, support stepless speed change
7. Vacuum chuck substrate fixing function
8. Optional heating function, Temperature range RT +~ 180 ℃
9. Touchscreen control, easy to operate
10. Optional accessories and customization
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the Film Applicator. The device adopts bar or Blade Coating mode, and cooperates with Vacuum chuck to fix the substrate to ensure uniform intermediate coating during the Spreader process, which greatly improves the reproducibility of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Spreader substrate and place in Vacuum chuck area
2. Choose the bar or Blade Coating method according to your needs
3. Set coating speed and Travel parameters via Touchscreen
4. Start the Device for Auto Spreader
5. Remove the Spreader sample after completion
Notice
• Make sure the power supply of the device is connected correctly before use
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate bar model according to the thickness requirements of the Spreader
• Pay attention to safety during operation and avoid contact with heating parts
• Regularly clean and maintain equipment to ensure performance
