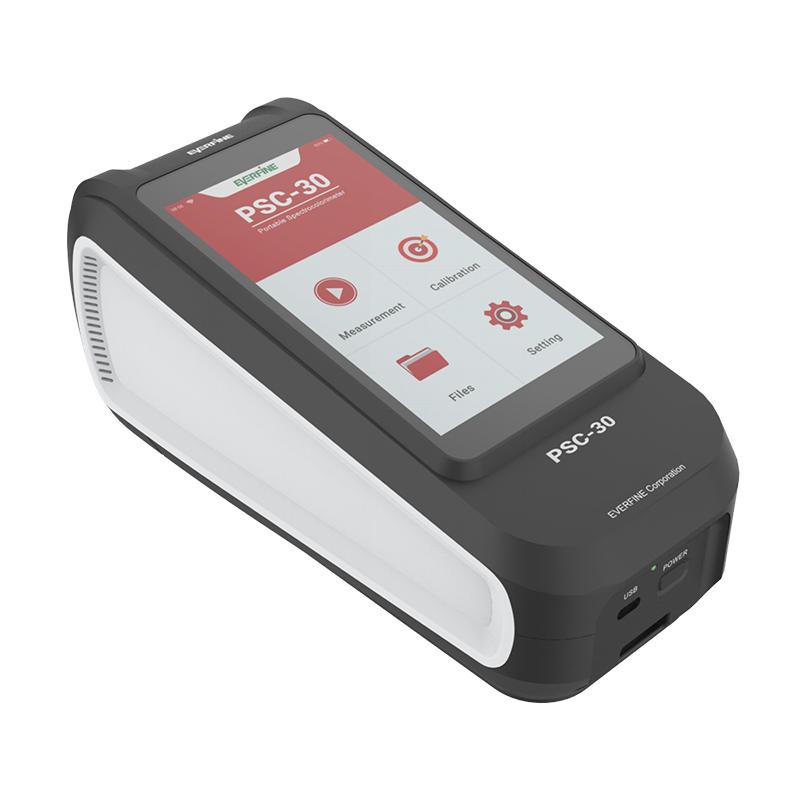

EVERFINE PSC-30 Portable ColoriMeter D/8 measurement structure SCI and SCE testing

Name: EVERFINE PSC-30 Portable ColoriMeter D/8 measurement structure SCI and SCE testing
Brand: EVERFINE
SKU: NB039266

Please contact customer service

Using D/8 measurement structure, SCI and SCE tests can be performed simultaneously, Repeatability is less than 0.03Delta E * ab, equipped with large-size color touch screen and camera positioning function, suitable for plane and curved sample measurement.

Model

PSC-30

Get Quote

Category : Color Spectrophotometer

Brand : EVERFINE

SKU : NB039266

Service :The delivery and service By NBCLab.Com

Overview

PSC-30 Portable Colorimeter is a Portable multifunctional Color measurement device developed with reference to CIE, GB and other standards. It adopts D/8 measurement structure, can perform SCI and SCE tests at the same time, is equipped with intelligent Operating system, and is powered by large-size color touch screen and ultra-large capacity lithium battery. It can realize one-click operation and complete measurement reading and analysis in one step. It can accurately measure plane and curved surface samples. It is easy to use, fast measurement, stable performance and accurate test. It is suitable for on-site measurement and quality control of various materials such as plastics, Coatings, Spinning & Weaving, automotive interiors and metal supplies.

Features

1. Easy selection of SCI and SCE Measurement modes 2. Use technology to monitor and compensate for Illuminant changes in real time with higher accuracy 3. Equipped with intelligent Operating system, with large size color touch screen, clear at a glance, easy to operate 4. Camera positioning, the measured object can be directly observed through the display screen, which is convenient and accurate for positioning 5. Large-capacity memory space 10,000 sets of tests can be easily handled, and on-site comparison and analysis are more leisurely 6. Large capacity and high quality lithium battery, easy to solve the battery life problem 7. USB, WIFI communication, can easily complete the measurement data transmission with the PC

Principle

The PSC-30 Portable Colorimeter uses D/8 measurement structure, which can perform SCI and SCE tests at the same time, and analyze Color characteristics through Light spectrum measurement. The device is equipped with an intelligent Operating system, which is powered by a large-size color touch screen and a large-capacity lithium battery to realize one-click operation and complete measurement reading and analysis in one step.

Applications

Spinning & weaving Printing and dyeing, Coatings, Rubber and plastic, Consumer electronics

Standards

CIE、GB

Measurement geometry
D/8°
Light spectrum Measurement Range
400-700nm
Standard Observer
2 ° and 10 °
Light spectrum reflectance Measurement Range
0-175%
Color space
CIELabCh, CIELab, CIELCh, HunterLab, XYZ, CIELuv, CIE1960UCS, CIE1976UCS, yellowness index, shade index, luminance factor, whiteness index
Color difference formula
CIELab、CIELch、CIELuv、CMC、CIE1994、CIE2000、HunterLab、Metamerism
Measurement Repeatability
<0.03ΔE*ab 1
inter-device difference
AVG 0.2 ΔE*ab 2
Measurement aperture
Φ11/8mm
interface
USB，WIFI
Standard Accessories
USB cable, Power Adapter, CD-ROM with software and user manual, carrying case
