China TBJ-AJ-XB Automatic Film Applicator bar Lab Film Applicator High Accuracy film

Name: China TBJ-AJ-XB Automatic Film Applicator bar Lab Film Applicator High Accuracy film
Brand: zy
SKU: NB039270
Price: 1108.0 USD
Availability: InStock

$ 1108.00Ex works

Coating speed 5~ 90mm/s adjustable, meyer Rod coating accuracy of +/- 0.001mm, using brushless DC motor drive, digital displacement control, suitable for ultra-thin film and High Accuracy Spreader needs.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB039270

Service :The delivery and service By NBCLab.Com

Overview

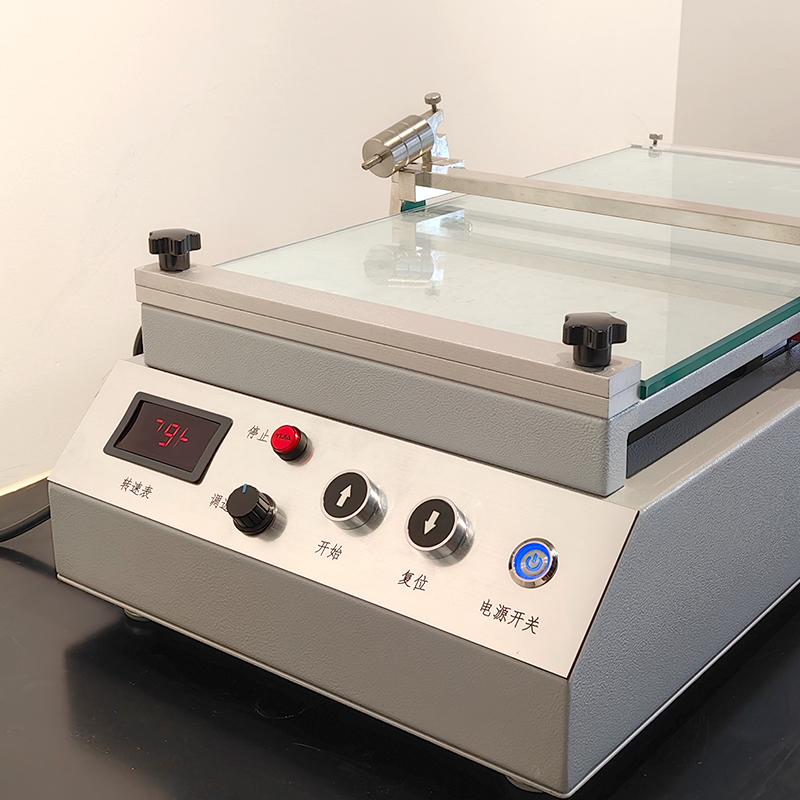

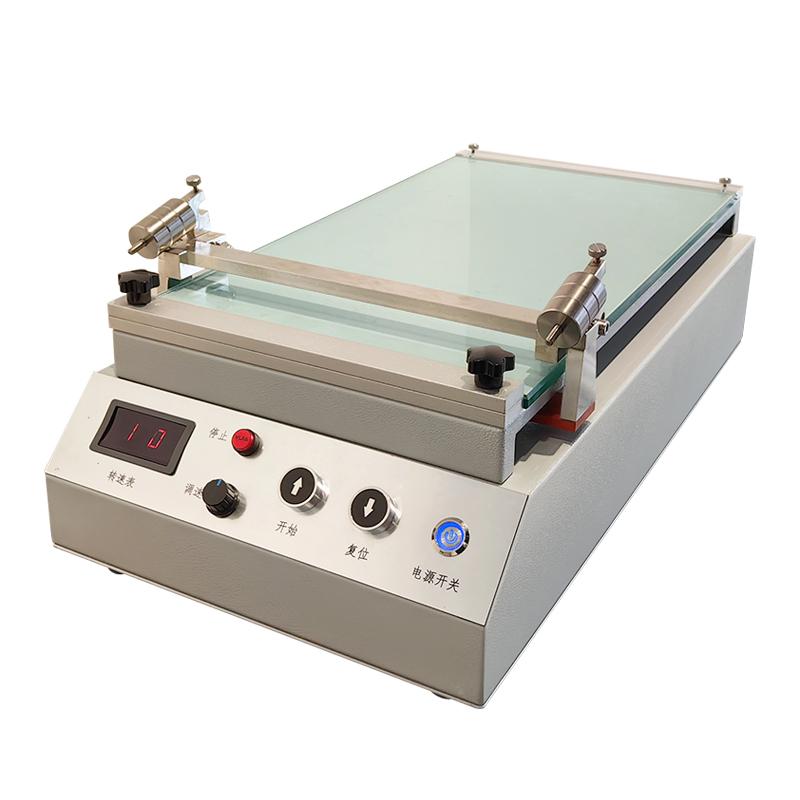

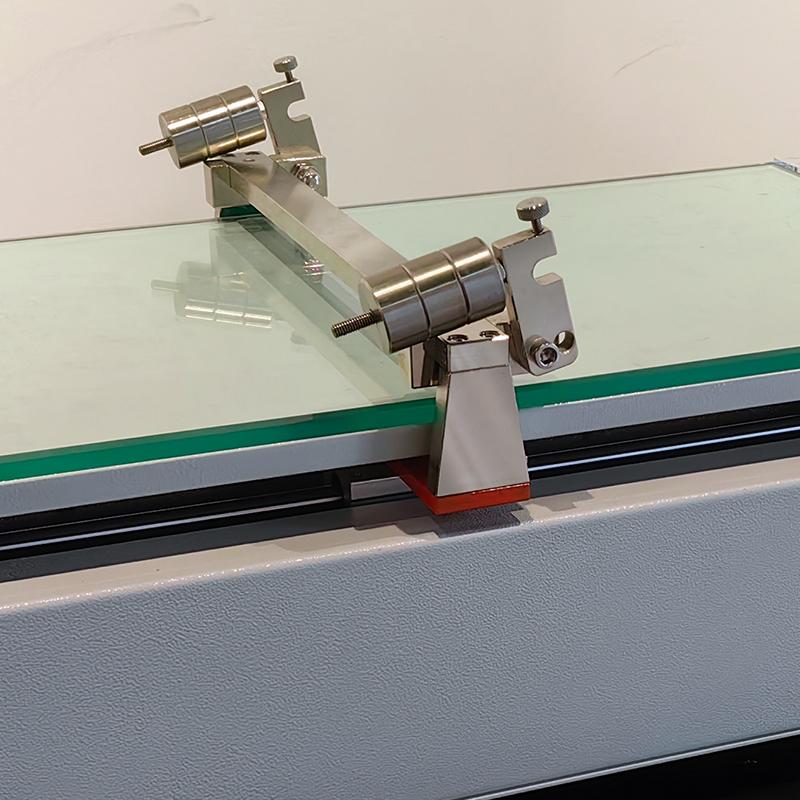

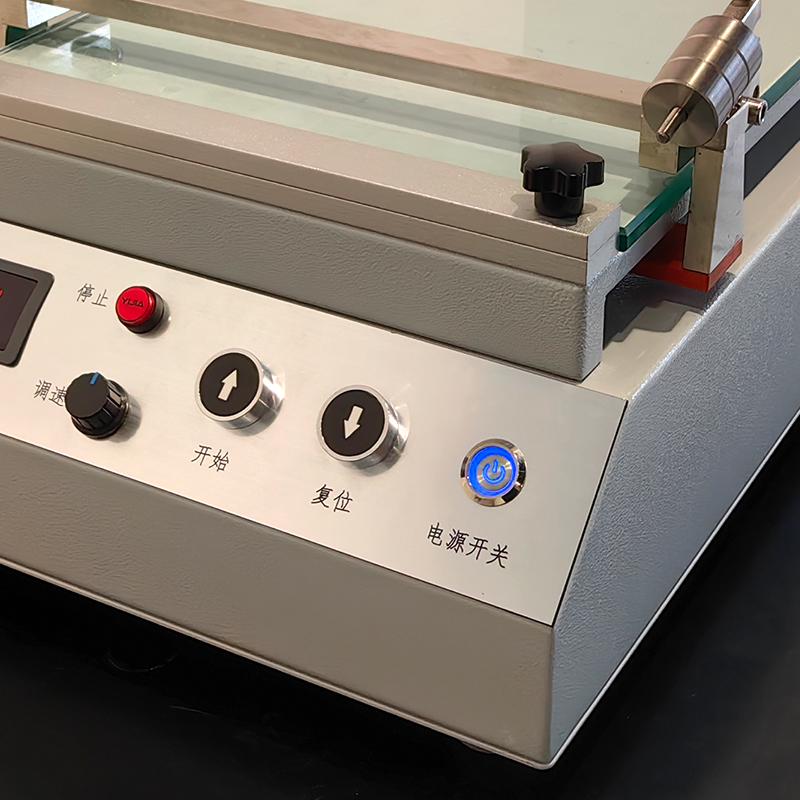

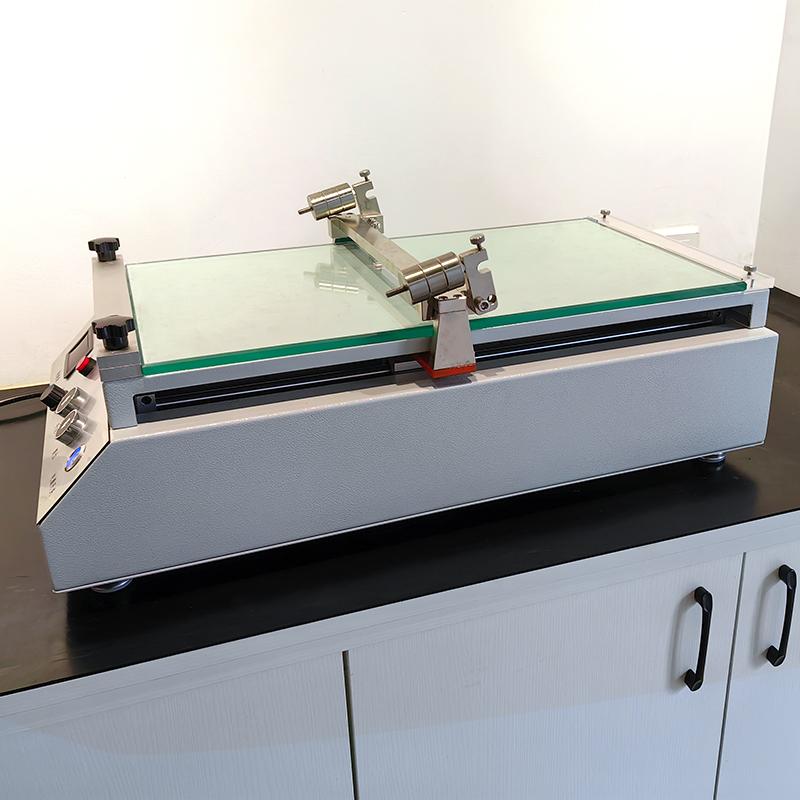

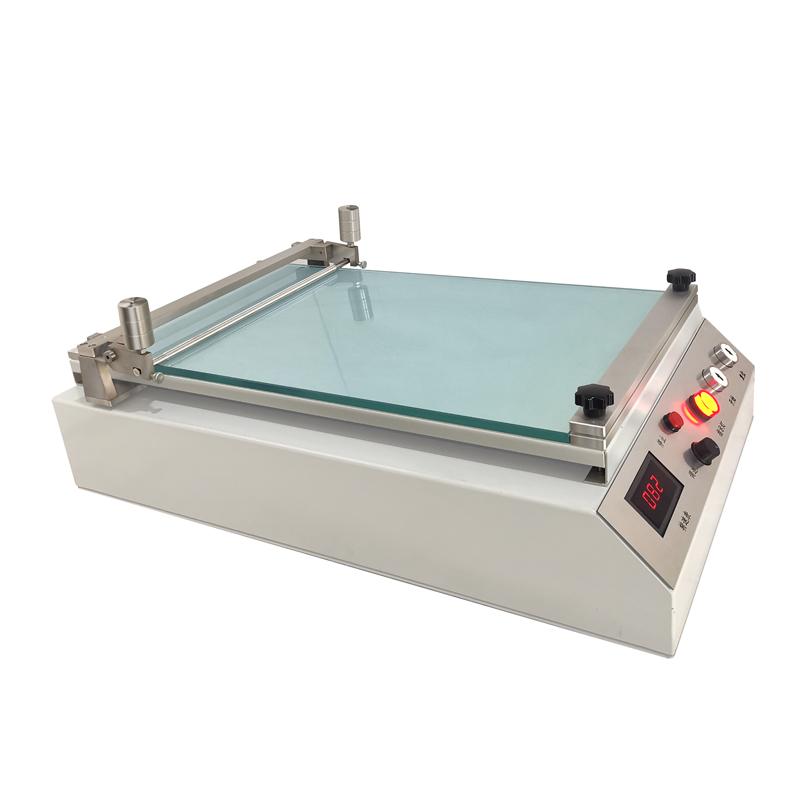

Bar Lab Film Applicator is a basic experimental small Coater specially customized by NBchao. The model is TBJ-AJ-XB. It can be used with bar Film Applicator for mobile film. It is mainly designed for users with ultra-thin film, high requirements for film accuracy and insufficient budget. The basic model does not have heating and Vacuum chuck functions, but with High Accuracy imported bar, the cost performance is very high.

Features

1. Basic design, suitable for users with limited budgets 2. With High Accuracy import bar, Spreader accuracy up to +/- 0.001mm 3. Brushless DC motor drive, stable operation 4. Adjustable coating speed range 5~ 90mm/s 5.The application length 0-450mm can be set arbitrarily 6. effective coating area 450 * 300mm 7. Special process requirements can be customized

Principle

Automatic Film Applicator Spreaders accurate wet-film on different substrates by controlling the speed of the Spreader and the pressure applied to the Film Applicator. The bar coating method is used and driven by a brushless DC motor to realize the control of different speeds and displacement accuracy, which greatly improves the reproducibility of the film.

Applications

Lab Spreader Test, Ultra-thin film preparatory, High Accuracy film application

Steps

1. Spreader substrate and bar Film Applicator 2. Set application length and coating speed 3. Start the device for automatic filming 4. Remove the sample after completing the Spreader

coating method
bar
Effective application width
300mm
Effective application length
450mm (application length 0-450mm can be set arbitrarily)
coating speed
5~ 90mm/s (< 5mm/s can be customized)
Host power supply
Voltage 220V 50HZ
Dimension
710*420*280mm
Machine weight
35 kg
meyer rod coating accuracy
±0.001mm
meyer rod coating thickness Range
1-571.5 μm (Spreader thickness according to bar model)
Spreader displacement
Digital display, different speed, displacement accuracy control
motor
Brushless DC Motor

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
