Overview

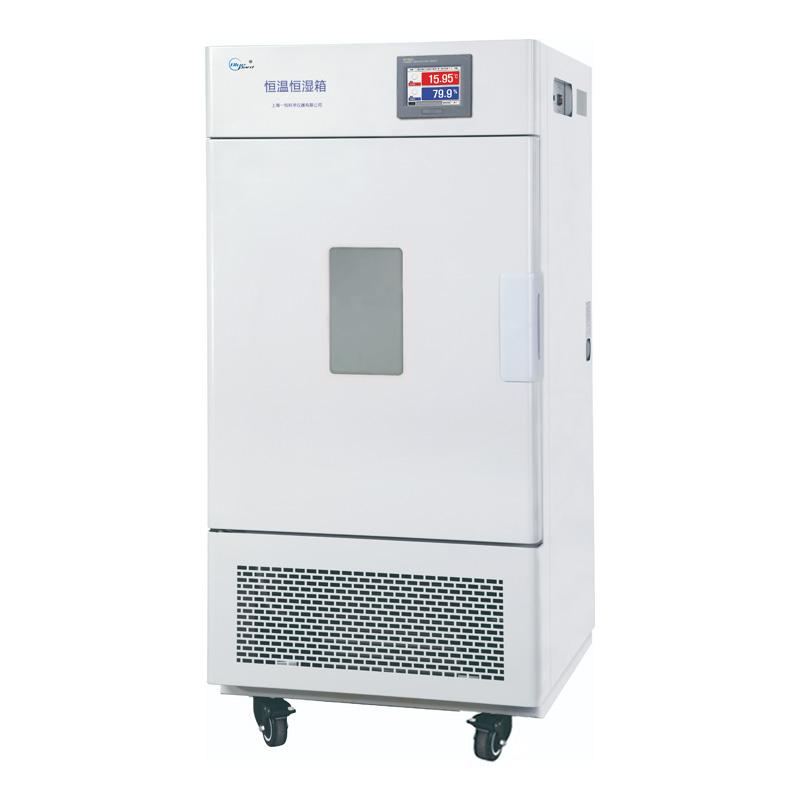

YIHENG BPS-500CL programmable humidity chamber is a beige shell, vertical structure equipment, using multi-stage programmable PID controller and TMHM equilibrate Conditioning method to ensure accurate temperature and humidity control. Temperature range is -10~ 100 ℃, Humidity Control Range is 35~ 95% RH, Input Power is 4150W.
Features
1. Safety function: independent temperature limit alarm system, high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection.
2. Programmable Touchscreen Controller: Large screen touch screen, Chinese and English Operating interface, 100 sets of programs 1000 segments 999 cycle step capacity, P.I.D automatic calculation function, RS-232 or RS-485 communication interface (optional).
3. Humanized design: fluorine-free design, imported 304 mirror stainless steel liner, four corners and half arc transition, free loading and unloading of shelf brackets.
4. Quality assurance: parameter power-off automatic storage, brand Compressor and circulating fan, environmentally friendly refrigerant (R134a), unique air duct circulation system, diameter φ 25mm test hole.
5. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface to display and print Humidity and Time Linear dispersion.
Principle
Using multi-stage programmable PID controller and TMHM equilibrate conditioning method, the temperature and Humidity changes are corrected in real time through the P.I.D automatic calculation function to ensure accurate and stable control. Unique air duct circulation system ensures uniform temperature and Humidity in the working room.
Applications
Constant temperature and humidity test, environment simulation test
Steps
1. Connect the power supply AC220V 50HZ.
2. Set Temperature and Humidity Parameters and Programs through Touchscreen Controller.
3. Start the operation of the equipment and monitor the operation of the screen display Linear dispersion.
4. Optional Accessories for data recording or communication.
Notice
● Ambient Temperature should be kept at 5~ 30 ℃.
● Avoid downtime caused by human touch controllers, and use the screen lock function.
● Regularly clean the box and use removable shelf brackets.
● Pay attention to safety alarm prompts, such as overtemperature or Compressor protection.
● Optional Accessories require additional configuration, such as printer or Communication interface.
