Overview

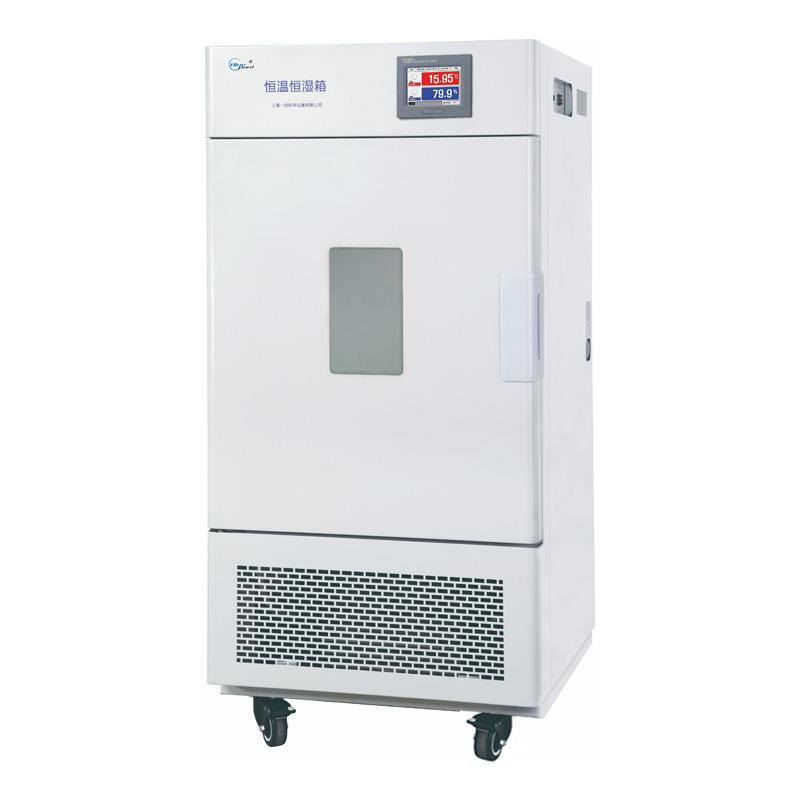

YIHENG BPS-50CL Programmable Constant Temperature and Humidity Chamber is an environmentally friendly design and high safety Constant Temperature and Humidity Chamber. Temperature range is -10~ 100 ℃, Humidity Control Range is 35~ 95% RH, and input Power is 1700W. Adopting a fully fluorine-free design, an independent temperature limit alarm system can automatically interrupt operation over temperature to ensure the safety of operation experiments.
Features
1. Humanized design: fluorine-free design; multi-stage programmable PID controller, using TMHM equilibrate Conditioning method; imported 304 mirror stainless steel liner, four corners and a half arc transition, free loading and unloading of shelf brackets.
2. Quality assurance: parameters are automatically stored and restored in the event of a power outage; brand Compressor and circulating fan, environmentally friendly refrigerant (R134a); unique air duct circulation system, uniform temperature and Humidity, with test holes.
3. Safety functions: independent temperature limit alarm system, over-temperature automatic interruption and sound and light alarm; high temperature, low temperature and over-temperature alarm, Compressor overheating, overcurrent, overload protection, fan overheating protection, water shortage protection.
4. Programmable Touchscreen Controller: Large screen touch screen, easy to operate; Chinese and English Operating interface, real-time operation Linear dispersion diagram display; 100 sets of programs 1000 segments 999 cycle step capacity; Screen lock function; P.I.D automatic calculation function; RS-232 or RS-485 communication interface (optional).
5. Convenient data processing (optional): Can be connected to the printer or 485 Communication interface, the computer displays and prints Humidity and Time Linear dispersion.
Principle
Adopting TMHM equilibrated Conditioning method, temperature and Humidity are precisely controlled by multi-stage programmable PID controller to ensure small fluctuation. Unique air duct circulation system ensures uniform temperature and Humidity in the working room and realizes High Accuracy environment simulation.
Applications
Electronics, electricians, electrical appliances, plastics, optical fiber, LCD, crystal, Inductance, PCB, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, automotive parts, Wires and cables and other parts storage, transportation, adaptability test under high and low temperature alternating heat and humidity environment.
