Overview

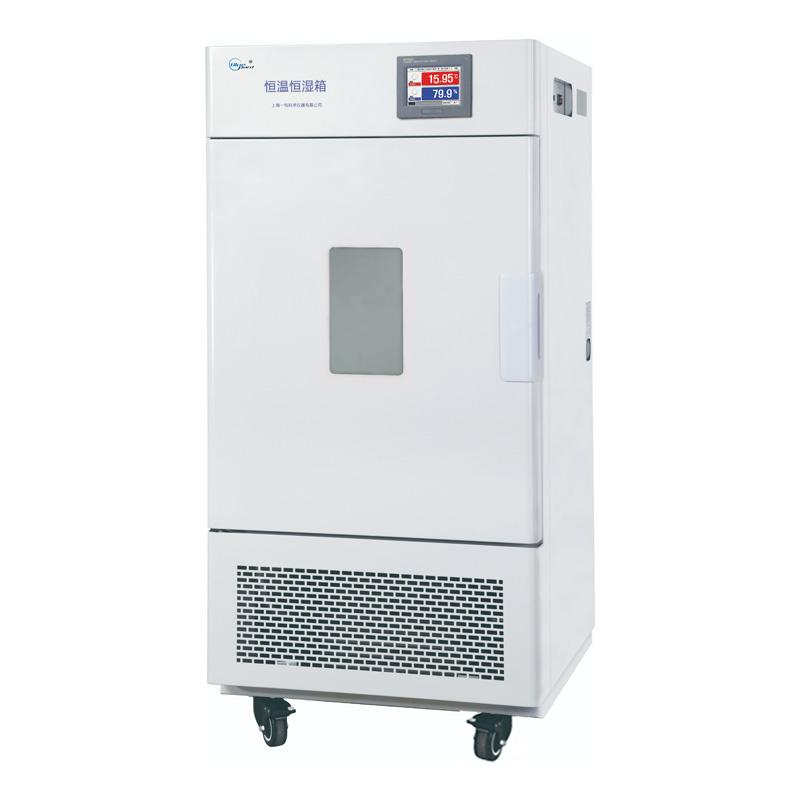

YIHENG BPS-100CL humidity chamber is a programmable humidity chamber for test specimen adaptability test in temperature and humidity changing environment. It adopts multi-stage programmable PID controller and equilibrate Conditioning method to ensure stable and accurate operation. Temperature range is -10~ 100 ℃, Humidity Control Range is 35~ 95% RH, Input Power is 1900W.
Features
1. Humanized design: fluorine-free design, multi-stage programmable PID controller, TMHM equilibrate Conditioning method, imported 304 mirror stainless steel liner, four corners and half arc transition, free loading and unloading of shelf brackets.
2. Quality assurance: Parameters are automatically stored and restored in the event of a power outage, brand Compressors and circulating fans, environmentally friendly refrigerant R134a, unique air duct circulation system, and test holes with a diameter of φ 25mm.
3. Safety functions: independent temperature limit alarm system, high and low temperature and over-temperature alarm, Compressor overheating and overcurrent overload protection, fan overheating protection, water shortage protection.
4. Programmable Touchscreen Controller: Large screen touch screen, Chinese and English Operating interface, 100 sets of programs 1000 segments 999 cycle step capacity, screen lock function, P.I.D automatic calculation function, optional RS-232 or RS-485 communication interface.
Principle
Multi-stage programmable PID controller and TMHM equilibrate conditioning method are adopted to ensure the uniform temperature and Humidity in the working room through the unique air duct circulation system, and achieve accurate temperature and Humidity control.
Applications
Crystal, Inductance, PCB, Battery, Computer, Electronics, Electrician, Electrical Appliance, Plastic, Optical Fiber, LCD, Mobile Phone, TV, Aerospace, Scientific Research, College, Automobile, Auto Parts, Wires and cables and other parts storage, transportation, adaptability test under high and low temperature alternating heat and humidity environment.
