Overview

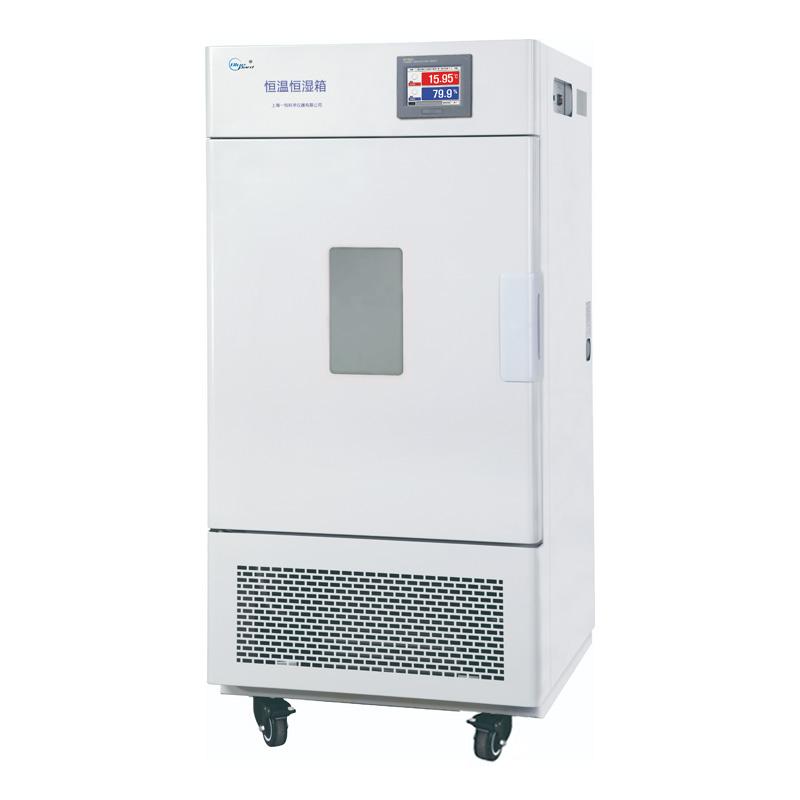

YIHENG BPS-100CA constant temperature and humidity test box is a new generation of programmable Touchscreen constant temperature and humidity test box. Temperature range is -20~ 100 ℃, Temperature resolution is 0.1 ℃, Input Power is 2250W. The product has the advantages of humanized design, high safety, smart and high mass.
Features
1. Humanized design: fluorine-free design, multi-stage programmable PID controller adopts TMHM equilibrate Conditioning method, imported 304 mirror stainless steel liner four corners and half arc transition, free loading and unloading of shelf bracket for easy cleaning.
2. Quality assurance: parameters are automatically stored and restored after power failure, brand Compressors and circulating fans use environmentally friendly refrigerant R134a, unique air duct circulation system to ensure uniform temperature and Humidity, and equipped with φ 25mm test holes.
3. Safety functions: independent temperature limit alarm system, high and low temperature and over-temperature alarm, Compressor overheating and overcurrent overload protection, fan overheating protection, water shortage protection.
4. Programmable Touchscreen Controller: Large screen touch screen, Chinese and English Operating interface optional, 100 sets of programs 1000 segments 999 cycle step capacity, screen lock function, P.I.D automatic calculation function, optional RS-232 or RS-485 communication interface.
5. Convenient data processing (optional): Can be connected to a printer or 485 Communication interface, use a computer to display and print Humidity and Time Linear dispersion.
Principle
Using multi-stage programmable PID controller and TMHM equilibrate Conditioning method, high-efficiency temperature Humidity control is achieved through brand Compressor and circulating fan combined with environmentally friendly refrigerant R134a, and unique air duct circulation system ensures uniform working room temperature Humidity.
Applications
Electronics, electricians, electrical appliances, plastics, optical fibers, LCD, crystals, Inductance, PCB, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, automotive parts, Wires and cables and other parts Storage, transportation and use adaptability test under high and low temperature alternating heat and humidity environment
Steps
1. Set parameters: Set the Humidity program through the Touchscreen controller.
2. Start operation: After confirming the parameters, start the equipment for testing.
3. Monitoring process: Monitor the test by displaying the real-time operation Linear dispersion chart on the screen.
4. Data processing: Optional connection to a computer or printer for data storage and playback.
Notice
If the temperature exceeds the limit, the operation will be automatically interrupted and sound and light alarms will be issued to ensure safety.
Avoid touching the controller screen artificially to prevent downtime.
● Ambient Temperature should be kept at + 5~ 30 ℃.
● Power supply voltage is AC220V 50HZ to ensure matching.
● Regularly check the Compressor, fan and other components to prevent overheating and overload.
