Overview

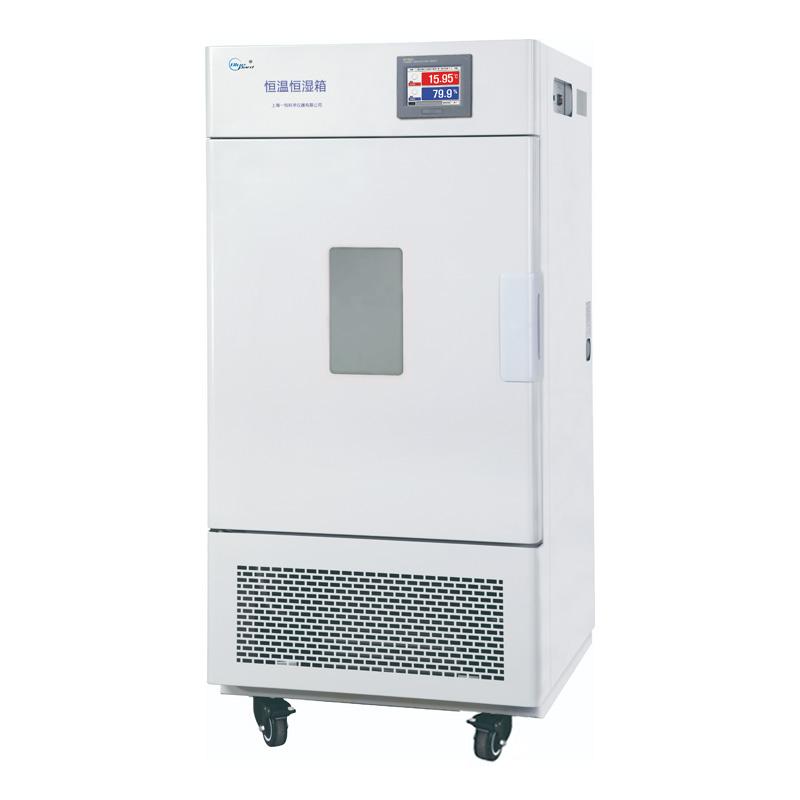

YIHENG BPS-800CL Programmable Constant Temperature and Humidity Chamber adopts programmable Touchscreen controller, which shows clear and intuitive display and high intelligent control accuracy. Temperature range is -10~ 100 ℃, Temperature resolution is 0.1 ℃, input Power 8050W, can realize user-defined parameters and has cooling function.
Features
1. Humanized design: fluorine-free design, multi-stage programmable PID controller adopts TMHM equilibrate Conditioning method, imported 304 mirror stainless steel liner four corners and half arc transition and shelf bracket can be freely loaded and unloaded.
2. Quality assurance: Parameters are automatically stored in the event of a power outage and resume operation after power on, brand Compressors and circulating fans use environmentally friendly refrigerant R134a, and unique air duct circulation system ensures uniform temperature and Humidity with test holes.
3. Safety functions: independent temperature limit alarm system, high and low temperature and over-temperature alarm, Compressor overheating and overcurrent overload protection, fan overheating protection, water shortage protection.
4. Programmable Touchscreen Controller: Large screen touch screen, Chinese and English Operating interface optional, 100 sets of programs 1000 segments 999 cycle step capacity, screen lock function, P.I.D automatic calculation function, optional RS-232 or RS-485 communication interface.
Principle
Using multi-stage programmable PID controller and TMHM equilibrate conditioning method, high-efficiency refrigeration and temperature Humidity control are achieved through brand Compressor and circulating fan combined with environmentally friendly refrigerant R134a, and unique air duct circulation system ensures uniform working room temperature Humidity.
Applications
Electronics, electricians, electrical appliances, plastics, optical fibers, LCD, crystals, Inductance, PCB, batteries, computers, mobile phones, televisions, aerospace, scientific research, colleges, automobiles, automotive parts, Wires and cables and other parts Storage, transportation and use adaptability test under high and low temperature alternating heat and humidity environment
Steps
1. Set Temperature and Humidity Parameters and Programs via Programmable Touchscreen Controller.
2. Start the equipment to run, and monitor the real-time operation Linear dispersion diagram displayed on the screen.
3. Optional connection to a printer or computer for data recording and remote control.
Notice
• The equipment has an independent temperature limit alarm system, which automatically interrupts the operation and alarms sound and light when it exceeds the temperature.
• Pay attention to Compressor overheating, overcurrent, overload protection and fan overheating protection functions.
• Ensure that the Working Ambient Temperature is within the range of 5~ 30 ° C.
• Power supply voltage AC380V 50HZ.
• Optional accessories require additional configuration, such as embedded printer, RS485 interface, etc.
