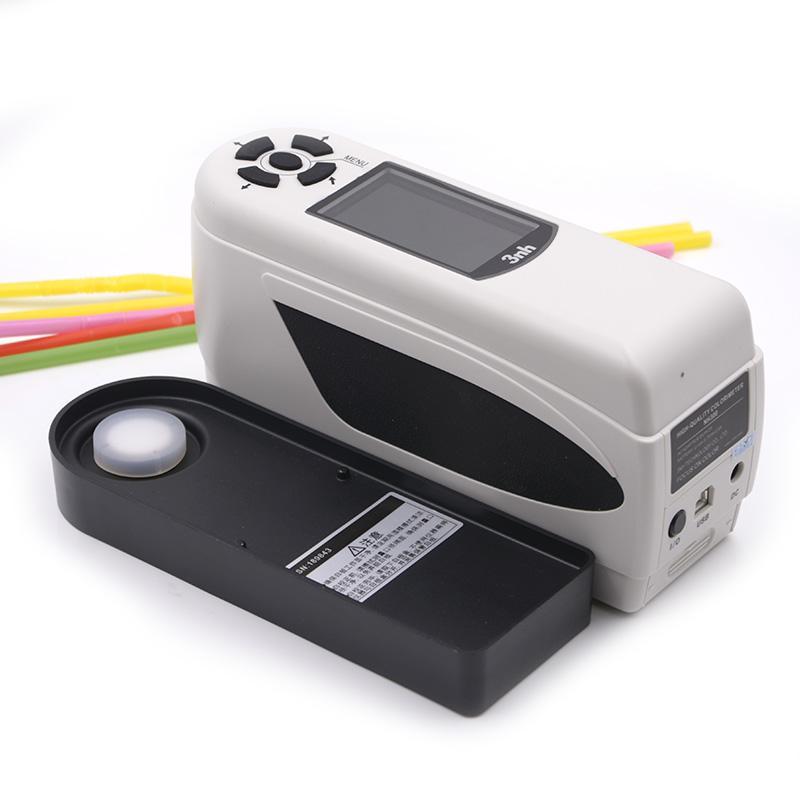

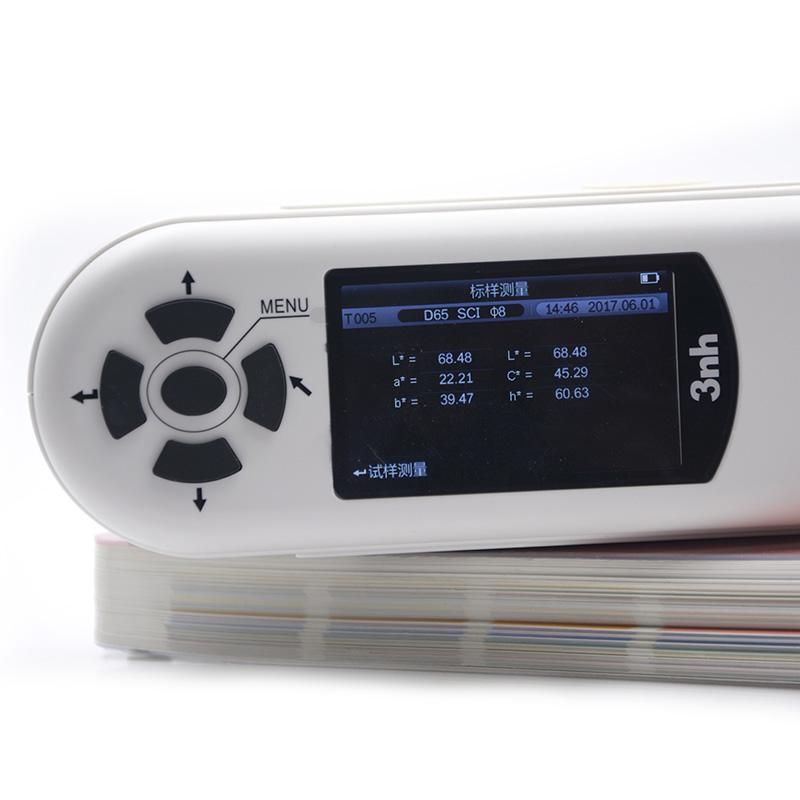

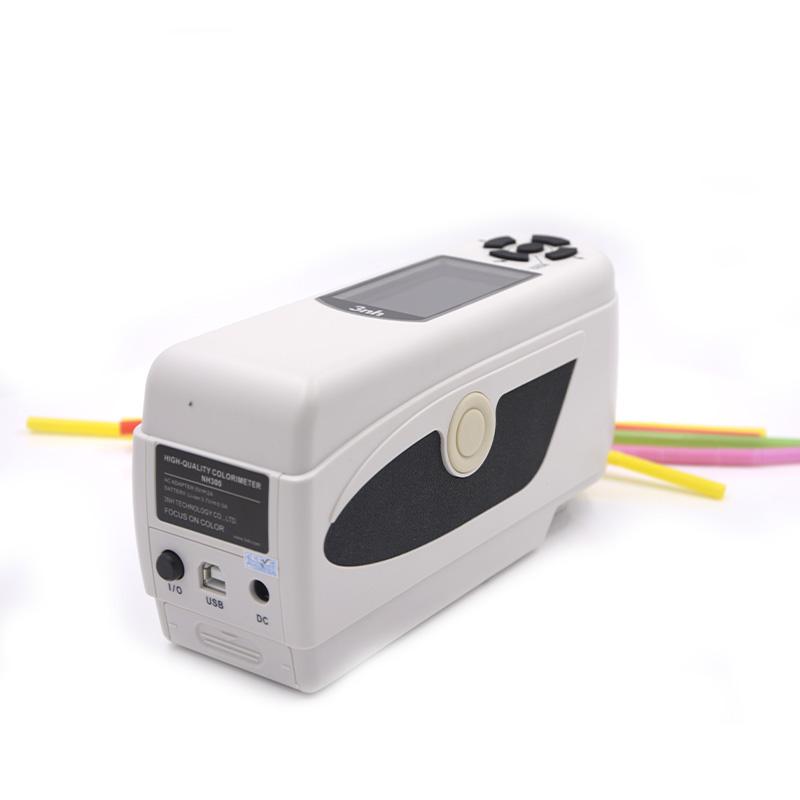

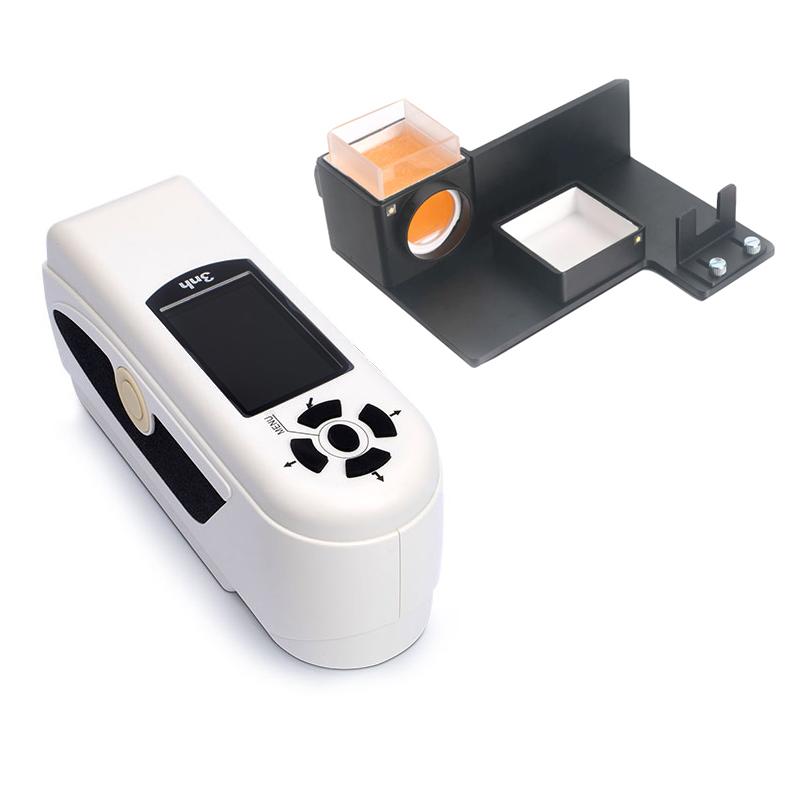

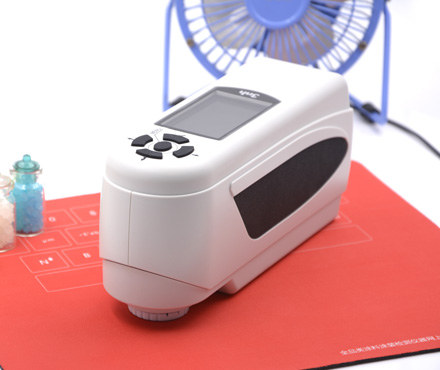

Overview
The NH300 + multifunctional test component is a color difference meter, which can realize the color measurement of liquids, coatings, ketchup, beverages, powders and other samples. The product has a measurement diameter of 8mm, Repeatability ≤ 0.07 Delta E, and only supports D65 Measurement light source. It is a common color difference meter, which combines the advantages of traditional imported color difference meters. After many tests and innovative technologies, it has the characteristics of accuracy, stability, beauty and affordability.
Features
1. Humanized design and easy operation: automatic black and white board correction, ergonomic structure, and silly Operating interface.
2, Stability measurement performance: Delta E fluctuation average less than 0.07, usually between 0.03~ 0.06; Portable horizontal structure design, good measurement time Stability.
3. Convenient and fast positioning: with lighting positioning function.
4. PC-side software function expansion: equipped with genuine software serial number and password protection, support color difference analysis, color sample library management, color difference cumulative analysis, chroma index, simulated object Color, etc.
5, power management design: the use of high-capacity lithium-ion battery, can be repeated automatic charging, charging can be measured more than 3000 times, support long-term measurement.

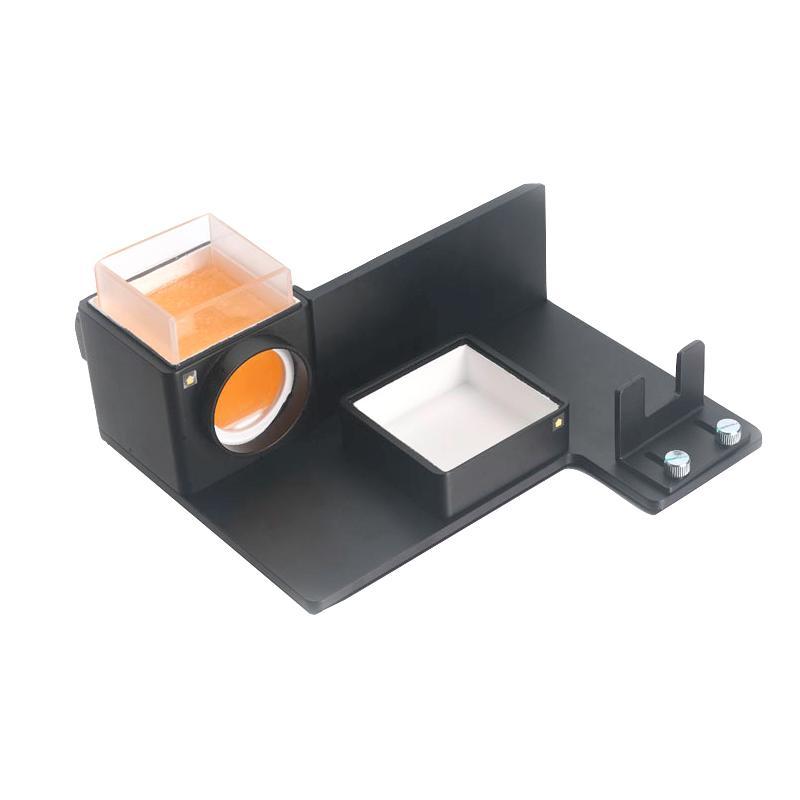

6, multi-functional test components: matching color difference meter, to achieve liquid, sauce (such as ketchup, Coatings), powder (such as coffee, powder coatings) and other color difference measurement.
Principle
NH300 color difference meter uses 8 °/d illumination mode, using LED Illuminant and silicon photodiode sensor, Color data is collected by measurement diameter φ 8mm, Color space is calculated such as CIE LAB, LCh, XYZ, and Color difference formula Delta E * ab is applied for analysis, observation angle is CIE 10 °, Measurement light source is D65, Measurement time is about 1.5 seconds.
Applications
Liquids, Coatings, Tomato Pastes, Beverages, Powders
Standards
CIE No.15、GB/T 3978
Steps
1. Automatic black and white board correction when turned on.
2. Use the light positioning function to quickly locate the Measuring location.
3. Perform color difference analysis and color sample library management through PC software.
Notice
• Operating Ambient Temperature 0~ 40 ° C (32~ 104 ° F), Storage Ambient Temperature -20~ 50 ° C.
• Illuminant life is 5 years greater than 1.60 million measurements, pay attention to the use of Frequency.
• When using a multifunctional test assembly, ensure that the assembly is complete, including the base, base baffle, Cube integrator, Cuvette, cover plate, push plate, screws, and other components.
