Overview

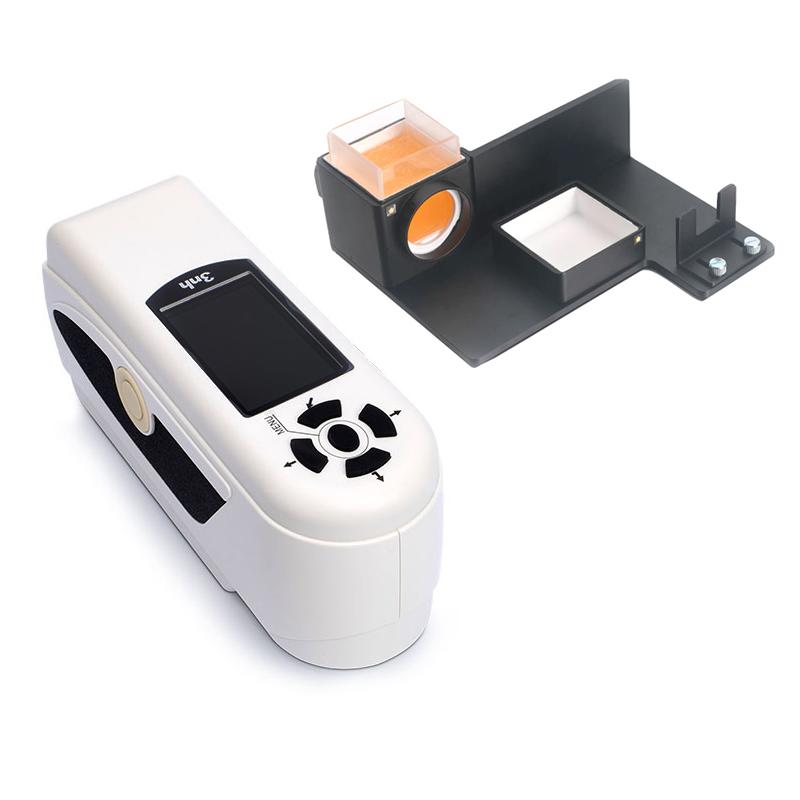

Sanenchi/3nh color difference meter NH310 + multi-function test kit is a Portable color difference meter, which combines the advantages of many traditional imported products. The instrument has a dual measurement aperture of 8mm/4mm, which can be switched for different color difference measurement occasions. It adopts Keypad Operation operation, displays data through LCD screen, uses high-quality LED Blu-ray Excitation light source device, and provides two Illuminant options of D65 and D50A, which has good accuracy and Reliability in color measurement.
Features
1. Camera viewfinder positioning
2. Automatic whiteboard verification when powered on
3. Extended diameter measurement concave part
4.8Mm and 4mm dual measurement caliber can be switched
5. Configure a rechargeable high-capacity lithium-ion battery
6. Multifunctional test components support liquid, sauce, powder and other color difference measurement
Principle
Color difference meter NH310 uses 8 °/d illumination and LED Illuminant to perform Color measurement through a silicon photodiode sensor. The instrument supports a variety of Color space and Color difference formula calculations, enabling fast and accurate analysis of sample Color differences.
Applications
Plastics, Coatings, inks, printing, Automotive, Spinning & weaving, Food, Products
Standards
South China National Measurement and Testing Center/Guangdong Academy of Measurement Sciences Appraisal Certificate, China Academy of Measurement Sciences Appraisal Certificate, CE Certification
Steps
1. Automatic whiteboard verification when powered on
2. Choose the right measurement diameter (8mm or 4mm)
3. Use the camera to view and locate the measurement area
4. Press the measurement button to measure the color
5. Read measurement data via LCD
6. Can be connected to PC software for data management
Notice
• Operating ambient temperature range is 0~ 40 ℃
• Storage Ambient Temperature -20~ 50 ℃
• Regularly calibrate the instrument
• Select the appropriate test assembly according to the measurement Sample type
• Pay attention to the battery level and charge it in time.
• Avoid strong vibrations and collisions
