Overview

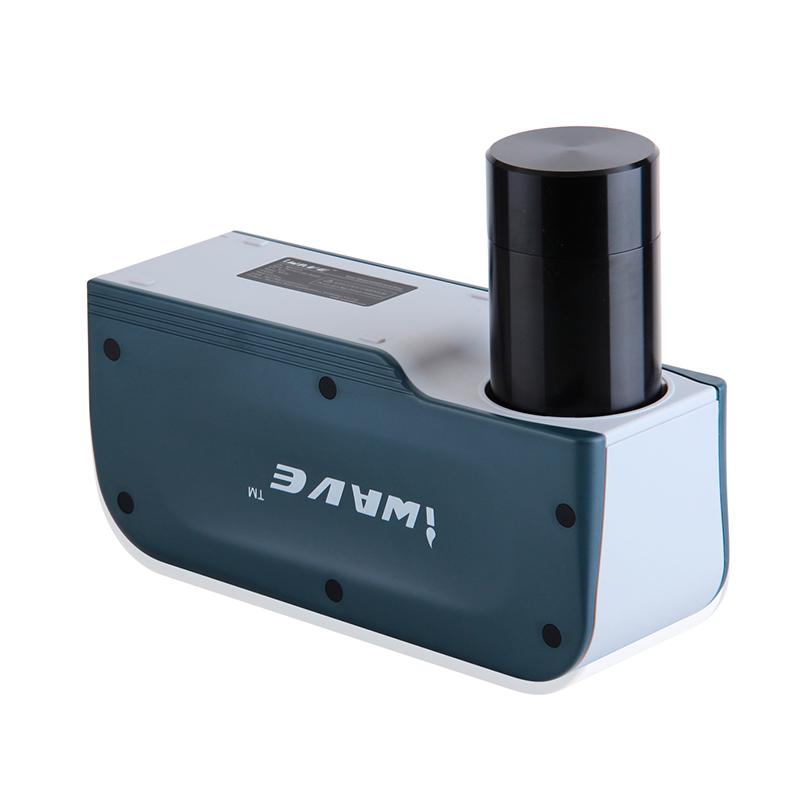

The IWAVE WF30-16mm large diameter color difference meter is a color difference measuring instrument with a measurement diameter of 16mm, dedicated to the color difference measurement of Spinning & Weaving fabrics, leather leather goods, wood furniture. The instrument has the characteristics of High Accuracy and automatic correction. The shape adopts a horizontal design, and the measurement is stable and does not leak light, which improves the measurement accuracy. It can be matched with a multi-functional test component to measure liquids, slurries, powders, and fine granular objects through Optical inspection integrating chambers and quartz containers.
Features
1.16Mm large diameter design, suitable for striped fabrics, leather, wood and large area color measurement products
2. High Accuracy measurement, Repeatability Delta E * ab < 0.05
3. Automatic correction function
4. The horizontal body design, the measurement is stable and does not leak light
5. Multifunctional test kit for measurement of liquids, slurries, powders, fine granular objects
6. Illuminant long life, 5 years more than 1.60 million measurements
7. Lithium battery has strong battery life and can be measured 5000 times when fully charged
Principle
Using 8 °/d illumination mode and photodiode array Sensor, using LED blue light to excite illumination Illuminant, the sample is measured by Optical inspection integrating chamber and quartz container. During measurement, according to the CIE 10 ° observation angle, SCI SCE light-containing mode is used to calculate Color difference formula Delta E * ab to achieve fast and accurate color difference measurement.
Applications
Spinning & weaving fabrics, leather goods, wood furniture, liquids, pulps, powders, fine granular objects
Steps

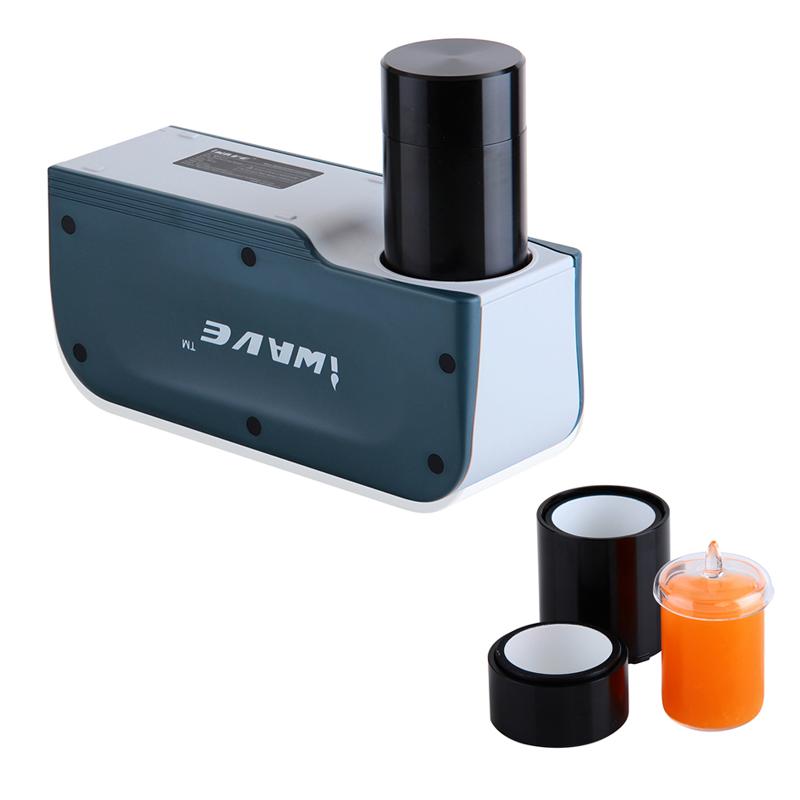

Step 1 Pour the liquid into a quartz cup
2. Fix the integrating cavity on the color difference meter
3. Put the quartz cup into the integrating chamber
4. Cover the lid of the integrating cavity
Notice
• Operating Ambient Temperature 0 ° C -40 ° C (32 ° F -104 ° F), relative humidity below 85% and no condensation
• Storage Ambient Temperature -20 ℃ -50 ℃, relative humidity below 85% and no condensation
• Optional Accessories include Liquid Test Kit, Powder Test Kit, Micro Printer
