Overview

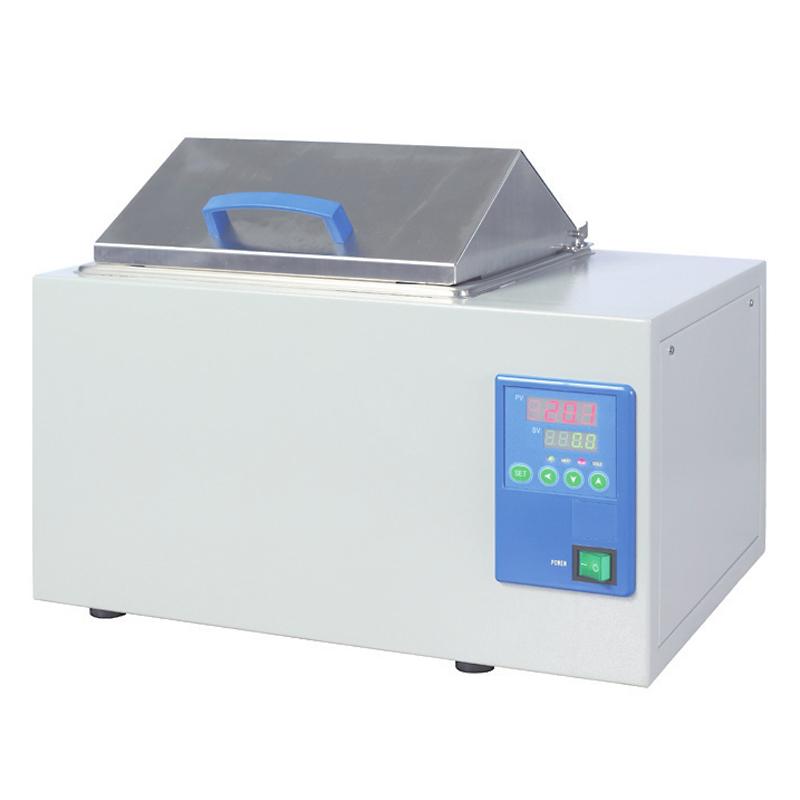

YIHENG BWS-12 Precision Thermostatic water bath is a high-grade Thermostatic water bath for direct or auxiliary heating in the laboratory. The input Power is 800W and the effective volume is 11L. The product breaks through the defect of China sink without water shortage and anti-burning function. It adopts a stainless steel liner formed by one press, which not only has an independent water shortage and anti-air burning function, but also has an independent temperature limit safety system.
Features
1. LCD screen, one-screen display of multiple sets of data, menu-type Operating interface, with timing function, easy to observe and operate. (Optional multi-segment programmable LCD temperature controller)
2, one-time stamping forming stainless steel liner, anti-corrosion, easy to clean.
3. The stainless steel spire cover can prevent water evaporation and water dew from entering the specimen and causing pollution.
4. It has the function of water shortage and air burning. If there is a water shortage phenomenon, the heating device will be cut off immediately, and the sound and light alarm will prompt the operator to ensure the safe operation of the instrument without accidents.
5. Can be connected to micro printer, 485 Communication interface or USB Interface. (optional)
Principle
Thermostatic water bath uses Microcomputer Control mode to achieve precise temperature control through internal/external circulation system. Temperature range is 5~ 100 ℃, Temperature Fluctuation is +/- 0.2 ℃, Temperature resolution is 0.1 ℃.
Applications
Biology, chemistry, physics, plants, chemicals
Steps
1. Connect the AC220V 50HZ power supply
2. Set the required temperature through the LCD menu Operating interface
3. Select the timing function as required
4, start the heating and circulation system
5. Monitor the running status, automatically cut off the heating and alarm when there is a lack of water
Notice
• Power supply voltage AC220V 50HZ before use
• Pay attention to the water shortage alarm prompt and replenish the water volume in time
Keep the liner clean to prevent corrosion
• Use a spire cover to prevent water evaporation and contamination of samples
• Optional functions require additional corresponding accessories
