Overview

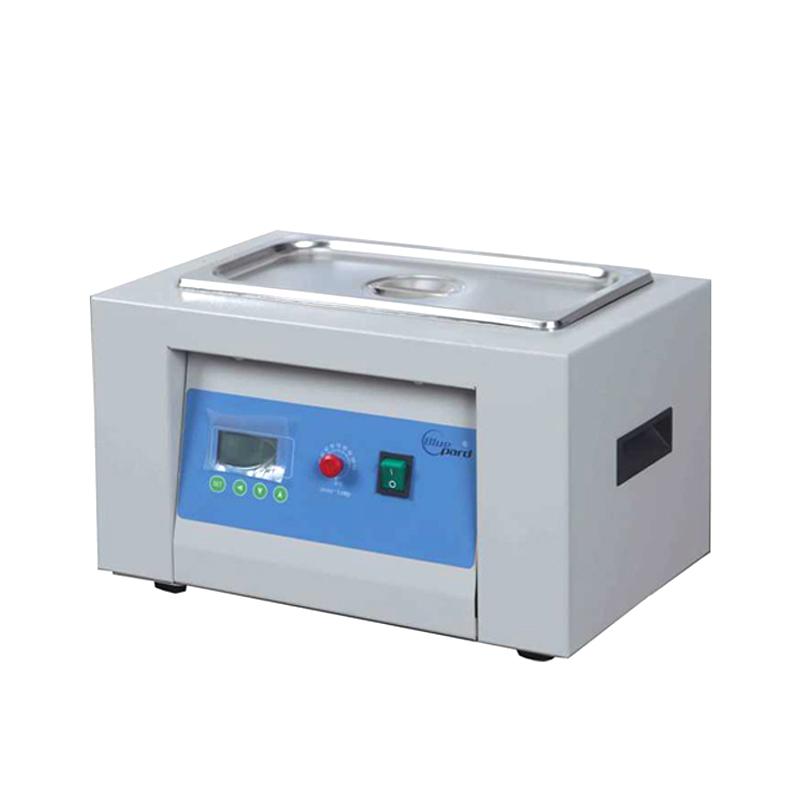

YIHENG BWS-5 Thermostatic water bath Water bath is a two-beaker hole Thermostatic water bath Water bath, which integrates the sink and the Water bath to achieve a dual-use. The product has a Temperature range of RT + 5~ 99 ° C, Power consumption is 500W, thermostatic Fluctuation is accurate to +/- 0.3 ° C. It has the function of water shortage and air burning and an independent temperature limit alarm system to ensure safe operation.
Features
1. Water bath and sink are integrated, and one tank is dual-use.
2, one stamping forming stainless steel liner, easy to clean.
3, LCD screen, multiple sets of data one screen display, Menu Operating interface, with timing function, easy to understand.
4, stainless steel grid shelf, can cover the heating and Sensor and other important components, to avoid damage.
5, beaker hole size can be adjusted arbitrarily.
6. Adopt a one-time molding flat stainless steel cover.
7. Optional with a pointed top cover to prevent water evaporation and dew from entering the test sample and causing contamination.
8. Optional testtube clip.
Principle
BWS-5 Thermostatic water bath Water bath adopts microcomputer Control mode, and realizes accurate temperature control through internal/external pump circulation system. Temperature range is RT + 5~ 99 ℃, Temperature Fluctuation is +/- 0.3 ℃. The product has the function of water shortage and air burning and independent temperature limit alarm system to ensure stable temperature and safe operation.
Applications
Laboratory thermostatic test, sample heating, water bath treatment
Steps
Connect the AC 220V 50Hz power supply.
2. Set temperature and time parameters through the LCD menu Operating interface.
3. Adjust the size of the beaker hole as needed.
4. Start the device and start working.
5. Turn off the power after use.
Notice
● Pay attention to the function of water shortage and air burning. If there is water shortage, the heating device will be cut off and the sound and light alarm will be issued.
The independent temperature limit alarm system protects the safety of the sample.
● Pay attention to high or low temperature and over-temperature alarm prompts.
● Optional micro printer, 485 communication software and interface or USB Interface for data processing.
