Overview

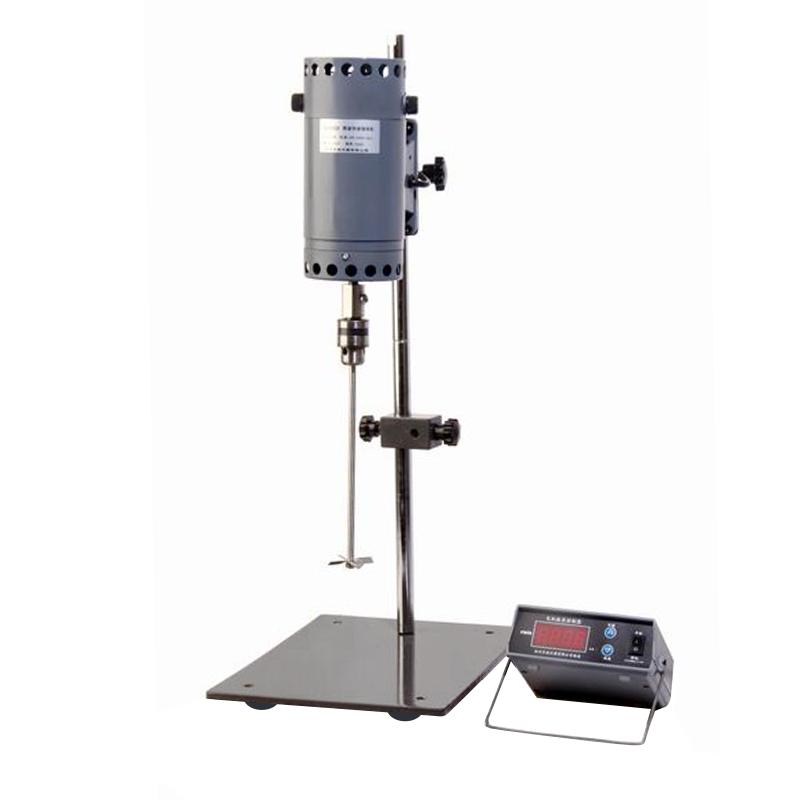

QIWEI JB-120D Stirrer is a laboratory Stirrer with high Rotation speed, high output power, low noise, reliable operation, smooth speed regulation, and convenient use. The Stirrer consists of a series motor with soft mechanical characteristics and a low-noise deceleration mechanism. It is equipped with a microcomputer digital display timing control instrument with an output power of 120W.
Features
1. Rotation speed, output power
2. Low noise and reliable operation
3. Smooth speed regulation, easy to use
4. Equipped with microcomputer digital timing control instrument
5. Impeller is made of stainless steel
Principle
Stirrer uses an electronic constant force speed control circuit, and the number directly displays the rotating shaft Rotation speed, which can adapt to the different test needs of the laboratory, and can directly calculate the relationship between the stirring, dispersing linear velocity and chemical reaction rate according to the displayed rotating shaft speed, providing correct process data for large-scale production. The stirring head generates a swirl/spin tangential high linear velocity under the high-speed drive of the motor, and the material produces strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing and dispersion.
Applications
Heavy industry, light industry, chemical industry, scientific equipment
Steps
1. Power supply voltage 220V 50HZ
2. Set the required Speed range 100~ 2000rpm
3. Installation of Stainless Steel Impeller (specification φ 8 * 300mm)
4. Start Stirrer for mixing and dispersing operations
5. Use digital timing control instrument to monitor Rotation speed
Notice
• Power supply voltage 220V 50HZ
• Rotation speed setting should be within the range of 100~ 2000rpm
• Impeller stainless steel to avoid corrosion
• Pay attention to safety during operation to prevent material splashing
• Regularly check the operating status of the equipment to ensure reliability
