Overview

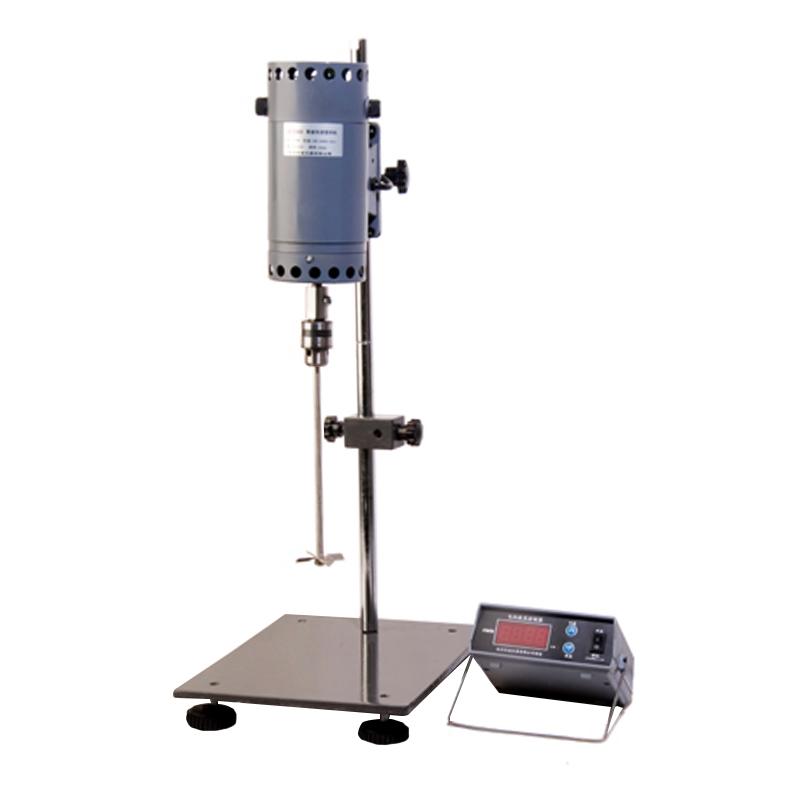

QIWEI JB-200D Stirrer (digital display constant speed) is a special mixing equipment for laboratories. It has the characteristics of high Rotation speed, high output power, low noise, reliable operation, smooth speed regulation, and convenient use. The Stirrer consists of a series motor with soft mechanical characteristics and a low-noise deceleration mechanism. It is equipped with a microcomputer digital timing control instrument with an output power of 200W.
Features
1. Rotation speed, high output power
2. Low noise and reliable operation
3. Smooth speed regulation, easy to use
4. Equipped with microcomputer digital timing control instrument
5. Using a series motor with soft mechanical characteristics and a low-noise deceleration mechanism
Principle
Stirrer adopts electronic constant force speed control circuit, and the number directly displays the rotating shaft Rotation speed, which can adapt to different experimental needs in the laboratory. The stirring head generates a swirl/spin tangential high linear speed under the high-speed drive of the motor, and the material produces strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force, so that the fluid material can withstand thousands of shearing and high-frequency mechanical effects per minute, so as to achieve the effect of efficient mixing and dispersion.
Applications
Heavy industry, light industry, chemical industry, scientific equipment
Steps
1. Connect the power supply (220V 50HZ)
2. Set the required Rotation speed (100~ 2000rpm range)
3. Installation of Stainless Steel Impeller (φ 8 * 300mm)
4. Start the equipment for mixing operation
5. Rotation speed monitoring by digital instrument
Notice
• Power supply voltage 220V 50HZ
• Rotation speed adjustment should be within the range of 100~ 2000rpm
• Use matching stainless steel Impeller (φ 8 * 300mm)
• Note that the Dimension of the equipment is 350 * 250 * 750mm
• The weight of the whole machine is 17kg, pay attention to safety when handling
