Overview

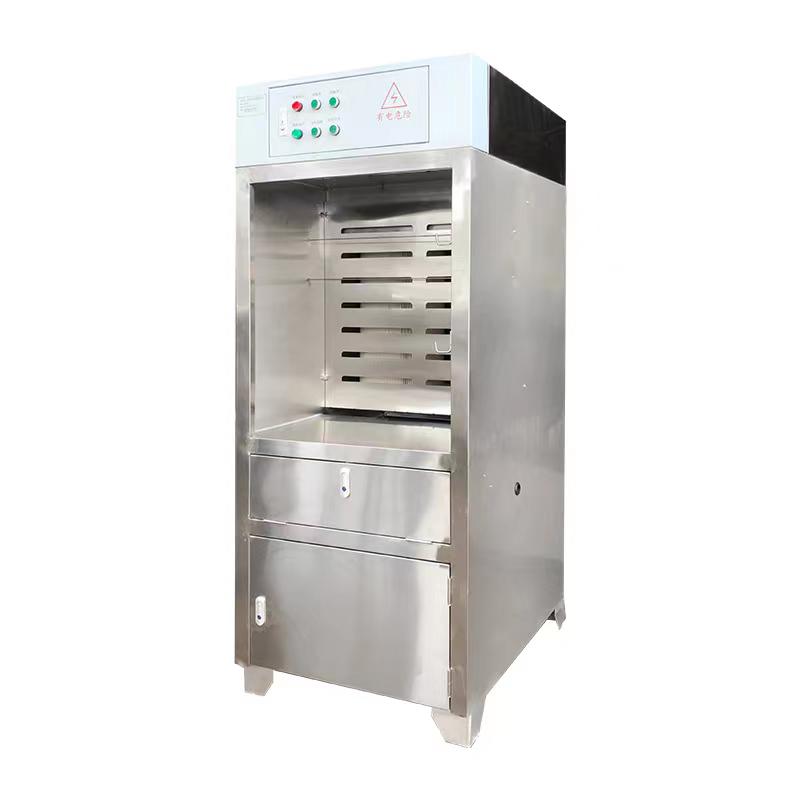

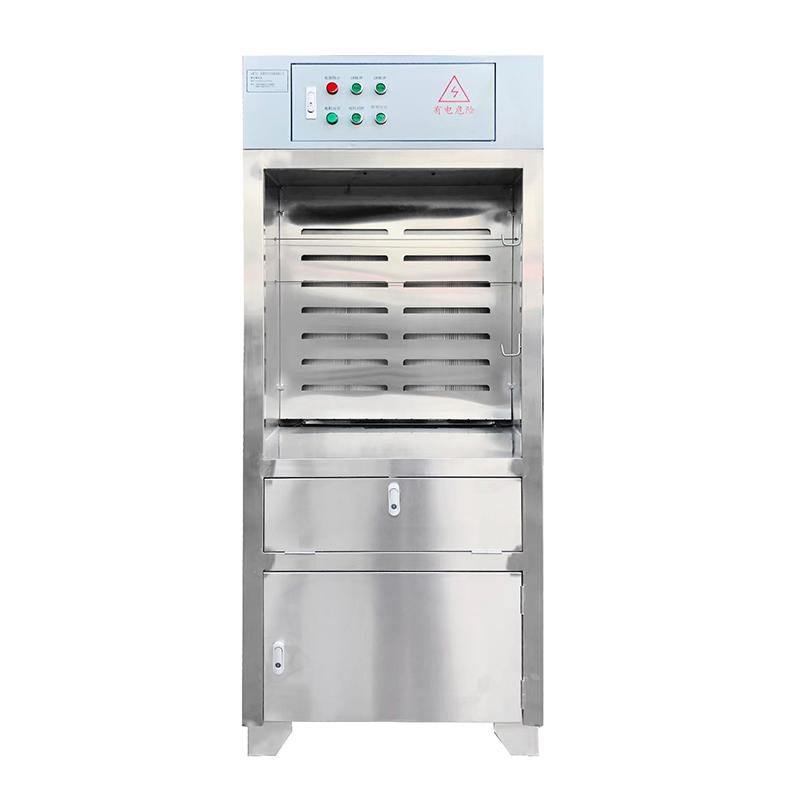

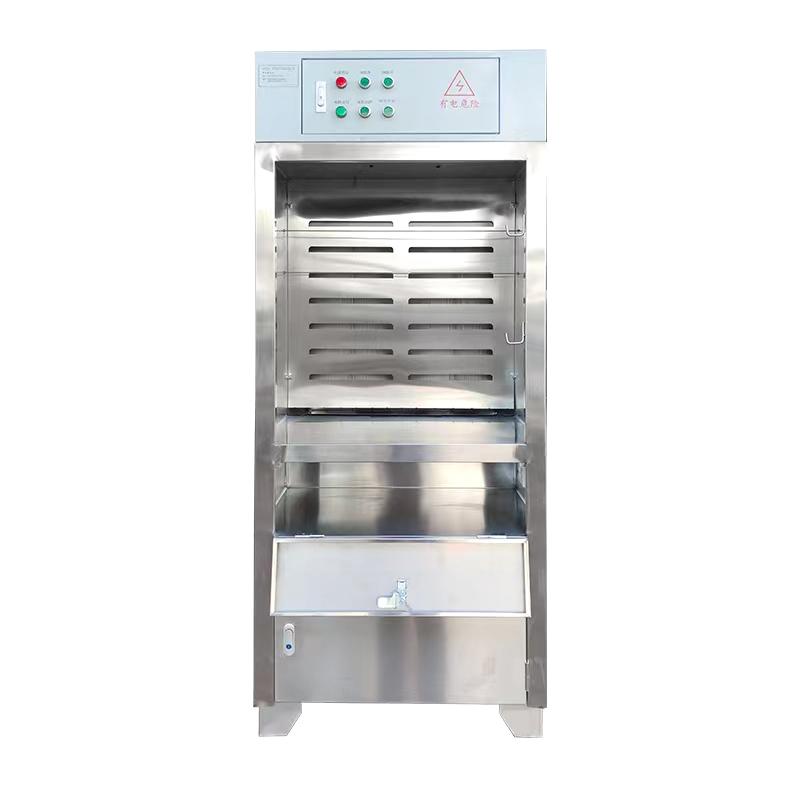

QITIAN double filter powder cabinet is a plastic powder recycling machine made of stainless steel, with an electric box size of 190x75x95cm, a total height of 205cm, equipped with a 1.5kw motor and a 220v Power supply voltage. The product design is simple and practical. Through double filter elements and double pulse powder cleaning, Laminating accuracy reaches 0.3 microns, filter element diameter 32cm, and comes with waterproof and dustproof Philips illumination lamp and air storage tank.
Features
1. Adopt external exhaust design to efficiently recover scattered dust according to aerodynamic principles.
2. Equipped with a unique Back flushing device to achieve automatic timing powder cleaning, convenient and fast cleaning.
3. Use a good filter element for powder gas separation, Laminating accuracy is high, up to 0.3 microns.
4. Double filter element double pulse system, fast color change, simple operation.
5. Comes with waterproof and dustproof Philips illumination lamp and gas storage tank to enhance the practicality of the equipment.
Principle
Based on the principle of aerodynamics, the plastic powder recovery machine uses an external exhaust type to suck the scattered dust into the filter element. The powder and gas are separated through a good filter element, and the powder is cleaned regularly by a stainless steel rotor type automatic Back flushing device to ensure efficient recovery and convenient operation.
Steps
Connect the power supply and ensure that the voltage is 220v.
2. Start the equipment, and the external ventilation system begins to absorb dust.
3. The filter element automatically filtrates and separates the powder gas.
4. Back flushing device regularly cleans the powder to keep the filter element unobstructed.
5. Carry out color change operation when necessary, the process is simple and fast.
Notice
• Power supply voltage check before operation meets 220v requirements.
• Regular maintenance of filter element and Back flushing device to ensure powder cleaning effect.
• Pay attention to safety protection when using the built-in waterproof and dustproof lamp.
• Gas storage tanks need to be inspected regularly to prevent leakage.
