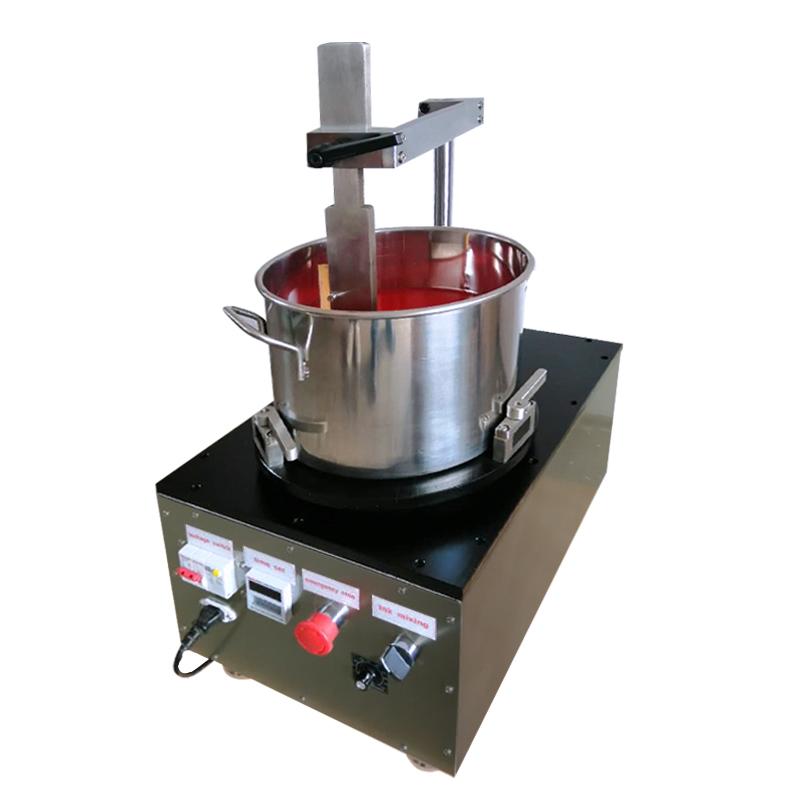

KONYO COLOR NBC-40L 40L inks Stirrer L Type Paddle Mixer 0~ 60rpm Low Speed Intermittent

Name: KONYO COLOR NBC-40L 40L inks Stirrer L Type Paddle Mixer 0~ 60rpm Low Speed Intermittent
Brand: KONYO COLOR
SKU: NB039719
Price: 2431.0 USD
Availability: InStock

$ 2431.00Ex works

Mixing method, L-shaped integral forming Impeller without screw hole easy to clean, Speed range 0~ 60rpm, direct drive to reduce power loss, can set the mixing time and equipped with moving pulley.

Model

Get Quote

Category : Laboratory Mixer

Brand : KONYO COLOR

SKU : NB039719

Service :The delivery and service By NBCLab.Com

Overview

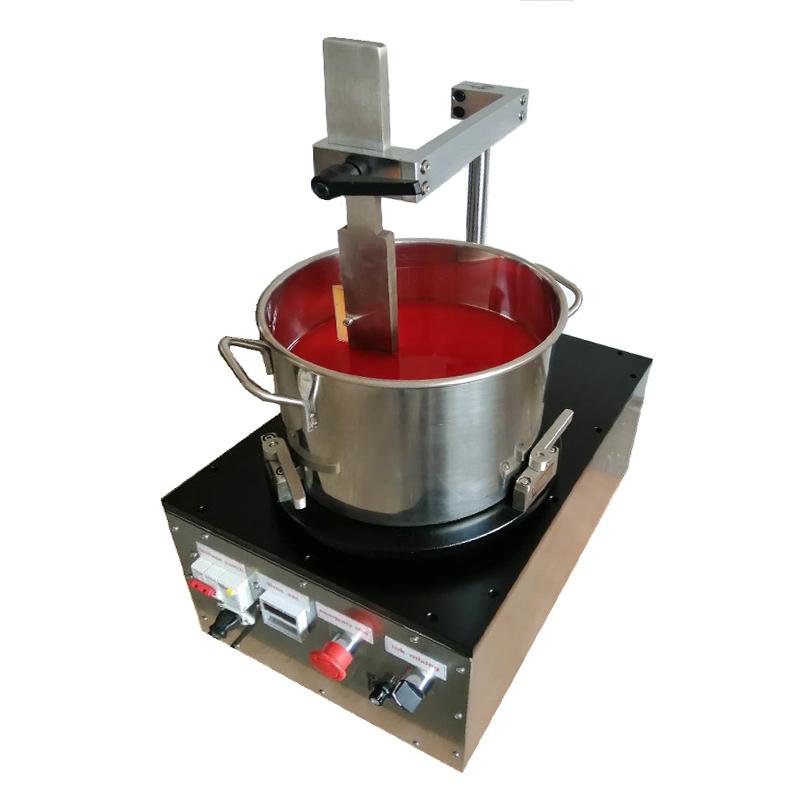

KONYO COLOR NBC-40L 40L inks Stirrer is a device designed for inks mixing, using a low-speed intermittent barrel edge Mixing method, a unique L-shaped paddle mixing design can evenly mix inks in five minutes without heating, suitable for standard 40L inks barrel operation.

Features

1. Simple and convenient operation 2. Low-speed intermittent mixing with barrel edge, unique Impeller design to realize inks flipping and cutting, mixing evenly within five minutes without heating up 3. Adjustable stirring speed 4. Easy to replace Stirrer, one-click lock ink tank 5. L-shaped paddle type stirring, the overall shape has no screw holes, and the cleaning is simple and easy 6. Direct drive mode to reduce power loss 7. The mixing time can be set, and the four-legged pulley design is easy to move

Principle

The equipment adopts a low-speed intermittent barrel edge sticking Mixing method, through the unique L-shaped paddle Impeller to flip and cut inks during the mixing process to achieve fast and uniform mixing; direct transmission mode reduces power loss and ensures mixing efficiency.

Applications

Inks mixing

Steps

1. Move the device to the operating position 2. Place the standard 40L inks bucket 3. One-click lock ink tank 4. Set the mixing time and speed 5. Stirrer the Stirrer 6. Replace or clean Stirrer after mixing

Notice

• Rated voltage to 220V • The minimum stirring amount is 5KG and the maximum is 20KG. • Make sure the ink tank is locked firmly before stirring • Regular cleaning of Impellers to maintain performance • Device weight (90-100KG)

Speed Range
0~60rpm
Power supply Voltage
220V
Input Power
1550W
Dimensions of the whole machine
620x400x910mm
Machine weight
90-100kg
Packaging Dimensions
700x500x1050mm
Mixing Tank Size
Standard 40L inks
Mixing Tank Volume
minimum quantity 5kg, maximum quantity 20kg
Encasement weight
160kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
