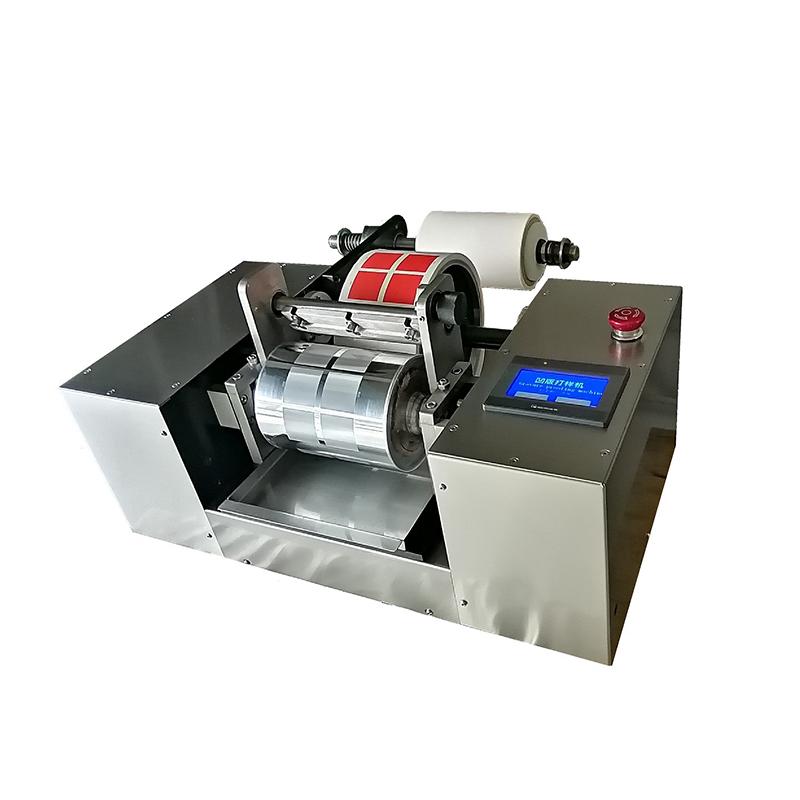

KONYO COLOR NBC-130 gravure plate coloriMeter, electric pressure system round pressing round operation

Name: KONYO COLOR NBC-130 gravure plate coloriMeter, electric pressure system round pressing round operation
Brand: KONYO COLOR
SKU: NB039728
Price: 5841.0 USD
Availability: InStock

$ 5841.00Ex works

Using electric pressure system, the printing pressure is adjustable from 0 to 2mm, the speed range is 0 to 80 Meters, low accuracy overprinting is supported, and the computer program control operation is stable.

Model

NBC-130

Get Quote

Category : Ink Proofer

Brand : KONYO COLOR

SKU : NB039728

Service :The delivery and service By NBCLab.Com

Overview

KONYO COLOR NBC-130 gravure plate colorimeter is a device specially designed for gravure printing inks proofing. It adopts circular pressing operation mode, suitable for water-based and solvent-based inks, and provides convenient proofing solutions.

Features

1. Electric pressure system 2. Round pressing mode operation 3. Adjustable printing pressure 0-2mm, printing speed of about 0-80 meters, support low accuracy overprinting 4. Adjustable printing scraper pressure, adjustable speed, equipped with computer program Control system 5. Suitable for gravure printing inks (water-based, solvent-based inks), easy to use 6. Color of inks can be detected using spectrophotometer

Principle

The equipment runs in a circular pressing mode, and the gravure plate drum cooperates with the rubber roller to adjust the printing pressure and speed under the control of the computer program to achieve uniform color development and proofing of inks.

Applications

Gravure printing inks

Steps

1. Connect the power supply 220V 50Hz 2. Adjust printing pressure and speed 3. Use standard anilox roller for proofing 4. Color of inks detected by spectrophotometer

Notice

• Ensure that the power supply meets the 220V 50Hz requirements • Check printing pressure and speed settings before operation • Clean equipment after use to maintain performance

Printing pressure
0-2mm
ink rate
0-80m
weight
100kg
Dimension
380*700*250mm
power supply
220V 50Hz
Gravure plate roller length
180mm
Gravure plate roller diameter
140mm
Roller length
130mm
roller diameter
210mm
Power
450W
Color sample Size
60 * 108Mm/grid (10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 85%, 90%, 95%, 100%, gray scale)
Standard anilox roller
20um,25um,30um,35um,40um,45um,50um,55um
operation mode
round pressing
