Overview

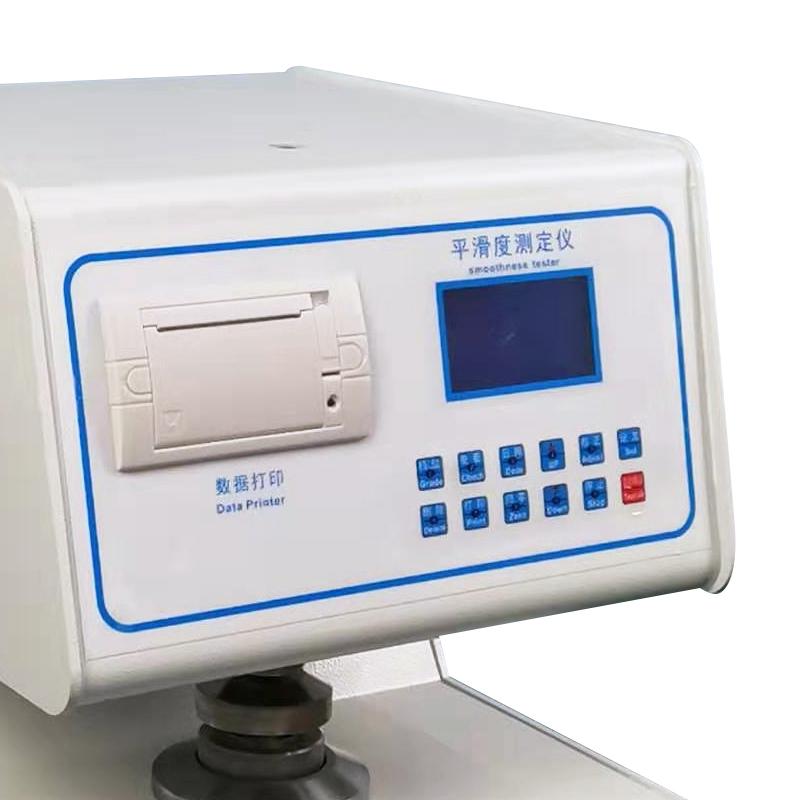

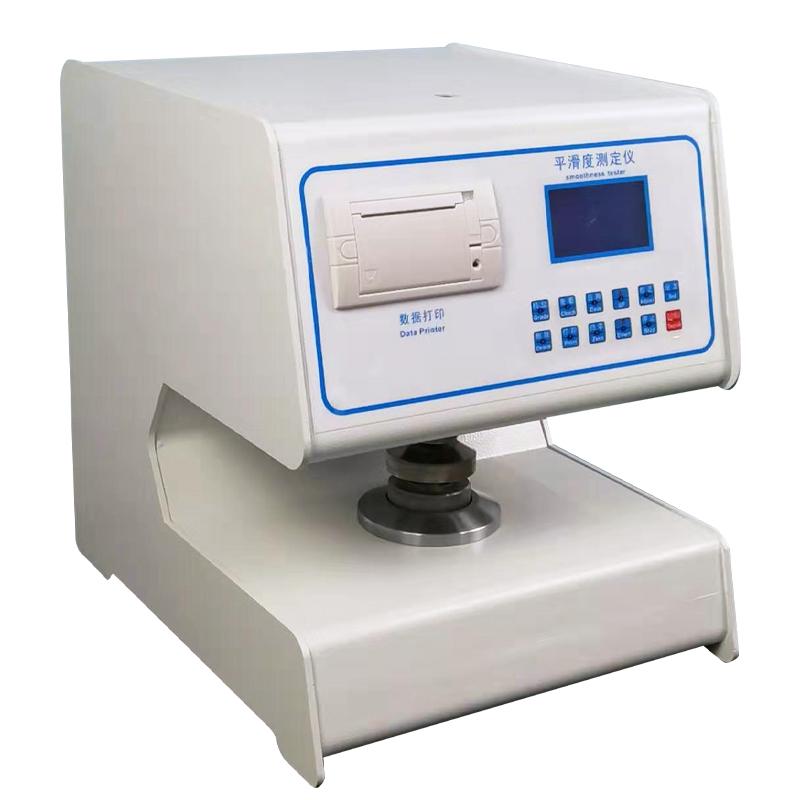

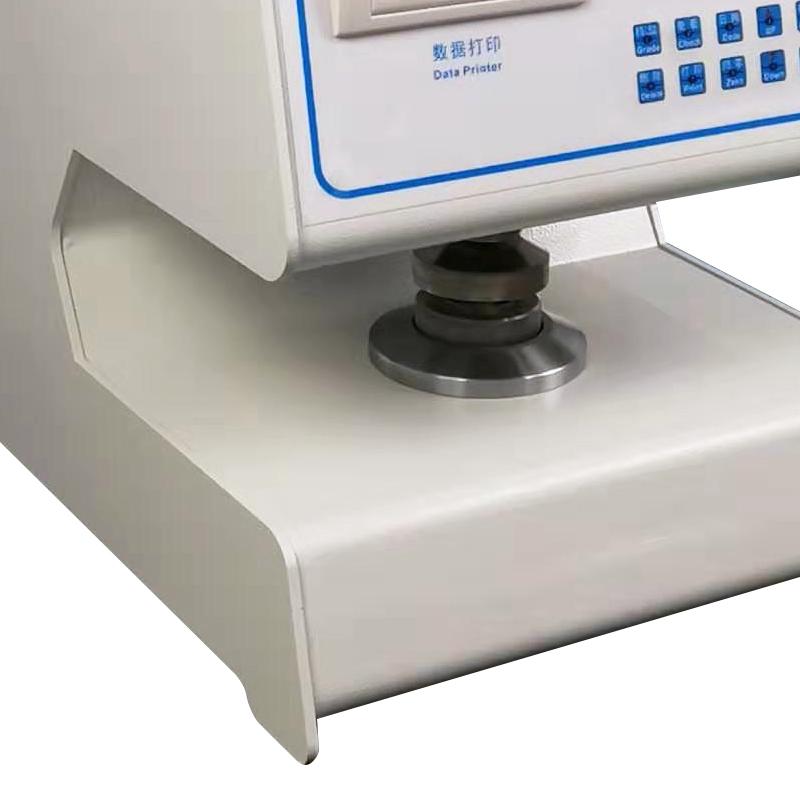

LD-PHD automatic Smoothness Tester is a special instrument for measuring paper smoothness, which is designed according to the working principle of international Buick (Bekk) smoothness instrument. The instrument adopts cam and spring structure to replace the traditional lever and weight, and automatically loads the standard pressure through synchronous motor swirl/spin to reduce the volume and weight; equipped with 3.5-inch screen to display Chinese and English menus, easy to operate, one-click test, using High Accuracy Sensor and imported oil-free vacuum pump and other components, with parameter testing, conversion, display, memory, printing and powerful data processing capabilities, Data storage on the main chip can be viewed through the touch screen, suitable for papermaking, Encasement, scientific research and Quality control industries.
Features
1. One-click intelligent operation.
2, using cam and spring structure design, the measurement of the single chip automatic control synchronous motor swirl/spin loading pressure, paper clip.
3. Adopt 3.5-inch LCD display, Chinese and English menus, and display various data in real time.
4. Two-Sidedness test: By selecting the Two-Sidedness test mode, the Two-Sidedness of the same batch of samples can be tested and calculated.
5. Fast measurement: "automatic transmission" or small volume cavity measurement can be selected. Measurement time under the "automatic transmission" test does not exceed 200s, and the small volume Measurement time is only one-tenth of the large volume.
6. Degree of automation: The instrument design uses excellent devices at home and abroad, and the single-chip microcomputer performs information sensing, data processing and motion control, as well as data memory.
7. Oil-free vacuum pump: using imported vacuum pumps, it can work without refueling the vacuum pump.
8, good sealing: the use of foreign vacuum sealant and excellent sealing technology, so that the instrument sealing to meet the requirements of national standards.
Principle
According to the working principle design of the internationally accepted Buick (Bekk) smoothing instrument, the instrument eliminates the traditional lever and heavy hammer manual pressure structure in mechanical design, and innovatively uses cam and spring, and uses synchronous motor to automatically swirl/spin to load the standard pressure.
Standards
ISO 5627 "Paper and Cardboard - Determination of Smoothness (Buick Method) ", GB/T 456 "Paper and Cardboard - Determination of Smoothness (Buick Method) "
Steps
1. One-click operation for testing.
