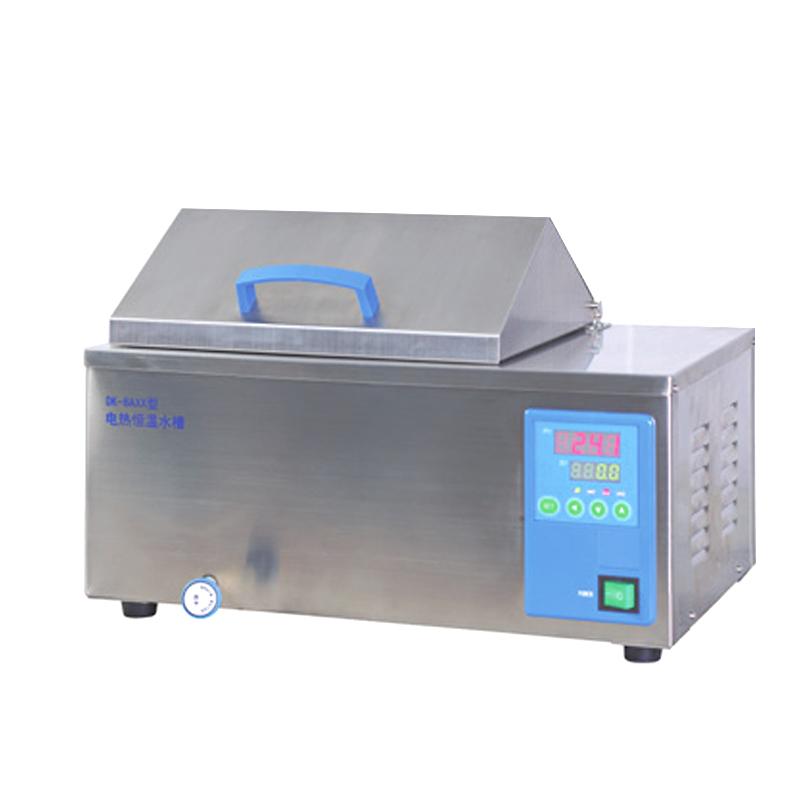

YIHENG DK-8AB Thermostatic water Bath, thermostatic circulating water Tank, stainless steel liner 22L

Name: YIHENG DK-8AB Thermostatic water Bath, thermostatic circulating water Tank, stainless steel liner 22L
Brand: YiHeng
SKU: NB003976
Price: 477.0 USD
Availability: InStock

$ 477.00Ex works

Equipped with electromagnetic pump to achieve internal and external circulation, temperature control accuracy +/- 0.3 ℃, support 1-5999 minutes timing and over-temperature sound and light alarm function, optional multi-stage programming to simplify complex experimental process.

Model

DK-8AB

Get Quote

Category : Thermostatic Bath

Brand : YiHeng

SKU : NB003976

Service :The delivery and service By NBCLab.Com

Overview

YIHENG DK-8AB electric thermostatic circulating water tank is an electric thermostatic circulating water tank with electromagnetic pump and stainless steel shell. The input Power is 1000W, the resolution is 0.1 ℃, and the volume is 22L. The product adopts stainless steel liner, digital display screen, microcomputer control, and has timing function.

Features

1. Digital display, microcomputer control, with timing function. 2. Adopt stainless steel liner. Appearance is novel and beautiful. 3. Over-temperature sound and light tracking alarm to ensure reliable protection of the sample.

Principle

The product realizes temperature adjustment through microcomputer PID Control mode, and adopts internal/external circulation mode to ensure thermostatic environment.

Applications

Universities & colleges, industrial and mining enterprises, R & D institutions

Steps

1. Connect the power supply. 2. Set the required temperature and time parameters. 3. Start the device for thermostatic operation.

Notice

• Power supply voltage meets AC220V 50HZ requirements before use. • Pay attention to the over-temperature alarm function and deal with abnormal situations in time. • Regularly check the operating status of the equipment to ensure safe use.

Temperature Range
5~70℃
Temperature Fluctuation
±0.3℃
Temperature resolution
0.1℃
Tank Volume
22L
Temperature control mode
Microcomputer PID control
Pump circulation method
Internal/external circulation
Total Power
1000W
Timer Range
1~5999min
Power supply Voltage
AC 220V 50HZ
Dimension
660*340*200mm
Tank Size
500*300*150mm
Net weight of the whole machine
14Kg
The gross weight of the whole machine
16Kg
packing Size
630*420*390mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
