Overview

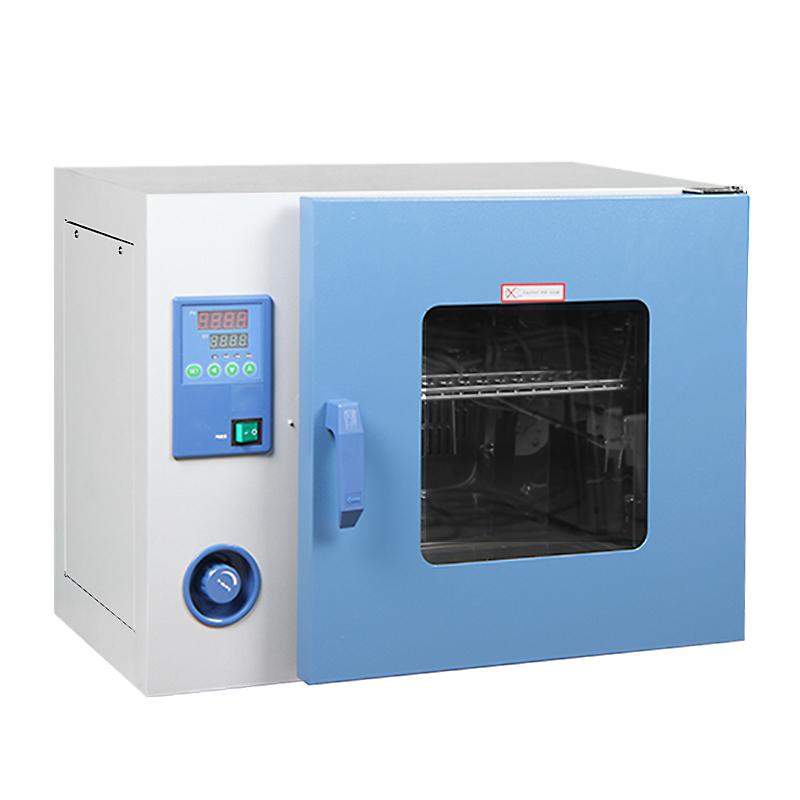

YIHENG DHG-9023A small blast drying oven is a laboratory blast drying oven with input Power of 850W. It adopts a microcomputer PID temperature controller and has a timing function to ensure the accuracy and Reliability of operation. The equipment controls the Temperature range of RT + 10~ 220 ℃, which is suitable for drying, baking wax melting and sterilizing operations in industrial and mining enterprises, laboratories, R & D institutions and other places.
Features
1. The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of high-quality steel plate, which is beautiful and novel in appearance.
2, equipped with over-temperature deviation protection, digital display microcomputer P.I.D temperature controller, with timing function, accurate and reliable temperature control.
3. The hot air circulation system consists of high temperature continuous operation fans and suitable air ducts to improve the Temperature uniformity in the working room.
4. Adopt a new type of synthetic silicon sealing strip, which can operate at high temperature for a long time, has a long service life and is easy to replace.
5. The intake and exhaust volume of the box can be adjusted from the temperature control panel.
6. Independent temperature limit alarm system (optional), which automatically interrupts when the temperature exceeds the limit to ensure the safety of the experiment.
7. Optional printer or RS485 interface is available for connecting to a printer or computer to record temperature parameter changes.
Principle
The drying oven precisely adjusts the temperature through a microcomputer PID temperature controller, combined with a hot air circulation system, which is continuously operated by the fan and the air duct at high temperatures to ensure an even distribution of temperature in the working room. The user can adjust the air intake and exhaust volume from the panel to achieve an efficient drying, baking or sterilizing process.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
1. Connect the power supply (AC 220V 50Hz).
2. Set the required temperature (RT + 10~ 220 ° C) through the microcomputer PID temperature controller.
3. Adjust the intake and exhaust volume as required.
4. Start the equipment for drying, baking or sterilizing operations.
5. Optional timing function to set the running time (1 to 5999 minutes).
6. Monitor the operating status to ensure safety.
Notice
• Power supply voltage meets AC 220V 50Hz requirement before use.
• During operation, pay attention to the temperature setting not exceeding 220 ° C to avoid overheating.
• Regularly check the sealing strip and hot air circulation system to ensure normal operation.
• When selecting an independent temperature limit alarm system, it needs to be installed and tested correctly.
• Avoid use in humid or flammable environments to prevent accidents.
• When cleaning and maintaining, disconnect the power supply first to ensure safety.
