Overview

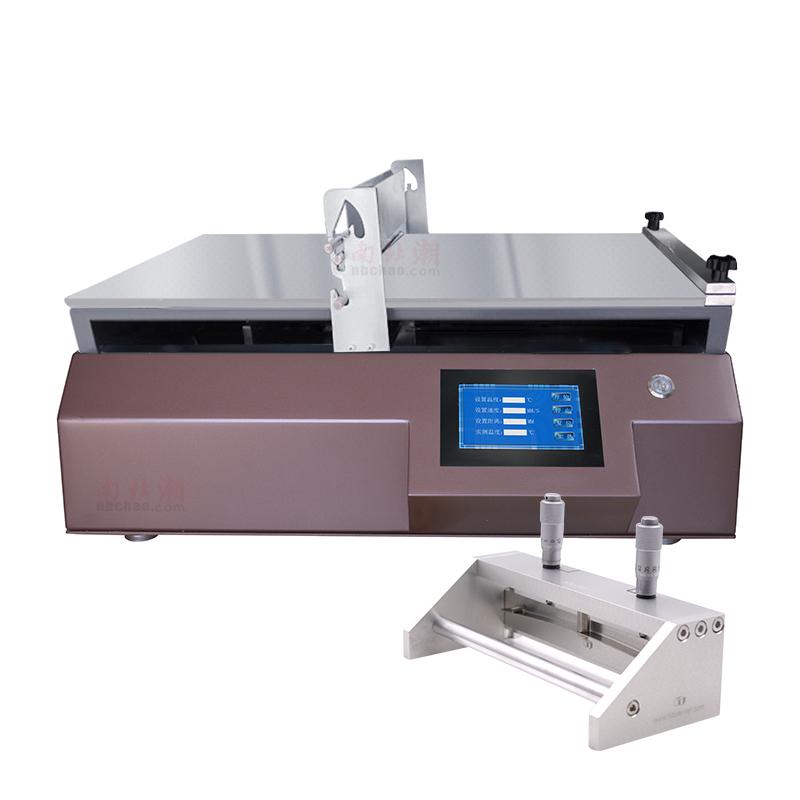

TBJ-GDO Automatic Film Applicator is a small experimental Spreader test equipment, using imported accessories to provide high-performance Spreader solutions at preferential prices. The equipment ensures the uniformity and smoothness of Spreader coating by precisely controlling the speed and stable pressure of the Spreader, effectively solves the problem of artificial film inconsistency, and significantly improves film reproducibility. It is widely used in multinational R & D institutions, universities and scientific research institutions.
Features
1. Using imported accessories, reliable performance
2. Excellent price and high cost performance
3. Spreader accuracy, up to +/- 10μm
4. Spreader thickness range, 0~ 5000μm
5. Adjustable coating speed, 5~ 200mm/s (< 5mm/s can be customized)
6. Large effective coating area, 400 * 300mm (can be customized)
7. Vacuum chuck fixed to ensure the stability of the substrate
8. Touchscreen control, easy to operate
9. Infinitely variable speed control
10. Optional accessories and customization
Principle
Automatic Film Applicator achieves accurate wet-film Spreader by controlling the speed of the Spreader and the steady pressure applied to the drawdown blade. Vacuum chuck is used to fix the substrate to ensure that the substrate does not move during the Spreader process, thus ensuring the uniformity and conformity of the Spreader, which greatly improves the reproducibility of the film.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare substrate and place in Vacuum chuck area
2. Set Spreader parameters (speed, thickness, etc.) through Touchscreen
3. Start the Device for Auto Spreader
4. Remove the sample after completing the Spreader
Notice
• Make sure the power supply is 220V 50HZ before use
• Check Vacuum chuck before Spreader
• Optional silicone pad and weight according to substrate thickness to adjust pressure
• Customized functions need to be confirmed in advance
• Keep the equipment clean to avoid impurities affecting the Spreader effect
