Overview

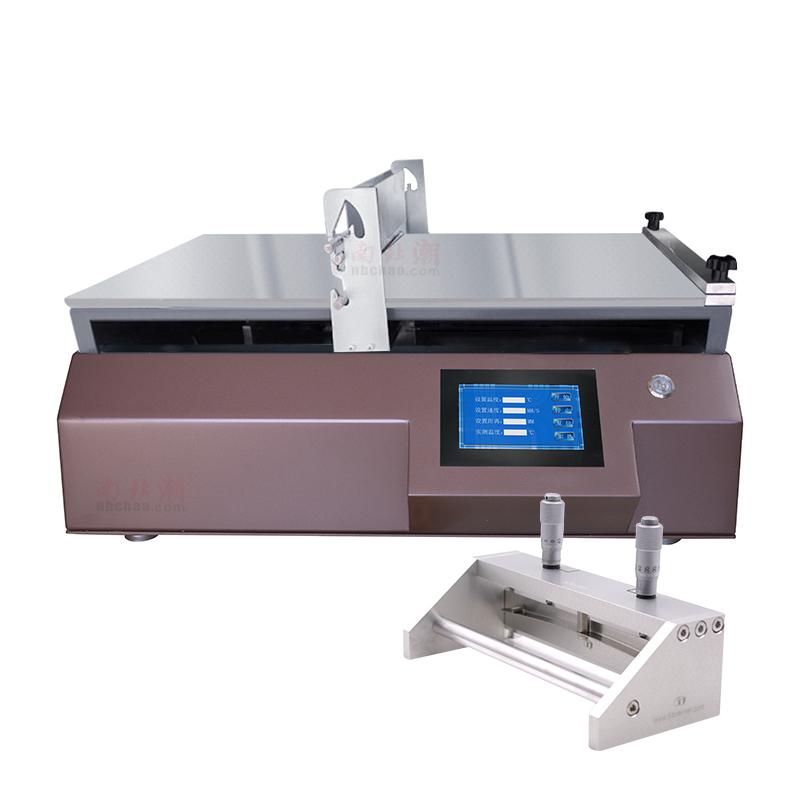

TBJ-GDH Automatic Film Applicator is a small Spreader test equipment for China experiments. It adopts imported accessories and has excellent price advantages. It is favored by multinational R & D institutions, well-known universities and scientific research institutions at home and abroad. The equipment ensures the uniformity and smoothness of Spreader coating by precisely controlling the speed and stable pressure of the Spreader, effectively solves the problem of artificial film inconsistency, and significantly improves the film reproducibility.
Features
1. Using imported accessories, cost-effective
2. Touch screen control, easy to operate
3. Infinitely variable speed control, range 5~ 200mm/s (< 5mm/s can be customized)
4. Split scraper design, Spreader accuracy +/- 10μm
5. Spreader Film thickness range 0~ 5000μm, wide applicability
6. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃
7. baseplate heating method, uniform heating
8. Mechanical fixture, reliable base material fixation
9. A variety of optional accessories and customization functions, with strong scalability
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses a scraper Spreader mode, which is driven by a motor to move the scraper at a uniform speed within a set stroke. At the same time, the substrate is heated by heating the baseplate to ensure the uniformity and conformity of the intermediate coating film during the Spreader process.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions, Coatings R & D laboratories, Adhesive testing, coating performance research
Steps
1. Prepare the substrate and fix it on the mechanical fixture
2. Set Spreader speed, stroke and heating temperature according to requirements
3. Install the appropriate scraper and adjust the Spreader Film thickness
4. Start the Device for Auto Spreader
5. After completion, take out the sample for subsequent processing
Notice
• Make sure the equipment is placed horizontally before use, and optional fine-tuning horizontal height support foot device
• Select the appropriate weight according to the substrate Film thickness to ensure Spreader uniformity
• Pay attention to temperature control when heating to avoid overheating
• Regularly clean the scraper and baseplate to keep the equipment clean
• Customized functions require advance confirmation of technical parameters and compatibility
• Avoid touching moving parts during operation to ensure safety
