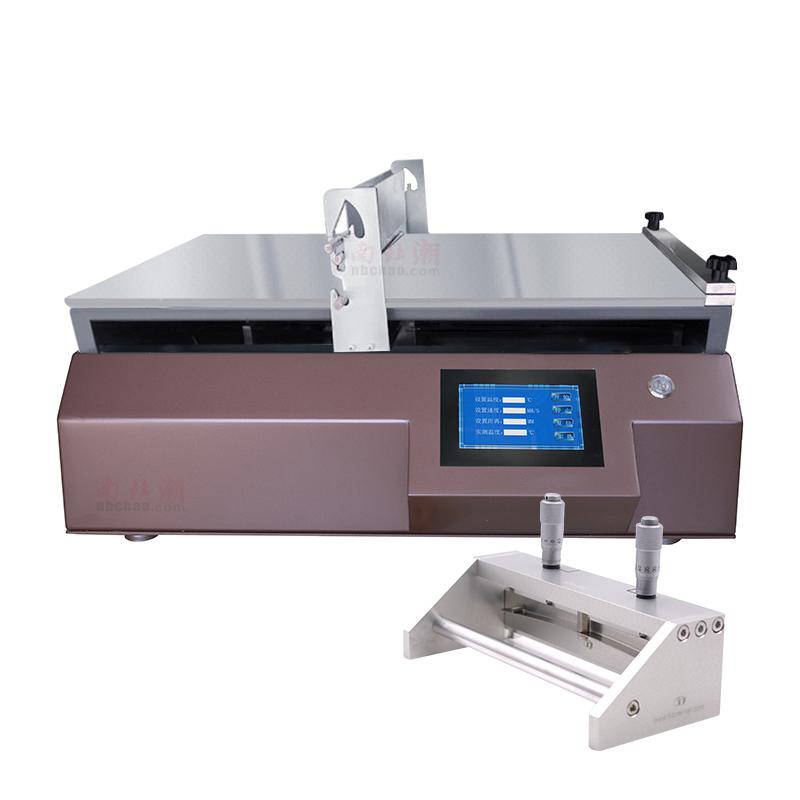

China TBJ-GDHO Automatic Film Applicator Spreader accuracy +/- 10μm vacuum adsorption heating

Name: China TBJ-GDHO Automatic Film Applicator Spreader accuracy +/- 10μm vacuum adsorption heating
Brand: zy
SKU: NB039856
Price: 3323.0 USD
Availability: InStock

$ 3323.00Ex works

Adopt imported accessories to ensure Stability, Spreader speed 5-200mm/s adjustable, vacuum adsorption fixed substrate, scraper Spreader accuracy of +/- 10μm, support heating temperature to 180 ℃ to improve film mass.

Model

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB039856

Service :The delivery and service By NBCLab.Com

Overview

TBJ-GDHO Automatic Film Applicator is a small Lab Film Applicator in China. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, domestic and foreign universities and scientific research institutions. The equipment ensures the uniformity and smoothness of Spreader's gluing by controlling the speed and stable pressure, solves the problem of artificial film inconsistency, and significantly improves the film reproducibility.

Features

1. Using imported accessories, the price is good and cheap 2. Spreader accuracy up to +/- 10μm 3. Spreader Film thickness range 0~ 5000μm adjustable 4. Spreader speed 5~ 200mm/s (< 5mm/s can be customized) 5. Heating Temperature range RT +~ 180 ℃, accuracy +/- 3 ℃ 6. Infinitely variable speed control 7. Touch screen control operation 8. Vacuum adsorption substrate fixing method 9. Optional with a variety of accessories and customized functions

Principle

Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The use of a scraper Spreader method, combined with vacuum adsorption to fix the substrate, ensures that a uniform wet-film is Spreader on different substrates, which greatly improves the reproducibility and conformity of the film.

Applications

R & D Institutions, University Laboratories, Scientific Research Institutions, Coatings Industry, Adhesive Industry

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Spreader mode
Adjustable scraper
Scraper Type
Split scraper
Spreader accuracy
±10μm
Spreader Film thickness Range
0~5000μm
Spreader Width
200Mm (optional 300mm)
Scraper material
aluminum alloy
Scraper Size
214*76*100mm
Scraper weight
500g
Spreader rate
5-200mm/s (< 5mm/s can be customized)
Spreader format
300 * 400Mm (Miscellaneous Size can be customized)
Spreader distance control
The number can be set arbitrarily within the Range of 1-400mm
Vacuum adsorption Size
300 * 400Mm (can be customized according to customer requirements)
Temperature Range
RT+~180℃
Temperature accuracy
±3℃
Heating method
Baseplate heating
vacuum aperture
Φ1.2mm
Vacuum hole spacing
20*20mm
Vacuumpump Size
380*180*280mm
power supply
Voltage 220V 50HZ
Dimension
630*410*520mm
Net weight
65kg
speed control
Infinitely variable speed
Bottom plate material
aluminum alloy
Substrate clamping method
Vacuum adsorption
Control mode
Touch screen control
Optional accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader
