Overview

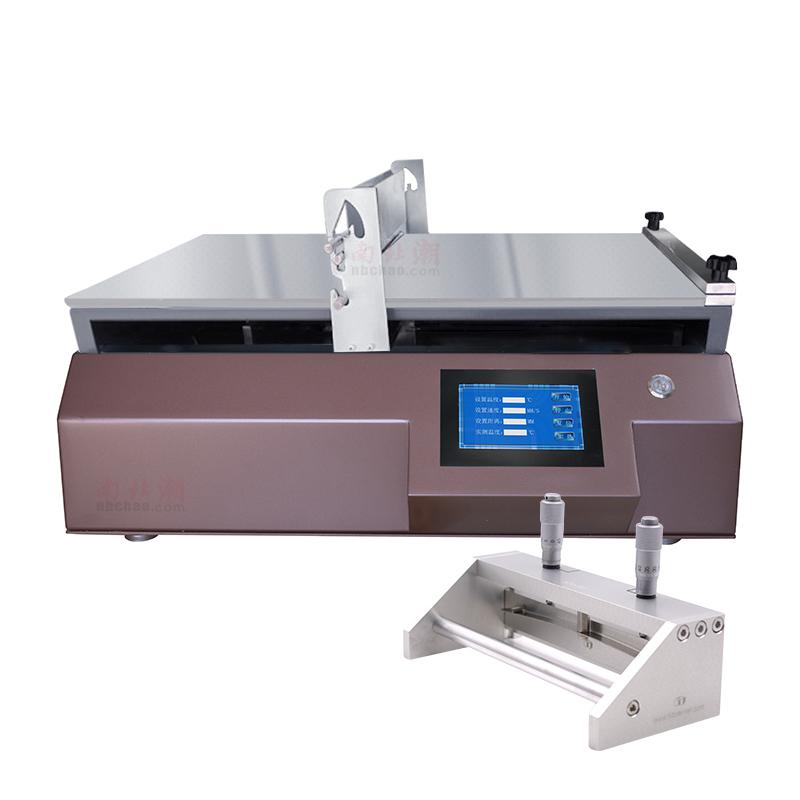

TBJ-GDH-GCXB Automatic Film Applicator is a small experimental Spreader test equipment with imported accessories, which has excellent cost performance. The equipment ensures the uniformity and smoothness of Spreader coating by precisely controlling the speed and stable pressure of the Spreader, solves the problem of artificial film inconsistency, and significantly improves the film reproducibility.
Features
1. Using imported accessories, excellent cost performance
2. Support Wire Stick + Scraper Dual Spreader
3. Spreader speed range 5~ 200mm/s, support stepless variable speed control
4. Spreader Film thickness range 0~ 5000μm, accuracy +/- 10μm
5. Spreader accuracy up to +/- 0.001mm
6. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃
7. Touch screen control, easy to operate
8. Support a variety of customized functions and optional accessories
Principle
The automatic Film Applicator achieves uniform Spreader by precisely controlling the Spreader speed and the steady pressure applied to the film applicator. The device uses a stepless transmission system to control the Spreader rate. The substrate is fixed by a mechanical fixture, and the precise film process is completed within the preset Spreader stroke to ensure that the precise wet-film is Spreader on different substrates.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the Spreader substrate and fix it on the mechanical fixture
2. Select the Wire Bar or Spreader Method according to your needs
3. Set parameters such as Spreader rate and Spreader travel on the touch screen
4. If heating is required, set the heating temperature
5. Start the Device for Auto Spreader
6. Remove the sample after completing the Spreader
Notice
• The power supply of the device is 220V 50HZ, please make sure the power supply matches
• Spreader Film thickness should be determined according to the bar model
• Check whether the substrate is firmly fixed before use
• Pay attention to high temperature protection during heating operation
• Regularly clean and maintain equipment to ensure accuracy
• Customized functions need to confirm technical parameters in advance
