Overview

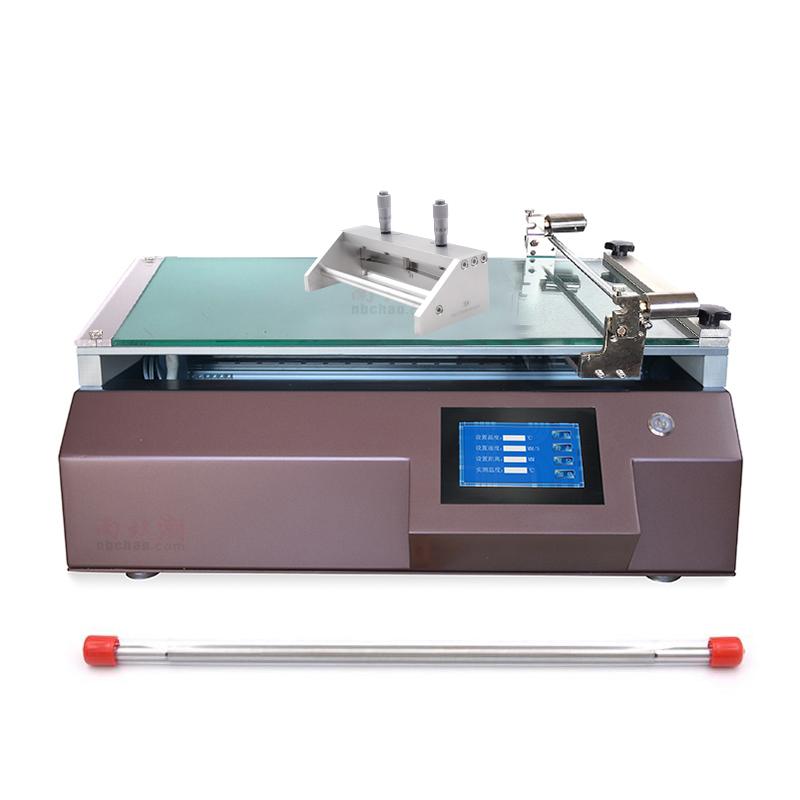

The experimental small Lab Film Applicator adopts imported accessories, which is cheap and favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the uniformity and smoothness of the Spreader coating are guaranteed, the problem of artificial film inconsistency is solved, and the film reproducibility is improved. Standard 1 China wire rod and 1 imported wire rod, the film accuracy of the imported wire rod is as high as 1μm.
Features
1. Using imported accessories, the price is good and cheap; 2. Control speed and stable pressure to ensure the uniformity and smoothness of Spreader; 3. Improve film reproducibility and reduce manual differences; 4. Standard China and imported wire bars, imported wire bars accuracy up to 1μm; 5. Spreader methods are diverse, including wire bars and scraper; 6. Spreader rate is adjustable, range 5~ 180mm/s; 7. Effective Spreader area is large, up to 400 * 300mm; 8. Touch screen control, easy operation; 9. Optional accessories are rich, support customized functions.
Principle
Automatic Film Applicator ensures the Stability and uniformity of the Spreader process by controlling the speed of the Spreader and the pressure applied to the film applicator. Using the wire rod and scraper Spreader method, the mechanical fixing fixture is used to fix the substrate to achieve accurate film, reduce the difference caused by human factors, and improve the coating conformity.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and fix it on the mechanical fixture; 2. Select the Spreader mode (wire rod or scraper) and set the parameters; 3. Set the Spreader rate and travel through the touch screen; 4. Start the device for automatic Spreader; 5. Remove the sample after completing the Spreader.
Notice
• Ensure that the power supply is 220V/50HZ; • Check whether the substrate is fixed firmly before Spreader; • Select the appropriate Spreader Film thickness and rate according to needs; • Maintain imported accessories regularly to maintain accuracy; • Follow the operation guide when using Optional accessories.
