Overview

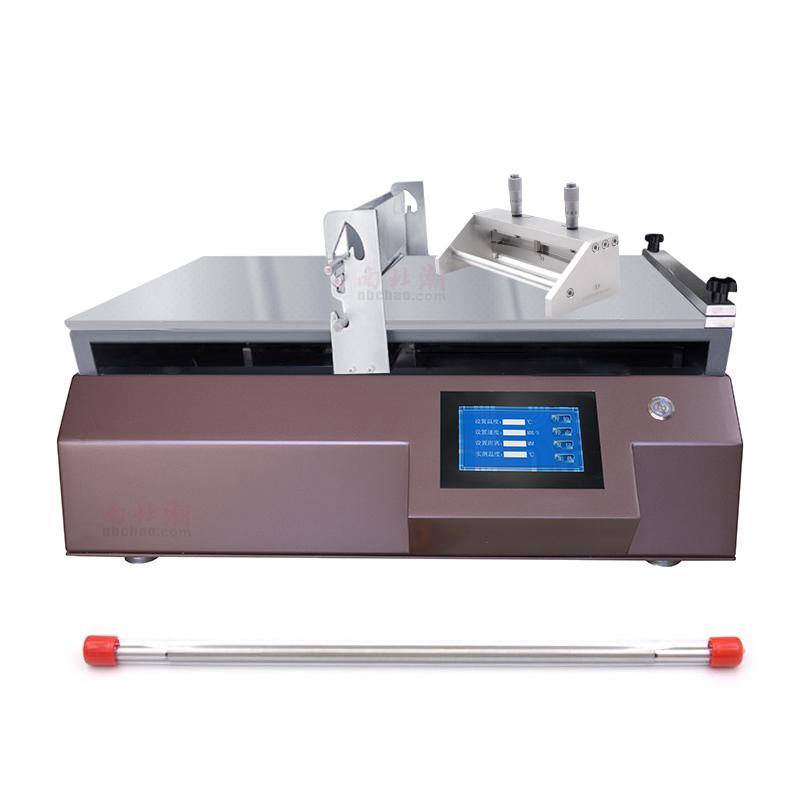

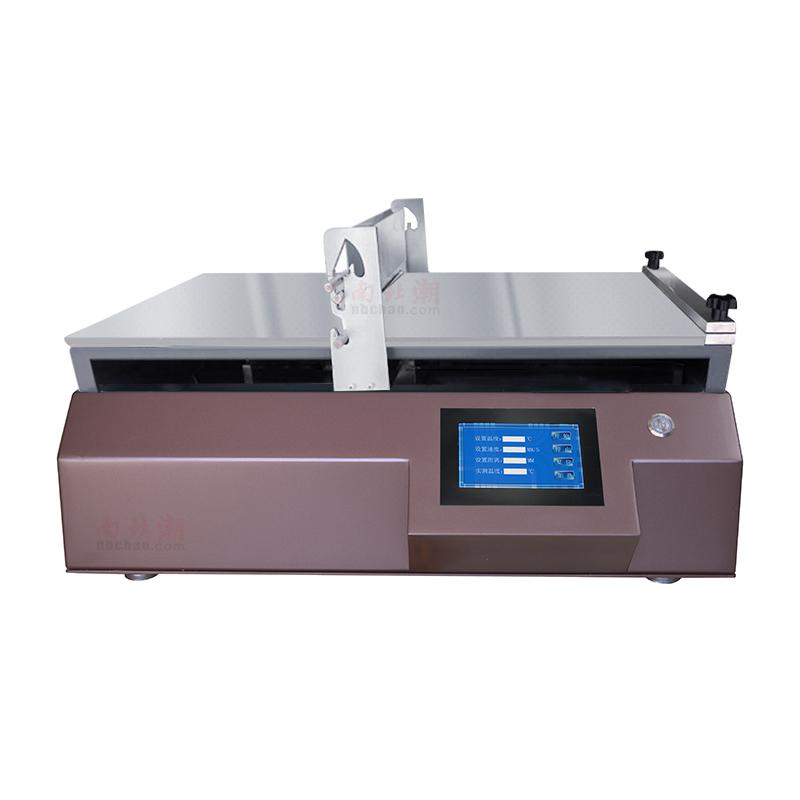

The experimental small Lab Film Applicator is all imported accessories, and the price is cheap, which is favored by many multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the gluing effect of the Spreader is guaranteed, and the uniformity and stability of the Spreader are ensured. This Automatic film applicator comes standard with an imported wire rod with an accuracy of up to 1μm.
Features
1. Using imported accessories, the price is good and cheap
2. Standard High Accuracy imported wire rod (accuracy 1μm)

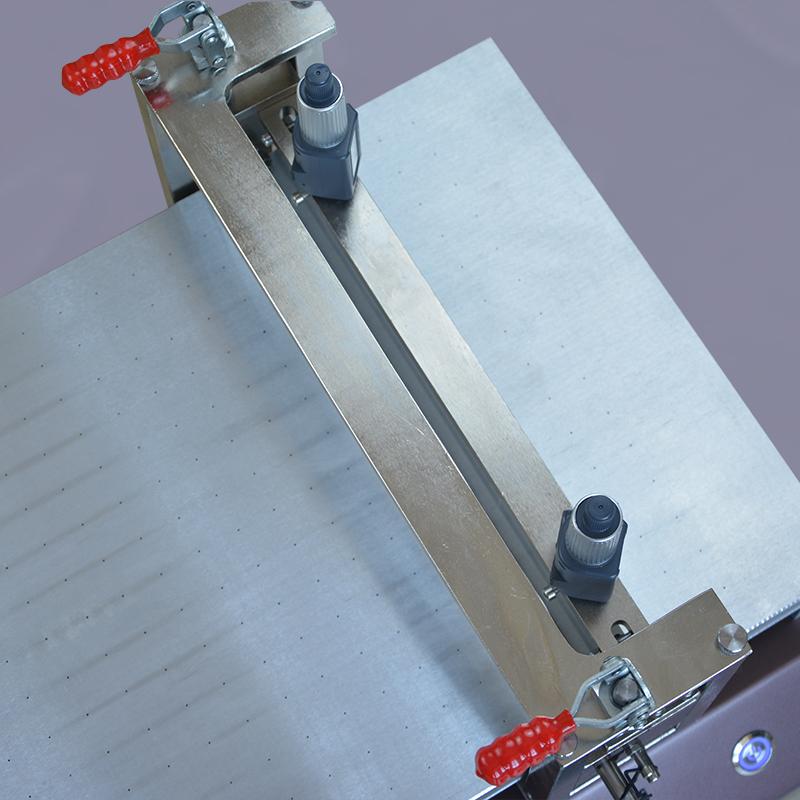

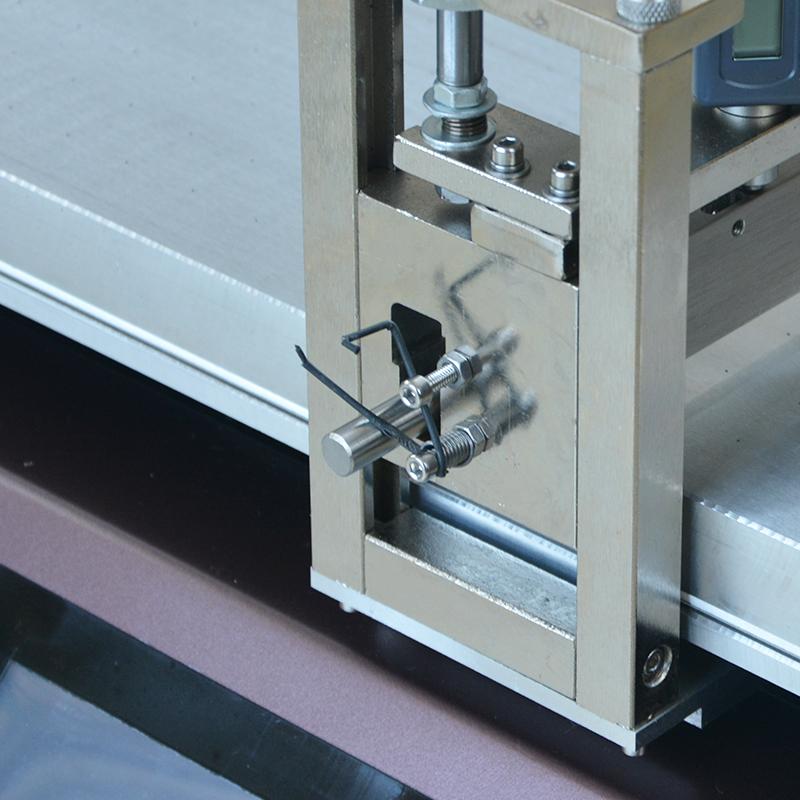

3. Support Wire Bar + Scraper Dual Spreader
4. Spreader accuracy +/- 10μm, Film thickness range 0~ 5000μm
5. Spreader accuracy +/- 0.001mm, Film thickness range 1~ 571.5μm
6. Spreader rate 5~ 200mm/s (< 5mm/s can be customized)
7. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃

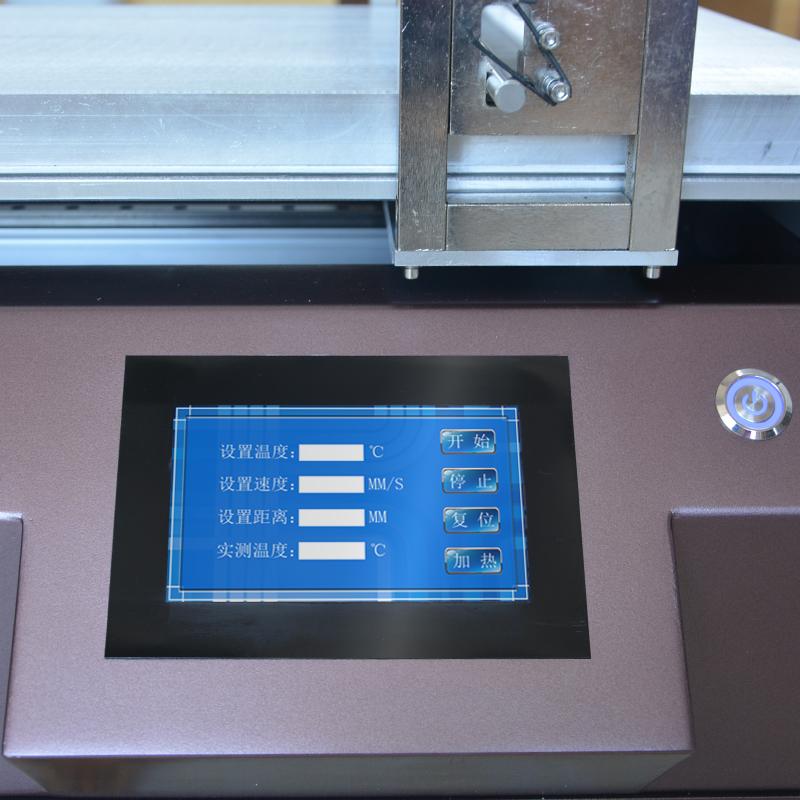

8. Touch screen control, infinitely variable speed
9. Optional accessories and customizable functions
Principle
By controlling the speed of the Spreader and applying stable pressure, the uniformity and smoothness of the Spreader coating are ensured. The baseplate heating method is used to provide a uniform temperature environment, and the substrate is fixed by mechanical fixing fixtures to achieve accurate Spreader operation.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the substrate and fix it with mechanical fixtures
2. Select the Wire Bar or Spreader Method according to your needs
3. Set Spreader parameters (speed, travel, temperature, etc.) on the touchscreen
4. Start the device for Spreader operation
5. Remove the sample after completing the Spreader
Notice
• Spreader Film thickness range should be determined according to the selected bar model
• Spreader width 200mm or 300mm
• Spreader area is 400 * 300mm (customizable)
• Heating Temperature Uniformity +/- 3 ℃
• Host power requirements 220V 50HZ 1700W
• Optional accessories such as leakage tank and substrate fixing fixture
• Support a variety of customization functions such as automatic lame plating, UV curing, etc
